Network bridge
- CC-Link IE TSN - CC-Link Bridge Module
-

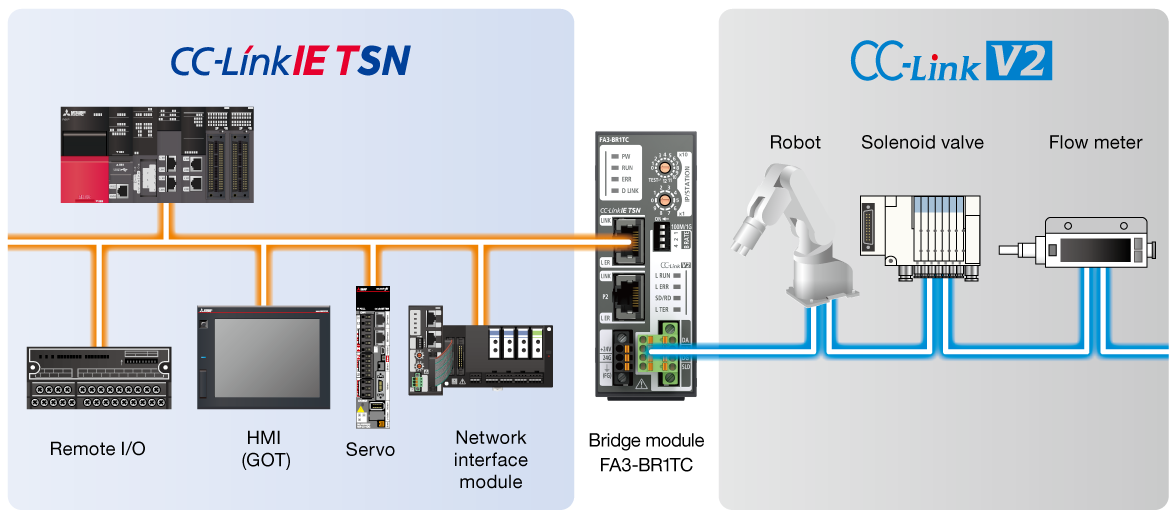

- Control CC-Link devices from CC-Link IE TSN devices
- ・CC-Link master not required
・Control devices not in the CC-Link IE TSN lineup

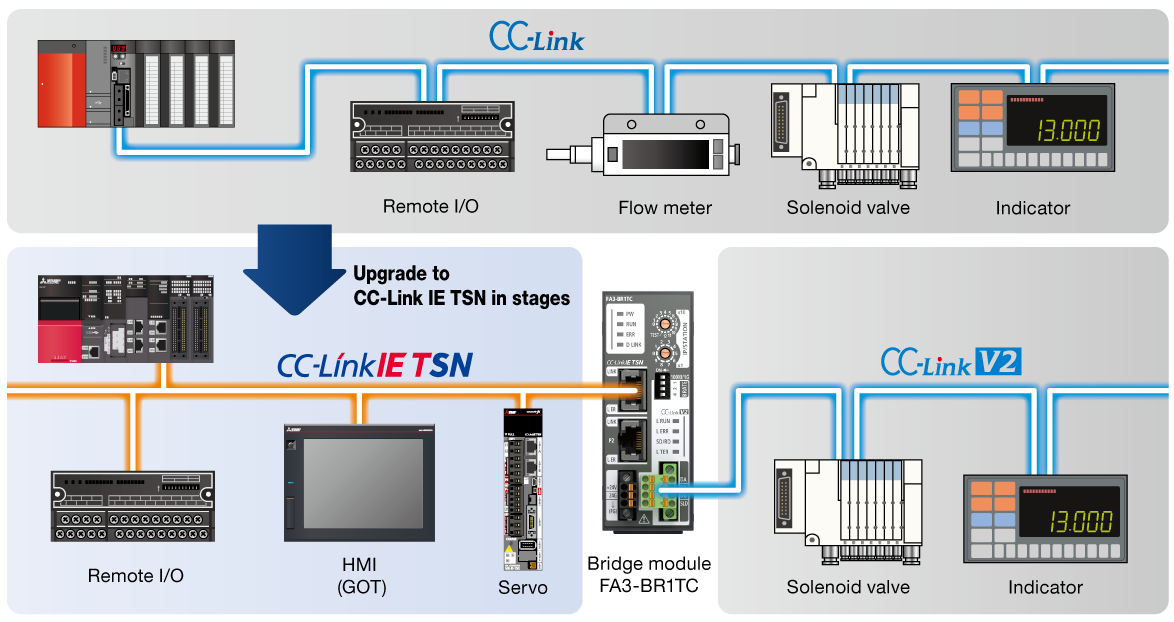

Gradual replacement to CC-Link IE TSN
-
- Use existing devices, wiring, and operation data
-
・Using existing devices and wiring helps to cut costs and reduce construction time.
・Reusing devices reduces plastic usage.
・Collect new line/facility data and inspect it with MELSOFT GEMINI (a Mitsubishi Electric product).
・Reuse old line or facility operation data for new lines/facilities.
Setup support
Simple configuration using our engineering tool
There is no need to setup multiple engineering tools and configure individual settings.
CC-Link IE TSN and CC-Link devices can be configured with one tool.
- ■STEP 1 Startup tool
- Startup GX Works3 (a Mitsubishi Electric product).

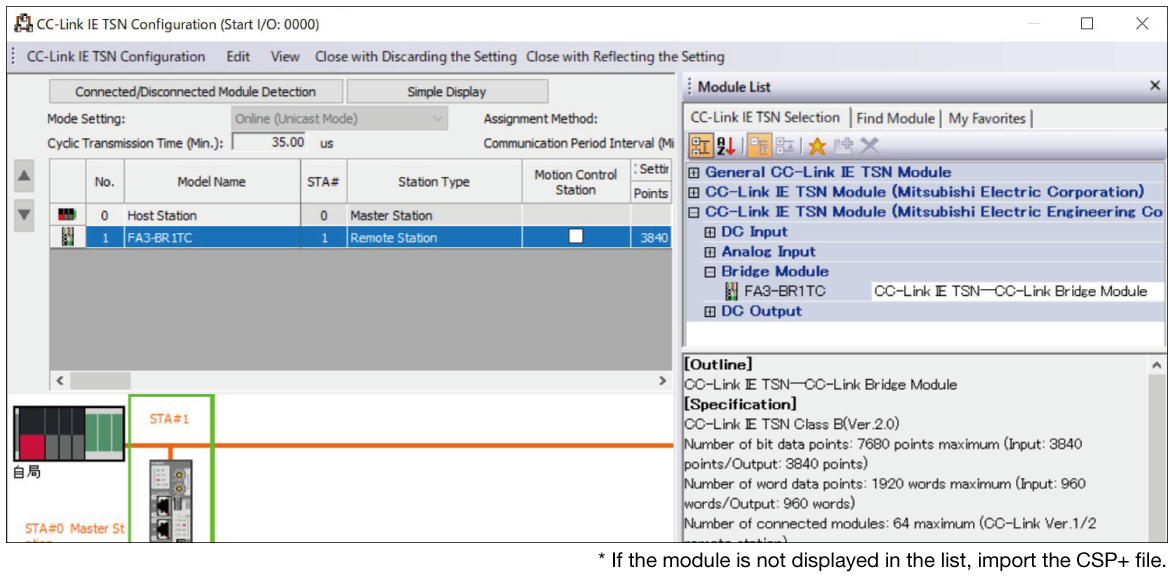

- ■STEP 2 Add modules

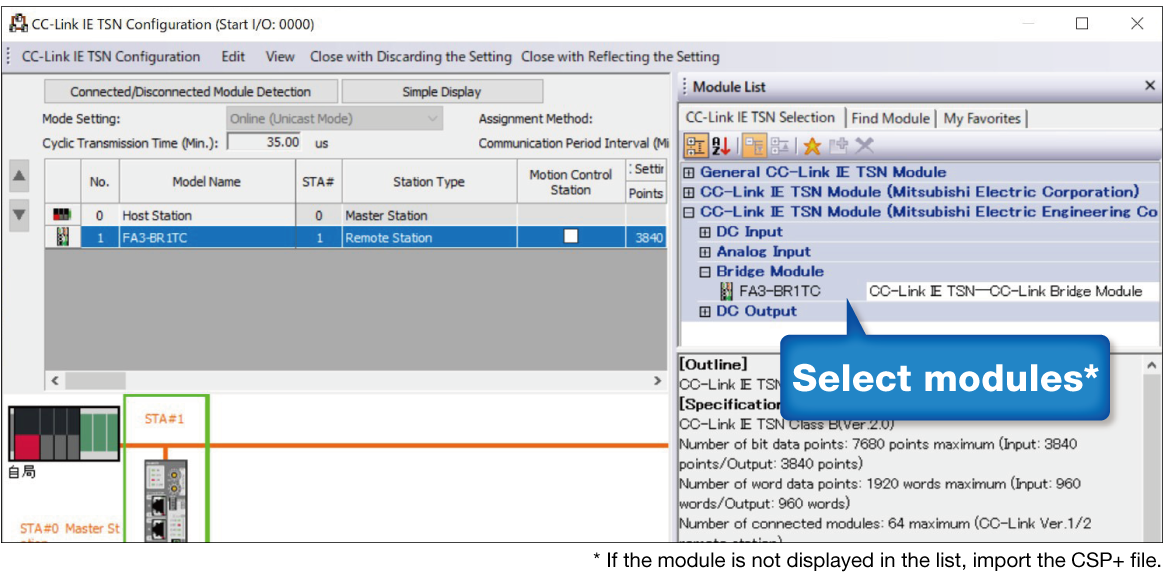

- Select modules from the "Module List" in the "CC-Link IE TSN Configuration" window.

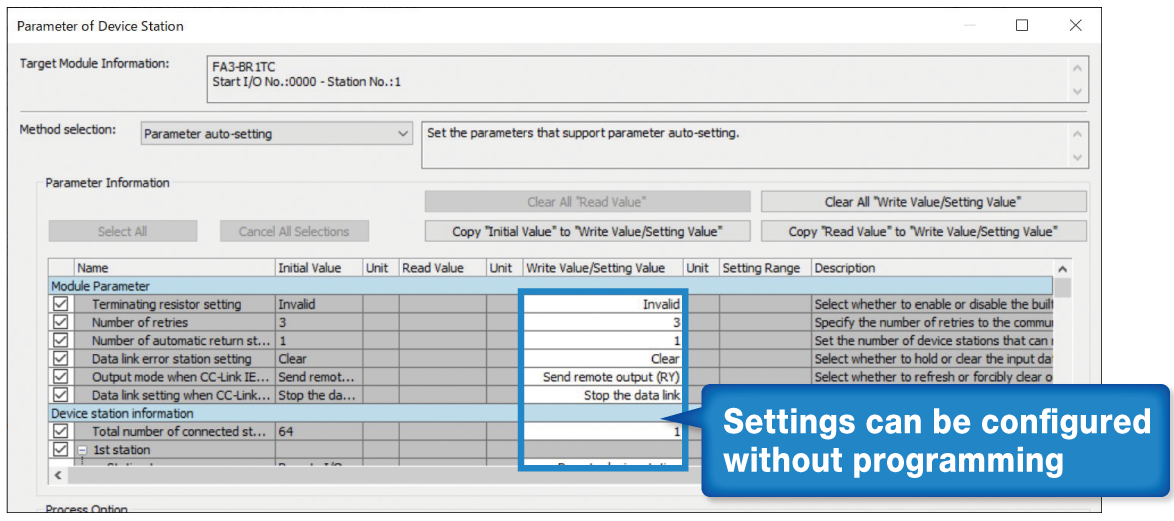

- ■STEP 3 Parameter settings
- • CC-Link IE TSN and CC-Link parameters can be configured without any programming.
• There is no need to setup multiple engineering tools.
• The automatic detection function of the CC-Link system is supported.
Network status check with the engineering tool
- ■STEP 1 Startup tool
- Startup GX Works3 (a Mitsubishi Electric product).
- ■STEP 2 Display the Configuration window

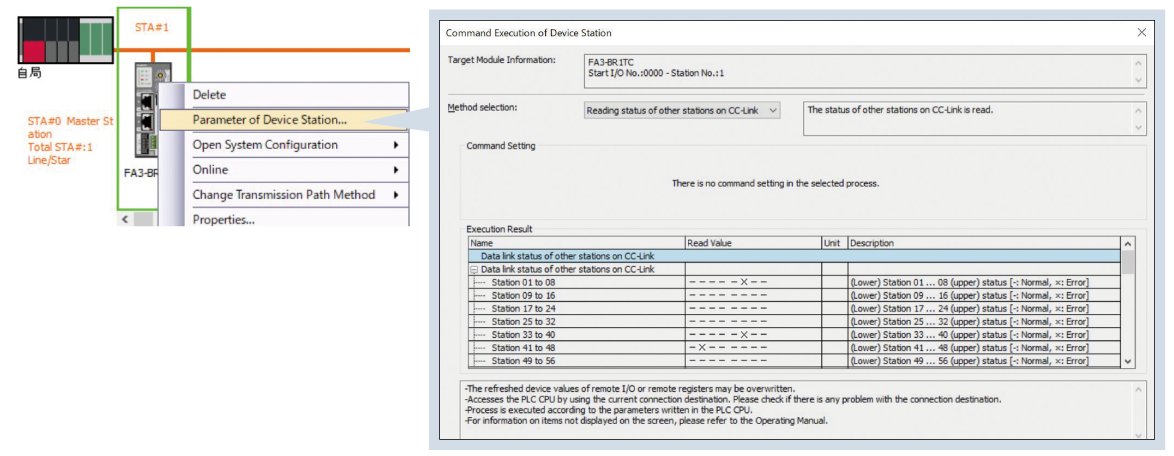

- ■STEP 3 Check the connection status
- Display the "CC-Link IE TSN Configuration" window and check the network connection status in the "Command Execution of Device Station" window.

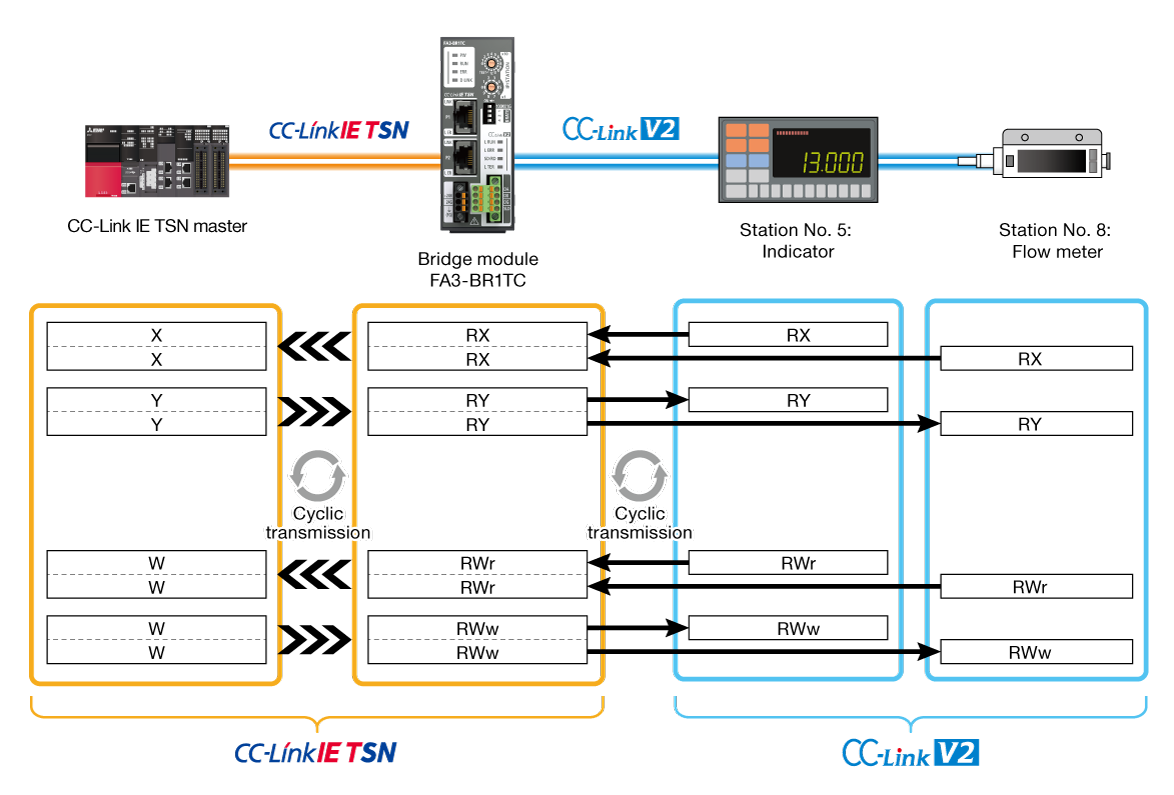

Data communication between CC-Link IE TSN and CC-Link
Both CC-Link word data and bit data can be read/written to and from the CC-Link IE master station.
Function List
Click here for more informationModel list
*You can scroll the table below to the right.
| Model name | Product name |
|---|---|
| FA3-BR1TC | CC-Link IE TSN - CC-Link Bridge Module |
