Open network connection
(FL-net interface module)

MELSEC iQ-R series programmable controllers manufactured by Mitsubishi Electronic are available for building the FL-net (OPCN-2) system.

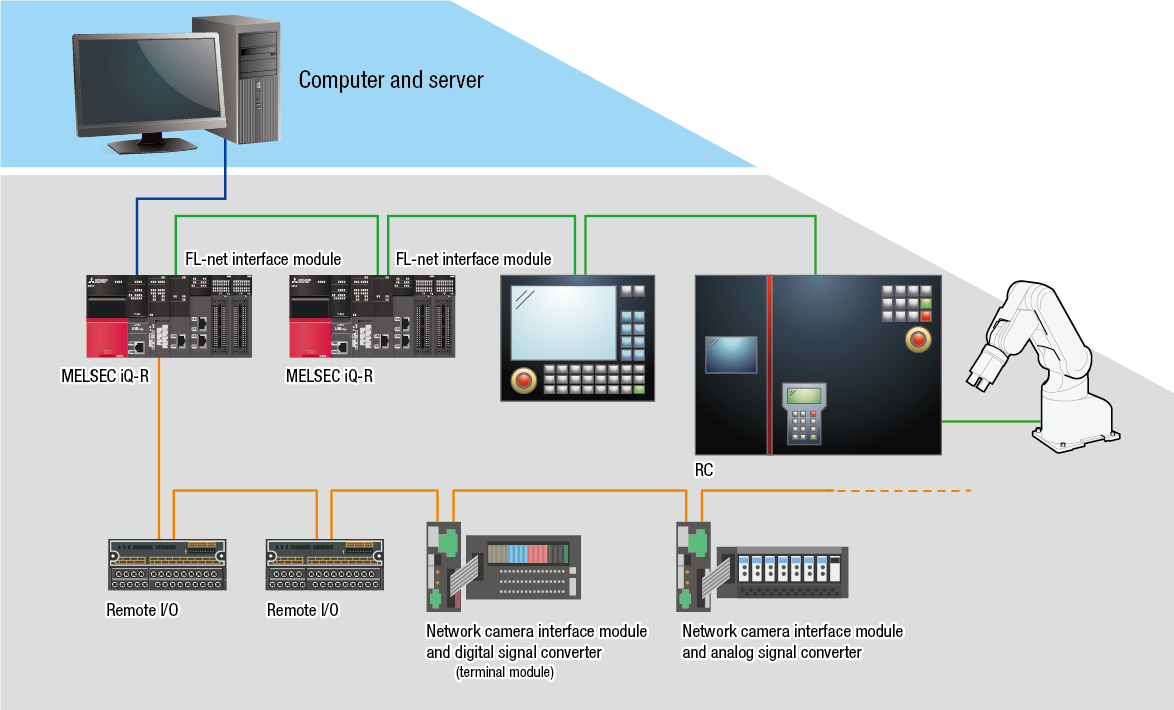

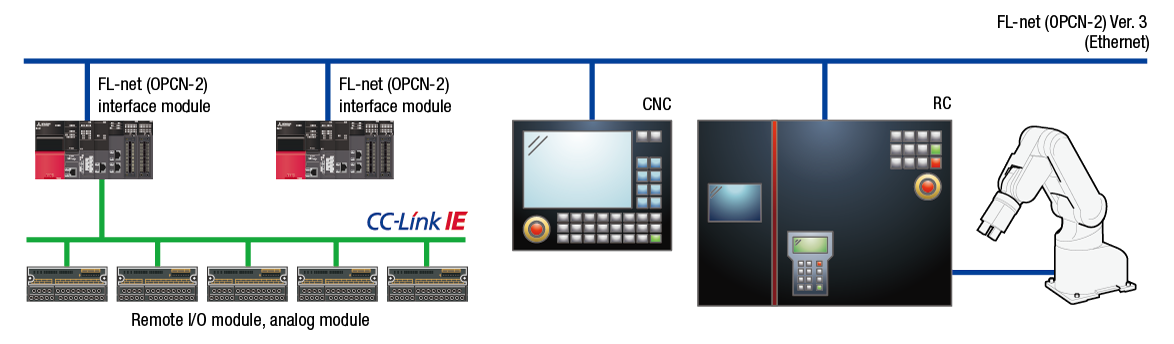

The FL-net (OPCN-2) can be interconnected to devices, such as programmable controllers, computerized numerical controllers (CNC), and personal computers which are manufactured by different manufacturers, providing control and monitoring.


Easy system start-up

The module supports the functions of Mitsubishi Electric GX Works3, making users' programming easier.

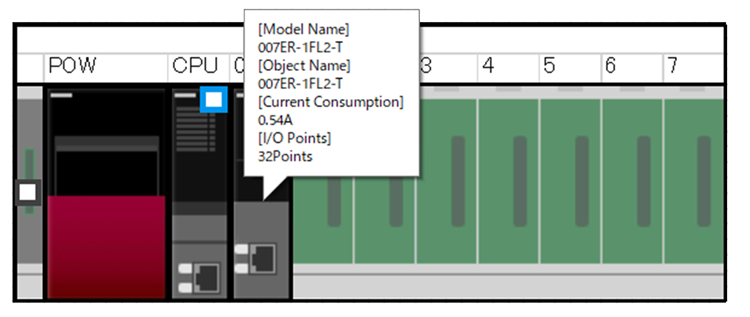

  • Initial setting on GUI
    • Graphically configurable initial setting
    • Module assignments by dragging and dropping

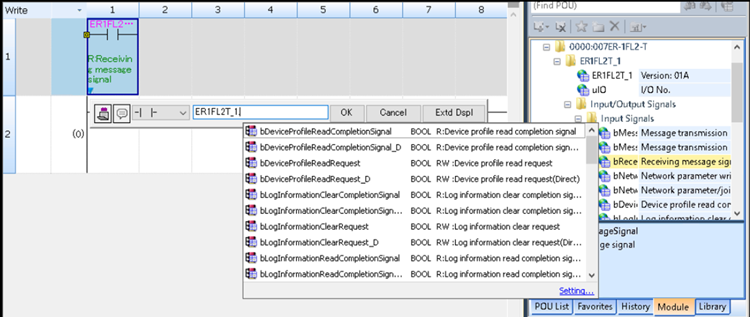

  • Module label
    • Label programming supported
    • Device and buffer memory address selection from the list
    • Ladder editor input supported
    • Auto-tracking of module assignments

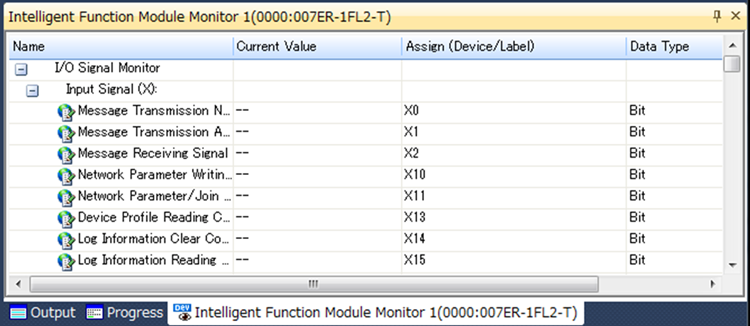

  • Intelligent function module monitor
    • Display of device assignment and current value
    • Available for start-up and troubleshooting

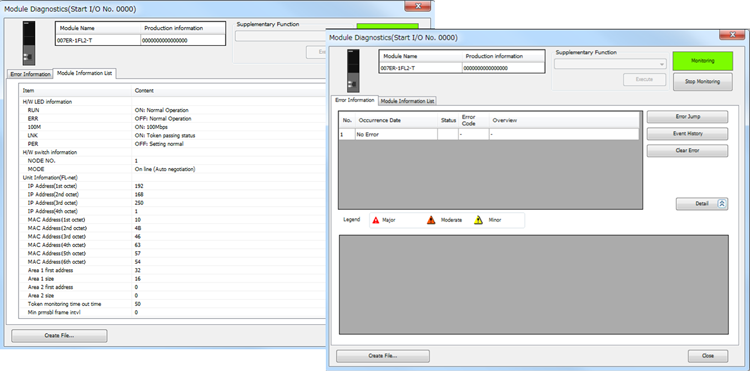

  • Module diagnostics
    • Display of module status on GX Works3
    • Display of error code details
    • Same operation as the Mitsubishi Electric MELSEC iQ-R series modules

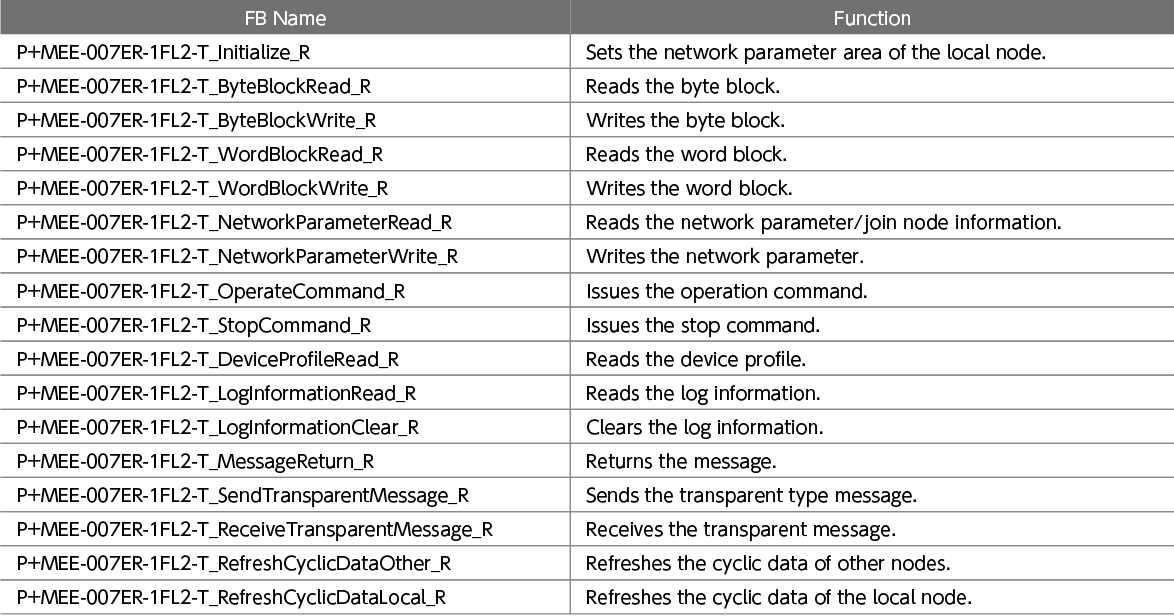

Module FB (function block)
• Module FBs available for basic functions (17 types)
• Easier programming
• English and Japanese supported
* Module FBs and the reference manual can be download on our website.

Two communication functions to match the application

Data communications on FL-net (OPCN-2) are performed by either cyclic transmission or message transmission.

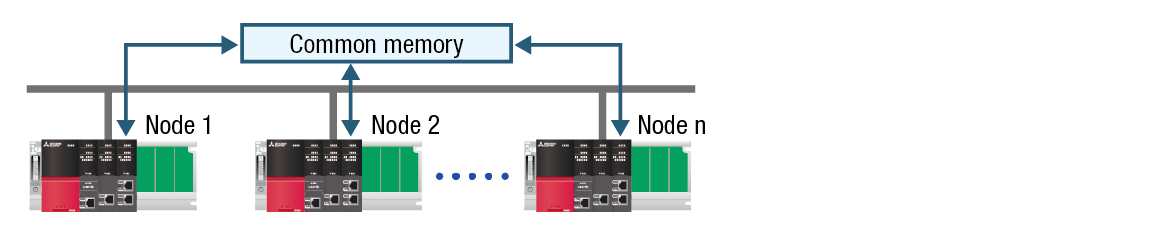

Cyclic transmission
Each node is linked to common memory and data can be shared.

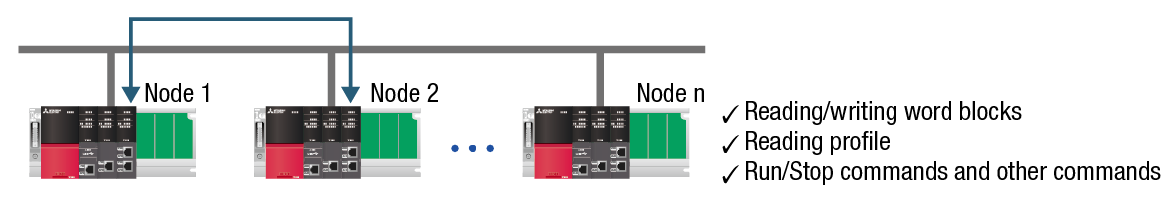

Message transmission
Specific data is communicated as it is required.

Masterless and large-scale network

Masterless method enables users to connect/disconnect each node to/from the network at any time without affecting communications of other nodes.
Users can freely power on/off any node, perform maintenance, and connect a maximum of 254 devices*1.
*1: 249 devices can be used as control devices. The other five devices are used for failure diagnostics.


Model list

FL-net (OPCN-2) interface module

Model Name
ER-1FL2-T MELSEC iQ-R series-compatible FL-net (OPCN-2) interface module
