Features
-
- Product overview:

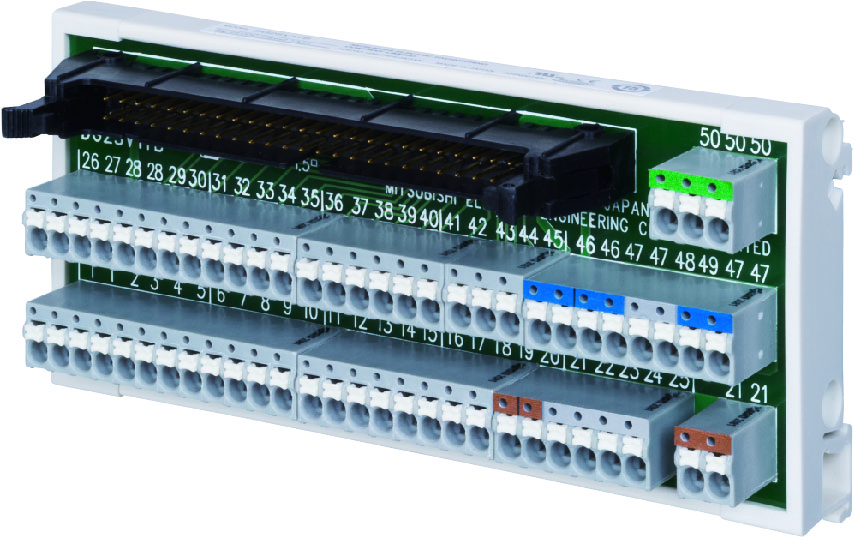

- Servo amplifier junction terminal block
- Merit.1
- With the adoption of the spring clamp type terminal block, the footprint reduces about 40% smaller than the screw type terminal block.
- Merit.2
- Cable with the dedicated connector is possible to wire easily.
- Merit.3
- Using a spring clamp terminal block removes the need for tightening screws periodically, thus problems such as loose screws and the loosening of screws due to vibration are eliminated.
- Merit.4
- When using multiple axes, transition wiring between terminal blocks for interface power supplies is available up to four terminal power supplies.
- Merit.5
- Our SSCNET-compatible hydraulic control unit is also available.
| Sales status | On sale |
|---|
Basic specifications
| Item | Specifications | |
|---|---|---|
| Model | DG2SV1TB | |
| Category | Time and wire saving devices | |
| Connected device | servo amplifier | |
| Series of connected devices | MELSERVO-J5 | |
| MELSERVO-J4 | ||
| SSCNET-compatible hydraulic control unit | ||
| Product category | Junction terminal block for servo amplifier | |
| Terminal block type | Spring clamp terminal type | |
| Delivery date | - | |
Specifications
General specifications
| Item | Specifications | |
|---|---|---|
| Ambient temperature | Operation | 0 to 55°C (non-freezing) |
| Storage | -20 to 65°C (non-freezing) | |
| Ambient humidity | Operation | 90%RH or less (non-condensing) |
| Storage | 90%RH or less (non-condensing) | |
| Ambience | Indoors (no direct sunlight), free from corrosive gas, inflammable gas, oil mist, dust, and dirt | |
| Altitude | 2000m or less above sea level | |
| Vibration resistance | 5.9m/s2, 10 to 55Hz (in X, Y and Z directions) | |
Product specifications
| Item | Specifications | |
|---|---|---|
| Connected servo ampifiier | MR-J5-A（-RJ）、MR-J4-A（-RJ）、MR-J4-03A6（-RJ）、MR-J4-_DU_A（-RJ）、MR-D01(Extension I/O unit) | |
| Connection cable for servo amplifier | Sink/source common type：Standard | DG4SV1CB** |
| Connected SSCNET-compatible hydraulic control unit | DG2AF3N(-P01) | |
| Connection cable for SSCNET-compatible hydraulic control unit | Sink/source common type | DG4AF3CB** |
| External power supply | Voltage | 24VDC+-10% |
| Current capacity | 1A (max) | |
| Terminal block | Number of terminals | Number of terminals: 60, number of cables per terminal: 1 |
| Applicable wire | 0.2 to 1.5mm2 (AWG 24 to 16), sheath: φ2.8mm or less | |
| Wire strip length | 8 to 9mm (Maximum wire sheath outer diameter: φ 2.8mm or less) | |
| Unit mounting | DIN rail | Applicable DIN rail: TH35-7.5Fe, TH35-7.5Al (IEC60715 compliant) |
| Compliance with global standards | UL standard | UL61800-5-1 |
| Mass (g) | Approx. 80 | |
External Dimensions・Product CAD Data
External Dimensions
N/A
| Name | Filename |
|---|
Product CAD Data
| Name | Filename |
|---|---|
| Dimensions（CAD 2D） | sales_fa_meefan_dg2sv1tb.dxf（3MB） |
Wiring diagrams and connection examples・Note
Wiring diagrams and connection examples
N/A
| Name | Filename |
|---|
Other Technical Information
N/A
| Name | Filename |
|---|
Precautions for use
N/A
| Name | Filename |
|---|
Catalogs・New Product Releases
* The table can be scrolled to the right.
| Name | Language | Document No. | Release date |
|---|---|---|---|
| Spring Clamp Junction Terminal Blocks for Mitsubishi Electric AC Servo Systems（3MB） | English | MEIC191E_206-A | July 2023 |
| FA Goods General Catalog Digest edition（23MB） | English | MEIC198E_209-C | October 2025 |
| FA关联产品 综合目录 摘要版（23MB） | Simplified Chinese | MEIC199C_209-C | October 2025 |
| FA Goods General Catalog Time and Wire Saving Devices（82MB） | English | MEIC202E_20Z-F | October 2025 |
Manual
* The table can be scrolled to the right.
| Name | Language | Document No. | Release date |
|---|---|---|---|
| User's Manual (Detailed)（1MB） | English | 50EN-070184E-C | June 2023 |
