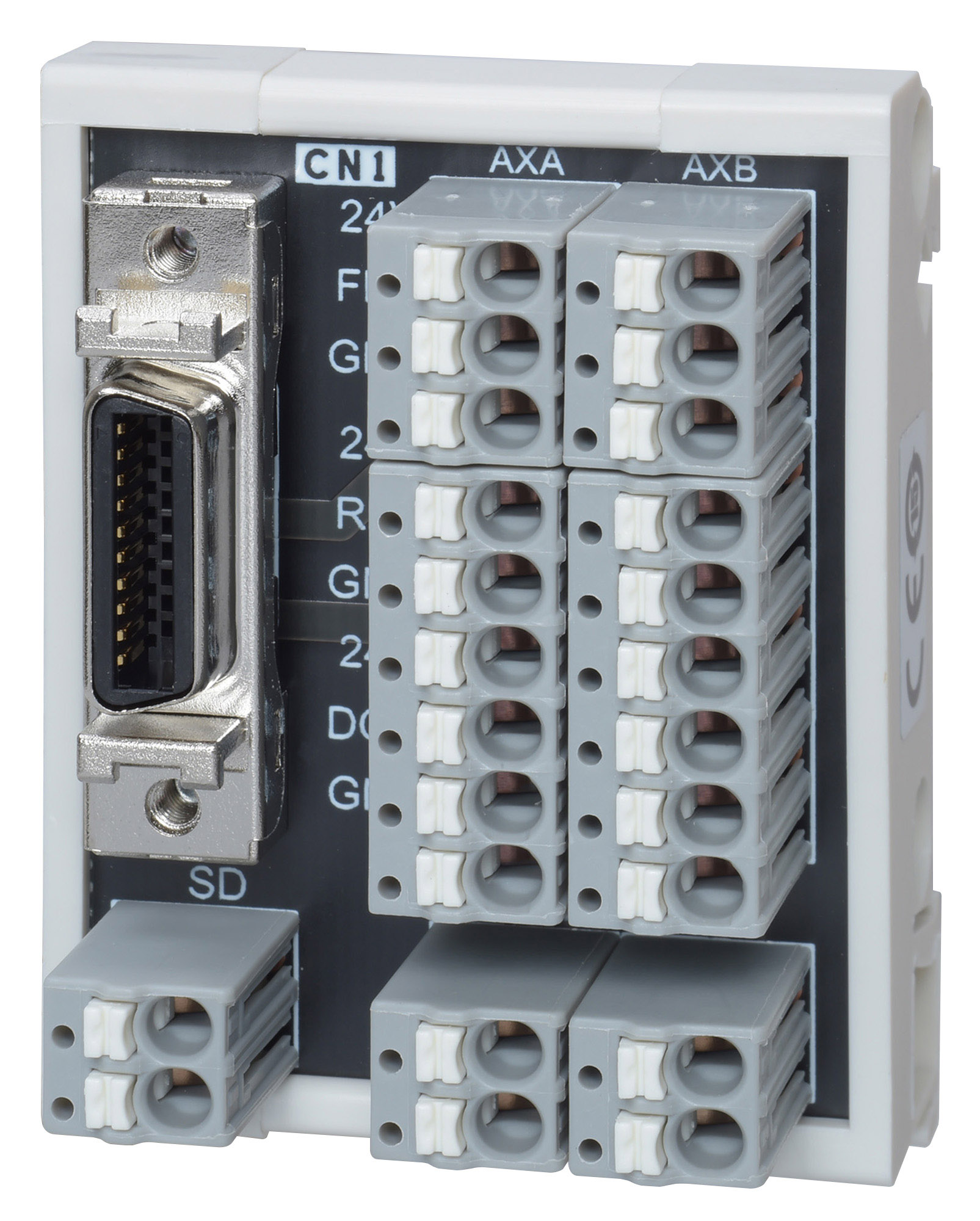

- FLS/RLS/DOG signal-specialized network amplifier terminal block(For 2-axis)
DG2SV2TB2
- Features
- Specifications
- External Dimensions・
Product CAD Data - Wiring diagrams and connection examples・
Note - Catalogs・
New Product Releases - Manual
- Technical information
（Technical News） - Downloads
- Video
- Related products
Features
-
- Product overview:
- Servo amplifier junction terminal block
- Merit.1
- Easy to wire stroke limit and proximity dog signals
- Merit.2
- The terminal blocks are designed specifically for the FLS, RLS, and DOG signals, downsizing the installation area.
- Merit.3
- The sensor lead wires can be directly connected to the terminal block installed near a mechanical section.
- Merit.4
- Using a spring clamp terminal block removes the need for tightening screws periodically, thus problems such as loose screws and the loosening of screws due to vibration are eliminated.
- Merit.5
- When using multiple axes, transition wiring between terminal blocks for interface power supplies is available 6A maximum.
- Merit.6
- Using a long length, high flex life cable allows installation in the mechanical section or on movable parts.
| Sales status | On sale |
|---|
Basic specifications
| Item | Specifications | |
|---|---|---|
| Model | DG2SV2TB2 | |
| Category | Time and wire saving devices | |
| Connected device | servo amplifier | |
| Series of connected devices | MELSERVO-J5 | |
| MELSERVO-J4 | ||
| Product category | Junction terminal block for servo amplifier | |
| Terminal block type | Spring clamp terminal type | |
Specifications
General specifications
| Item | Specifications | |
|---|---|---|
| Ambient temperature | Operation | 0 to 55°C (non-freezing) |
| Storage | -20 to 65°C (non-freezing) | |
| Ambient humidity | Operation | 5 to 90%RH (non-condensing) |
| Storage | 5 to 90%RH (non-condensing) | |
| Ambience | Indoors (no direct sunlight), free from corrosive gas, inflammable gas, oil mist, dust, and dirt | |
| Altitude | 2000m or less above sea level | |
| Vibration resistance | 5.9m/s2, 10 to 55Hz (in X, Y, and Z directions) | |
Product specifications
| Item | Specifications | |
|---|---|---|
| Connected servo ampifiier | MR-J5W2-G, MR-J5W2-B, MR-J4W2-B, MR-J4W2-0303B | |
| Connection cable for servo amplifier | Sink wiring：Standard | DG4SV3CB** |
| Sink wiring：High flex life | DG4SV3CB**H | |
| Source wiring：Standard | DG4SV3CB**-P01 | |
| Source wiring：High flex life | DG4SV3CB**H-P01 | |
| External power supply | Voltage | 24VDC +-10% |
| Maximum current | Signal: 0.5A, common line: 6A | |
| Terminal block | Number of terminals | 24 terminals, 1 wire per terminal |
| Applicable wire | 0.2 to 1.5 mm2 (AWG 24 to 16), sheath: φ2.8mm or less | |
| Wire strip length | 8 to 9mm (Maximum wire sheath outer diameter: φ2.8mm or less) | |
| Unit mounting | DIN rail | Applicable DIN rail: TH35-7.5Fe, TH35-7.5Al (IEC 60715 compliant) |
| Compliance with global standards | UL standard | UL61800-5-1 |
| Mass (g) | Approx. 40 | |
External Dimensions・Product CAD Data
External Dimensions
N/A
| Name | Filename |
|---|
Product CAD Data
| Name | Filename |
|---|---|
| Dimensions（CAD 2D） | sales_fa_meefan_dg2sv2tb2.dxf（3MB） |
Wiring diagrams and connection examples・Note
Wiring diagrams and connection examples
N/A
| Name | Filename |
|---|
Other Technical Information
N/A
| Name | Filename |
|---|
Precautions for use
N/A
| Name | Filename |
|---|
Catalogs・New Product Releases
* The table can be scrolled to the right.
| Name | Language | Document No. | Release date |
|---|---|---|---|
| Spring Clamp Junction Terminal Blocks for Mitsubishi Electric AC Servo Systems（3MB） | English | MEIC191E_206-A | July 2023 |
| FA Goods General Catalog Digest edition（23MB） | English | MEIC198E_209-C | October 2025 |
| FA关联产品 综合目录 摘要版（23MB） | Simplified Chinese | MEIC199C_209-C | October 2025 |
| FA Goods General Catalog Time and Wire Saving Devices（82MB） | English | MEIC202E_20Z-F | October 2025 |
Manual
* The table can be scrolled to the right.
| Name | Language | Document No. | Release date |
|---|---|---|---|
| User's Manual (Detailed)（1MB） | English | 50JS-050012E-C | June 2023 |
