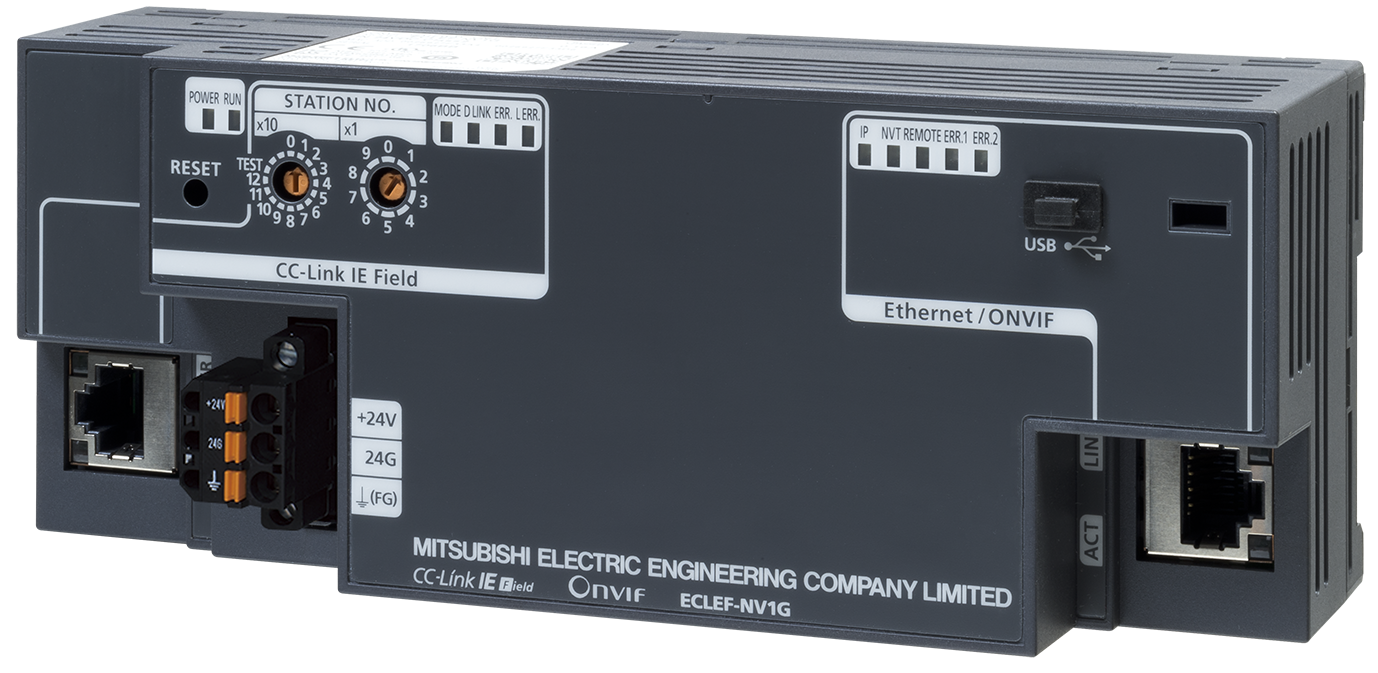

- Network camera interface module ( No. of devices to be registered: 4 )
ECLEF-NV1G-04
- Features
- Specifications
- External Dimensions・
Product CAD Data - Wiring diagrams and connection examples・
Note - Catalogs・
New Product Releases - Manual
- Technical information
（Technical News） - Downloads
- Video
- Related products
Features
-
- Product overview:
- Camera shooting directions can be changed while checking images on the screen of the HMI (GOT).
- Merit.1
- Recording can be controlled by triggering the camera detection function or facility sensor.
- Merit.2
- Images can be sent from multiple cameras (maximum 16) to the HMI (GOT) or general-purpose monitor, and displayed images can be switched.
- Merit.3
- Error messages or other messages are given by voice using a network speaker.
- Merit.4
- The absolute temperature can be obtained as a numerical value from the thermal camera.
- Merit.5
- Error messages or other messages are given by voice using a network speaker.
- Merit.6
- Network devices can be controlled using HTTP (CGI control).
| Sales status | On sale |
|---|
Basic specifications
| Item | Specifications | |
|---|---|---|
| Model | ECLEF-NV1G-04 | |
| Category | Products for monitoring and traceability | |
| Connected device | Programmable controller | |
| Series of connected devices | CC-Link IE Field Network | |
| Product category | Camera monitoring | |
| Terminal block type | Network distributed type | |
| Delivery date | - | |
Specifications
General specifications
| Item | Specifications | |
|---|---|---|
| Operating ambient temperature | 0 to 55°C | |
| Storage ambient temperature | -25 to 75℃ | |
| Operating ambient humidity | 5 to 95%RH, no condensation | |
| Storage ambient humidity | 5 to 95%RH, no condensation | |
| Vibration resistance ( With intermittent vibration ) | 5～8.4Hz | Compliant with JIS B 3502 and IEC 61131-2 (147m/s2, three times in each direction of X, Y, and Z) |
| 8.4～150Hz | No corrosive gas, no flammable gas, and little conducting dust | |
| Vibration resistance ( With continual vibration ) | 5～8.4Hz | 0 to 2000m |
| 8.4～150Hz | In a control panel | |
| Shock resistance | Compliant with JIS B 3502 and IEC 61131-2 (147m/s2, three times in each direction of X, Y, and Z) | |
| Operating atmosphere | No corrosive gas, no flammable gas, and little conducting dust | |
| Operating altitude *1 | 0 to 2000m | |
| Installation location | In a control panel | |
| Overvoltage category *2 | II or lower | |
| Pollution degree *3 | 2 or lower | |
| Equipment class | ClassI | |
| Precautions | *1 Do not use or store the programmable controller under pressure higher than the atmospheric pressure of altitude 0m. Doing so may cause malfunction. |
|
| *2 This category indicates the section of the power supply to which the equipment is assumed to be connected between the public electrical power distribution network and the machinery within premises. | ||
| *3 This index indicates the degree to which conductive material is generated in terms of the environment in which the equipment is used. | ||
Product specifications
| Item | Specifications | |
|---|---|---|
| External power supply | Power supply specifications | 20.4 to 28.8VDC (24VDC-15%, +20%) (ripple ratio: within 5%) |
| Current consumption | 0.16A | |
| External dimensions | H | 70 mm (When the DIN rail hook is included: 75mm) |
| W | 180mm | |
| D | 50 mm (When the module power supply and terminal block for FG are included: 56mm) | |
| Weight | 0.33kg (including the module power supply and terminal block for FG) | |
| Ethernet/camera network | External interface | 10BASE-T/100BASE-TX/1000BASE-T (Auto negotiation、AUTO MDI/MDI-X) |
| Protocol | ONVIF Profile S (Compatible with ONVIF Core Spec Ver. 2.42、ONVIF Test Spec Ver.15.06)、 HTTP (GET/POST、BASIC/DIGEST)、TCP、UDP |
|
| CC-Link IE Field Network | Station type | Intelligent device station |
| RX/RY points | 96points、144points、160points (select according to the function to be used) | |
| RWr/RWw points | 96points、128points、256points、352points、448points (select according to the function to be used) | |
| Network device registration | Setting tool ( attached application ) | Windows 10 Home (32/64-bit)、Windows 10 Pro (32/64-bit) |
| GX Works2 ( parameter setting ) | Ver.1.591R or later | |
| GX Works3 ( parameter setting ) | Ver.1.061P or later | |
| Connection target model (manufactured by Mitsubishi Electric) | MELSEC iQ-R series ( master station ) | RJ71GF11-T2, RJ71EN71, R04ENCPU, R08ENCPU, R16ENCPU, R32ENCPU, R120ENCPU, RD77GF4, RD77GF8, RD77GF16, RD77GF32 |
| MELSEC-Q series ( master station ) | QJ71GF11-T2 | |
| MELSEC-L series ( master station ) | LJ71GF11-T2 | |
| GOT2000 series ( displaying images ) |
GOT2000 series (GT25/GT27 models、GT Designer3 Ver. 1.245F or later) | |
| Product line | Module | ECLEF-NV1G-04 |
| CD | Configuration tool, User's Manual (Detailed) in PDF format, USB device driver, CSP+ file | |
| Manual | User's Manual (Hardware) | |
External Dimensions・Product CAD Data
External Dimensions
| Name | Filename |
|---|---|
| Dimensions（35KB） | sales_fa_meefan_eclef-nv1g-04_outline_1.pdf |
Product CAD Data
Wiring diagrams and connection examples・Note
Wiring diagrams and connection examples
N/A
| Name | Filename |
|---|
Other Technical Information
N/A
| Name | Filename |
|---|
Precautions for use
N/A
| Name | Filename |
|---|
Catalogs・New Product Releases
* The table can be scrolled to the right.
| Name | Language | Document No. | Release date |
|---|---|---|---|
| FA Goods General Catalog Digest edition（23MB） | English | MEIC198E_209-C | October 2025 |
| FA关联产品 综合目录 摘要版（23MB） | Simplified Chinese | MEIC199C_209-C | October 2025 |
| FA Goods General Catalog Purpose-Specific Products（45MB） | English | MEIC204E_20Y-C | July 2024 |
Manual
* The table can be scrolled to the right.
| Name | Language | Document No. | Release date |
|---|---|---|---|
| User's Manual ( Hardware Edition )（771KB） | English | 50cm-d180205-H | September 2025 |
Technical information（Technical News）
N/A
* The table can be scrolled to the right.
| Name | Language | Document No. | Release date |
|---|
Downloads
N/A
Profile/module FB (function block)
| Name | Filename |
|---|
Control & Communication System Profile CSP+
| Name | Filename |
|---|
Sample program
| Name | Filename |
|---|
Video
Introduction of an application on air conditioning management using the Network Camera Interface Module. (ENGLISH)
-
Run time：, Resolution：, File size：182MB
Introduction of an Application for Robot Work Area Safety Management Using the Network Camera Interface Module (ENGLISH)
-
Run time：, Resolution：, File size：162MB
Introduction of an application for detecting bottles tipping over using the network camera interface module (ENGLISH)
-
Run time：, Resolution：, File size：186MB
