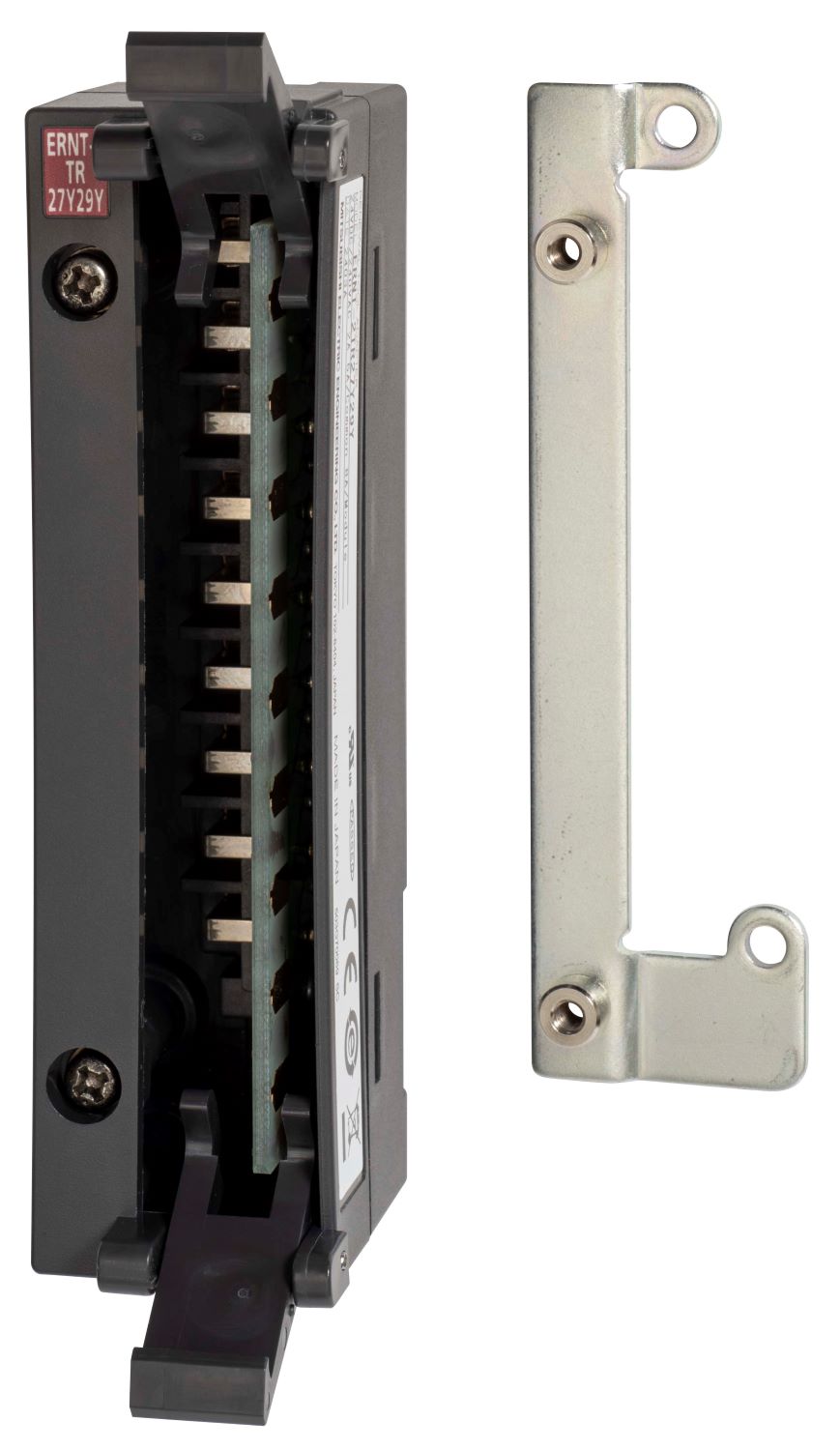

- TOYOPUC-PC10G/3J series → MELSEC iQ-R series : Conversion adapters
ERNT-2TR27Y29Y
- Features
- Specifications
- External Dimensions・
Product CAD Data - Wiring diagrams and connection examples・
Note - Catalogs・
New Product Releases - Manual
- Technical information
（Technical News） - Downloads
- Video
- Related products
Features
-
- Product overview:
- Upgrade tool products help users to replace an existing programmable controller with a new programmable controller. Since the wiring of the existing programmable controller is used as it is even after replacement, the work time and wiring errors can be reduced significantly.
- Merit.1
- An adapter to connect the TOYOPUC-PC10G/3J series existing wiring to a new (MELSEC iQ-R series) programmable controller
- Merit.2
- 1 slot type
| Sales status | On sale |
|---|
Basic specifications
| Item | Specifications | |
|---|---|---|
| Model | ERNT-2TR27Y29Y | |
| Category | Upgrade tool products | |
| Connected device | Programmable controllers | |
| Series of connected devices | MELSEC iQ-R | |
| Other PLCs | ||
| Product category | TOYOPUC-PC10G/3J series → MELSEC iQ-R series : Conversion adapter | |
| Slot type | 1 slot type | |
| Delivery date | - | |
Specifications
General specifications
| Item | Specifications | |
|---|---|---|
Product specifications
| Item | Specifications | |
|---|---|---|
| Product transition selection (1) | Before replacement(Terminal block 19 points):THK-2753,THK-2790 | |
| After replacement(Terminal block 18 points):RY40NT5P | ||
| Product transition selection (2) | Before replacement(Terminal block 19 points):THK-2931 | |
| After replacement(Terminal block 18 points):RY18R2A | ||
| Precautions | *1:Since the number of points per common changes (8 points/common → 16 points/common), check the common terminal connection of the module before replacement. | |
External Dimensions・Product CAD Data
External Dimensions
N/A
| Name | Filename |
|---|
Product CAD Data
N/A
| Name | Filename |
|---|
Wiring diagrams and connection examples・Note
Wiring diagrams and connection examples
| Name | Filename |
|---|---|
| Wiring Diagram | sales_fa_meefan_ernt-2tr27y29y_wiring_1.pdf（92KB） |
| Installation method | sales_fa_meefan_ernt-2tr27y29y_wiring_2.pdf（157KB） |
Other Technical Information
Precautions for use
Catalogs・New Product Releases
* The table can be scrolled to the right.
| Name | Language | Document No. | Release date |
|---|---|---|---|
| Easy Replacement from JTEKT TOYOPUC-PC10G/3J Series to Mitsubishi Electric MELSEC iQ-R Series（1005KB） | English | MEIC237E_249 | August 2024 |
Manual
* The table can be scrolled to the right.
| Name | Language | Document No. | Release date |
|---|---|---|---|
| User’s Manual（602KB） | English | 50D-FG0745-A | September 2024 |
Technical information（Technical News）
N/A
* The table can be scrolled to the right.
| Name | Language | Document No. | Release date |
|---|
Downloads
N/A
Profile/module FB (function block)
| Name | Filename |
|---|
Control & Communication System Profile CSP+
| Name | Filename |
|---|
Sample program
| Name | Filename |
|---|
Video
N/A
Related products
Connection cables
| Model | Length | Name | Overview |
|---|
