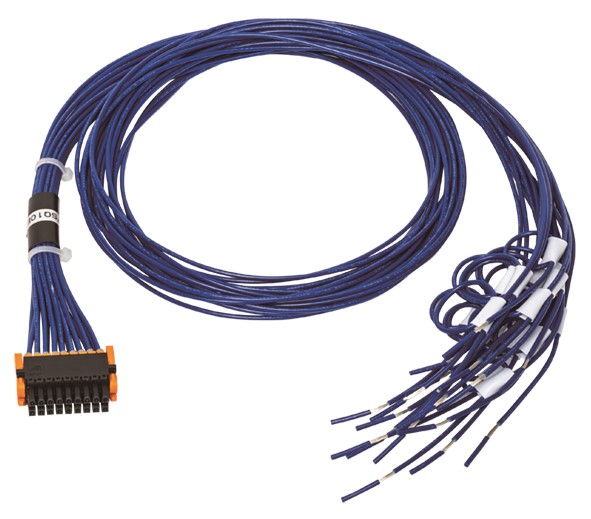

Cable with spring clamp terminal block
(Spring clamp terminal block <=> MIL connector)
FA1-CB1L10EM1F18
- Features
- Specifications
- External Dimensions・
Product CAD Data - Wiring diagrams and connection examples・
Note - Catalogs・
New Product Releases - Manual
- Technical information
（Technical News） - Downloads
- Video
- Related products
Features
-
- Product overview:
- This is a cable used to connect a programmable controller and a junction terminal block or a digital signal converter.
- Merit.1
- Wiring work is reduced by 99% because cables have already been wired to the spring terminal block and do not need to be terminated or wired individually.
- Merit.2
- Cables are wired by only removing the existing terminal block of a Mitsubishi Electric programmable controller module and connecting this cable.
Cables can also be wired to our products with a connector by a single operation.
- Merit.3
- Users can select a best cable for the module according to the number of pins, allowable current, and type (discrete cable or connector).
- Merit.4
- The cable length can be customized. (For applicable cables and the maximum cable length, please consult your local Mitsubishi representative.)
| Sales status | On sale |
|---|
Basic specifications
| Item | Specifications | |
|---|---|---|
| Model | FA1-CB1L10EM1F18 | |
| Category | Time and wire saving devies | |
| Connected device | Programmable controller | |
| Series of connected devices | MELSEC iQ-R | |
| Product category | Connection cable | |
| Delivery date | - | |
Specifications
General specifications
| Item | Specifications | |
|---|---|---|
| Operating ambient temperature | 0 to 55℃ | |
| Storage ambient temperature | -25 to 75℃ | |
| Operating ambient humidity | 5 to 95%RH, no condensation | |
| Storage ambient humidity | 5 to 95%RH, no condensation | |
| Vibration resistance ( With intermittent vibration ) | 5 to 8.4Hz : Half amplitude 3.5mm | |
| 8.4 to 150Hz : Acceleration 9.8m/s2 | ||
| Number of sweeps : 10 times in each direction X, Y, and Z | ||
| Vibration resistance ( With continual vibration ) | 5 to 8.4Hz : Half amplitude 1.75mm | |
| 8.4 to 150Hz : Acceleration 4.9m/s2 | ||
| Shock resistance | 147m/s2, 3 times in each direction X, Y, and Z(Applicable standards : JIS B 3502 , IEC61131-2) | |
| Operating atmosphere | Free of corrosive gases | |
| Operating altitude *1 | 2000m or less | |
| Overvoltage category *2 | II or less | |
| Pollution degree *3 | 2 or less | |
| Precautions | *1 Do not use or store the module under pressure higher than the atmospheric pressure at an altitude of 0 meters. Doing so may cause malfunction. When using the module under pressure, please consult your local Mitsubishi Electric representative. |
|
| *2 This indicates the assumption that the equipment is connected to a power distribution system, ranging from a public electrical power distribution network down to machinery within the premises. Category II applies to equipment for which electrical power is supplied from fixed facilities. The surge voltage withstand level for equipment with the rated voltage of up to 300V is 2500V. | ||
| *3 This index indicates the degree to which conductive material is generated in terms of the environment in which the equipment is used. In pollution degree 2, only nonconductive pollution occurs. A temporary conductivity caused by condensation must be expected occasionally. |
||
Product specifications
| Item | Specifications | |
|---|---|---|
| Programmable controller side connector | Spring clamp terminal type, 20P connector | |
| Module side connector | MIL 20P connector , FRC5-A020-3T0S-FA (manufactured by DDK Ltd.) | |
| Nominal cross sectional area of conductor | 0.08mm2 (#28AWG) | |
| Conductor configuration | 7wire / 0.127mm | |
| Insulator outer diameter | 0.88mm | |
| Cable outer diameter | 8.1mm | |
| Rated current | 1A | |
| Conductor resistance (20°C) | 0.232Ω/m or less | |
| Withstand voltage | 500VAC for 1 minute | |
| Insulation resistance | 10MΩ-km or more | |
| UL standard (cable area) | UL STYLE No 2464 80°C 300V | |
| Cable length | 1ｍ | |
| Weight(g) | Approx. 110 | |
