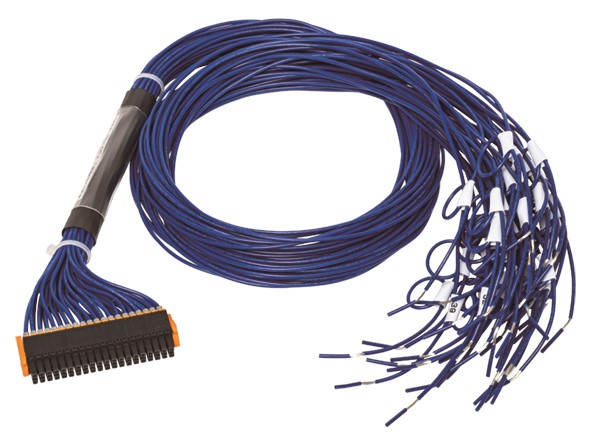

Cable with spring clamp terminal block
(Spring clamp terminal block <=> Discrete cable)
FA1-CB3L07SQ20E1F40
- Features
- Specifications
- External Dimensions・
Product CAD Data - Wiring diagrams and connection examples・
Note - Catalogs・
New Product Releases - Manual
- Technical information
（Technical News） - Downloads
- Video
- Related products
Features
-
- Product overview:
-
This is a cable with a spring clamp terminal block to which cables have already been wired and is ready to be connected to MELSEC iQ-R
series, MELSEC iQ-F series, or remote I/O modules (manufactured by Mitsubishi Electric).
- Merit.1
- Wiring work is reduced by 99% because cables do not need to be terminated or wired individually.
- Merit.2
- Cables are wired by only removing the existing terminal block of a Mitsubishi Electric programmable controller module and connecting
this cable.
- Merit.3
- The time required to connect a Mitsubishi Electric programmable controller and a general-purpose product can be reduced significantly.
- Merit.4
- Users can select a best cable for the module according to the number of pins, allowable current, and type (discrete cable or connector).
- Merit.5
- Users can select a best cable for the module according to the number of pins, allowable current, and type (discrete cable or connector).
| Sales status | On sale |
|---|
Basic specifications
| Item | Specifications | |
|---|---|---|
| Model | FA1-CB3L07SQ20E1F40 | |
| Category | Time and wire saving devies | |
| Connected device | Programmable controller | |
| Series of connected devices | MELSEC iQ-F | |
| CC-Link IE Field Remote I/O | ||
| Product category | Connection cable | |
| Delivery date | - | |
Specifications
General specifications
| Item | Specifications | |
|---|---|---|
| Operating ambient temperature | 0 to 55℃ | |
| Storage ambient temperature | -25 to 75℃ | |
| Operating ambient humidity | 5 to 95%RH, no condensation | |
| Storage ambient humidity | 5 to 95%RH, no condensation | |
| Vibration resistance ( With intermittent vibration ) | 5 to 8.4Hz : Half amplitude 3.5mm | |
| 8.4 to 150Hz : Acceleration 9.8m/s2 | ||
| Number of sweeps : 10 times in each direction X, Y, and Z | ||
| Vibration resistance ( With continual vibration ) | 5 to 8.4Hz : Half amplitude 1.75mm | |
| 8.4 to 150Hz : Acceleration 4.9m/s2 | ||
| Shock resistance | 147m/s2, 3 times in each direction X, Y, and Z(Applicable standards : JIS B 3502 , IEC61131-2) | |
| Operating atmosphere | Free of corrosive gases | |
| Operating altitude *1 | 2000m or less | |
| Installation location *2 | Inside control panel | |
| Overvoltage category *3 | II or less | |
| Pollution degree *4 | 2 or less | |
| Precautions | *1 Do not use or store the module under pressure higher than the atmospheric pressure at an altitude of 0 meters. Doing so may cause malfunction. When using the module under pressure, please consult your local Mitsubishi Electric representative. |
|
| *2 This indicates the assumption that the equipment is connected to a power distribution system, ranging from a public electrical power distribution network down to machinery within the premises. Category II applies to equipment for which electrical power is supplied from fixed facilities. The surge voltage withstand level for equipment with the rated voltage of up to 300V is 2500V. | ||
| *3 This index indicates the degree to which conductive material is generated in terms of the environment in which the equipment is used. In pollution degree 2, only nonconductive pollution occurs. A temporary conductivity caused by condensation must be expected occasionally. |
||
Product specifications
| Item | Specifications | |
|---|---|---|
| Programmable controller side connector | Spring clamp terminal type, 40P connector | |
| Connector on junction terminal block | Discrete cable | |
| Mark tube | Provided (Marks: 1 to 40) | |
| Nominal cross sectional area of conductor | 0.75mm2（#18AWG） | |
| Conductor configuration | 34wire / 0.18mm | |
| Insulator outer diameter | 2.1mm | |
| Rated current | 8A | |
| Conductor resistance (20°C) | 0.0235Ω/m or less | |
| Withstand voltage | 1500VAC for 1 minute | |
| Insulation resistance | 5MΩ-km or more | |
| UL standard (cable area) | UL STYLE No.1007 80°C 300V | |
| Cable length | 2ｍ | |
| Weight(g) | Approx. 995 | |
