- General-purpose Input/output 20 points, 24VDC

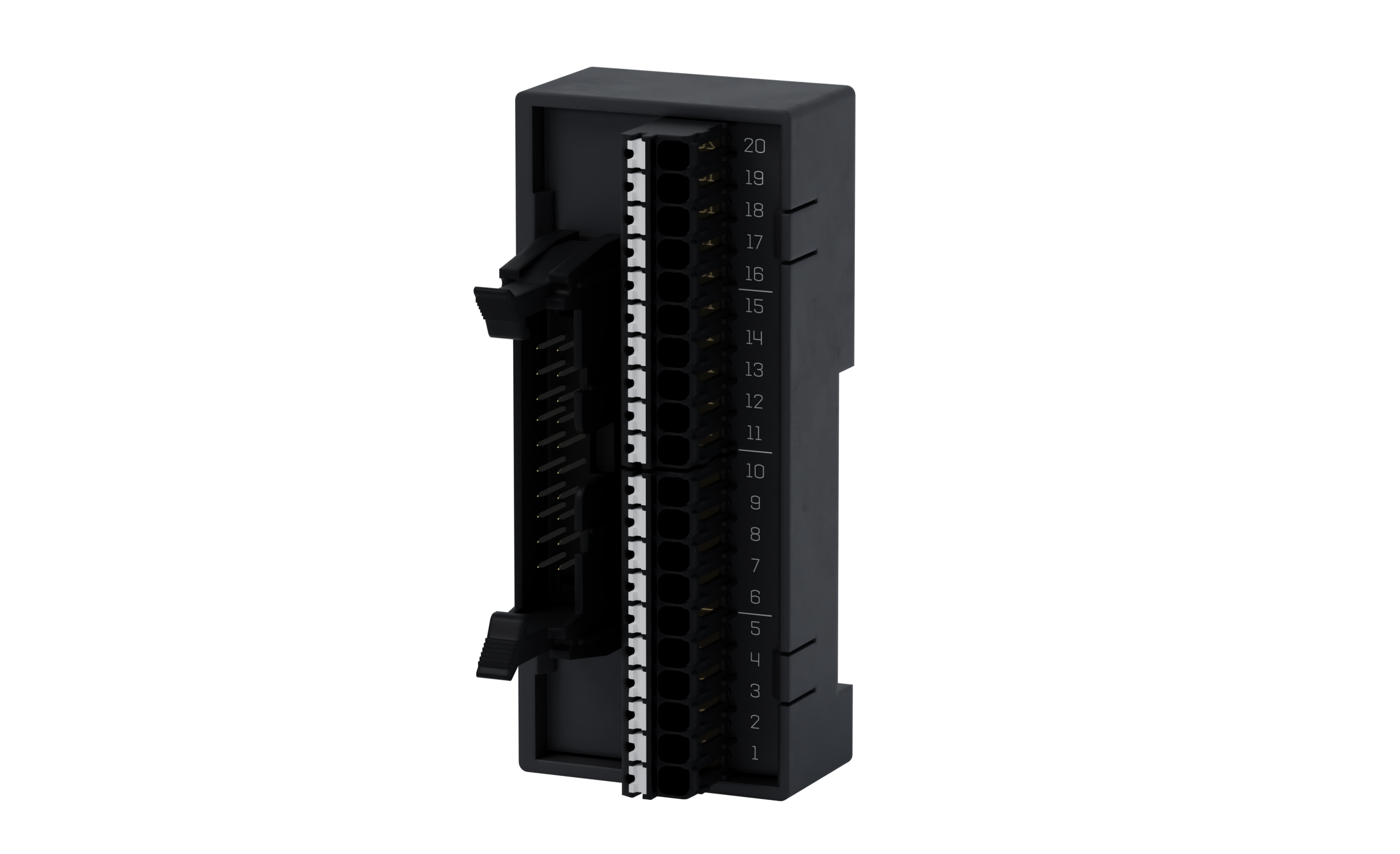

FA1-TE2SV20P
- Features
- Specifications
- External Dimensions・
Product CAD Data - Wiring diagrams and connection examples・
Note - Catalogs・
New Product Releases - Manual
- Technical information
（Technical News） - Downloads
- Video
- Related products
Features
-
- Product overview:
- The junction terminal block helps signal transmissions between a programmable controller and devices such as sensors in connection methods suitable for applications.
- Merit.1
- Various connection cables connecting MELSEC series modules, CNCs (computerized numerical controllers), and non-Mitsubishi PLCs are available.
- Merit.2
- Retightening work is not required at periodic inspection, as screws do not loose due to vibration.
- Merit.3
- Using ferrule terminals enables push-in connections.
| Sales status | On sale |
|---|
Basic specifications
| Item | Specifications | |
|---|---|---|
| Model | FA1-TE2SV20P | |
| Category | Time and wire saving devices | |
| Connected device | Programmable controller | |
| Series of connected devices | MELSEC iQ-R | |
| MELSEC iQ-F | ||
| MELSEC-Q | ||
| MELSEC-L | ||
| MELSEC-F | ||
| Product category | Junction terminal block for programmable controller | |
| Terminal block type | Spring clamp terminal type | |
Specifications
General specifications
| Item | Specifications | |
|---|---|---|
| Operating ambient temperature | 0 to 55℃ | |
| Storage ambient temperature | -25 to 75℃ | |
| Operating ambient humidity | 5 to 95%RH, no condensation | |
| Storage ambient humidity | 5 to 95%RH, no condensation | |
| Vibration resistance ( With intermittent vibration ) | 5 to 8.4Hz : Half amplitude 3.5mm | |
| 8.4 to 150Hz : Acceleration 9.8m/s2 | ||
| Number of sweeps : 10 times in each direction X, Y, and Z | ||
| Vibration resistance ( With continual vibration ) | 5 to 8.4Hz : Half amplitude 1.75mm | |
| 8.4 to 150Hz : Acceleration 4.9m/s2 | ||
| Shock resistance | 147m/s2, 3 times in each direction X, Y, and Z(Applicable standards : JIS B 3502, IEC61131-2) | |
| Operating atmosphere | Free of corrosive gases | |
| Operating altitude *1 | 2000m or less | |
| Installation location | Inside the control panel *4, Indoor use | |
| Overvoltage category *2 | II or less | |
| Pollution degree *3 | 2 or less | |
| Precautions | *1 Do not use or store the module under pressure higher than the atmospheric pressure at an altitude of 0 meters. Doing so may cause malfunction. When using the module under pressure, please consult your local Mitsubishi Electric representative. |
|
| *2 This indicates the assumption that the equipment is connected to a power distribution system, ranging from a public electrical power distribution network down to machinery within the premises. Category II applies to equipment for which electrical power is supplied from fixed facilities. The surge voltage withstand level for equipment with the rated voltage of up to 300V is 2500V. | ||
| *3 This index indicates the degree to which conductive material is generated in terms of the environment in which the equipment is used. In pollution degree 2, only nonconductive pollution occurs. A temporary conductivity caused by condensation must be expected occasionally. |
||
| *4 The enclosure is suitably designed for those specific environmental conditions, as applicable, and enclosure rate meets IP20 and minimum type 1 of UL 50. | ||
Product specifications
| Item | Specifications | |
|---|---|---|
| Rated voltage | 24VDC (SELV and LIM or Class 2) *1 | |
| Maximum operating voltage | 30VDC (SELV and LIM or Class 2) *1 | |
| Maximum operating current | Signal: 1A *2 | |
| Terminal block : Number of terminals | 20P | |
| Terminal block : Wire strip length | 8mm | |
| Module installation | Applicable DIN rail: TH35-7.5Fe, TH35-7.5Al (IEC 60715 compliant) | |
| Withstand voltage, insulation resistance | 1250VAC for 1 minute (between all terminals and case) ,10MΩ or more (measured with 500VDC insulation resistance tester) | |
| Applicable wire:Without ferrule(stranded/solid wire) | 0.2 to 1.5mm2 (24 to 16AWG),copper wire with a temperature rating of 75°C or more *3,4,5 | |
| Applicable wire:Without ferrule(stranded wire) | 0.08 to 0.75mm2 (28 to 18AWG),copper wire with a temperature rating of 75°C or more | |
| Weight | 約40g | |
| Precautions | *1：The power supply must use CLASS2 power supply or a power supply to the SELV (Safety Extra-Low Voltage) and LIM (Limited Energy Circuit) circuit. | |
| *2：Evaluation for UL certification is conducted under resistance load conditions. | ||
| *3：Select wires depending on the current value used. | ||
| *4：Use coper wires having temperature rating of 75°C or more for the terminal block. | ||
| *5：For UL certification, suitable for field wiring when a ferrule is not used. | ||
External Dimensions・Product CAD Data
External Dimensions
Product CAD Data
Wiring diagrams and connection examples・Note
Wiring diagrams and connection examples
N/A
| Name | Filename |
|---|
Other Technical Information
N/A
| Name | Filename |
|---|
Precautions for use
N/A
| Name | Filename |
|---|
Catalogs・New Product Releases
* The table can be scrolled to the right.
| Name | Language | Document No. | Release date |
|---|---|---|---|
| Junction Terminal Block Spring Clamp Terminal Type（1MB） | English | MEIC232E_234 | April 2023 |
| FA Goods General Catalog Digest edition（28MB） | English | MEIC198E_209-B | March 2024 |
| FA关联产品 综合目录 摘要版（29MB） | Simplified Chinese | MEIC199C_209-B | March 2024 |
| FA Goods General Catalog Time and Wire Saving Devices（79MB） | English | MEIC202E_20Z-E | November 2024 |
Manual
* The table can be scrolled to the right.
| Name | Language | Document No. | Release date |
|---|---|---|---|
| User's Manual（1MB） | English | 50D-FG0672-B | November 2023 |
