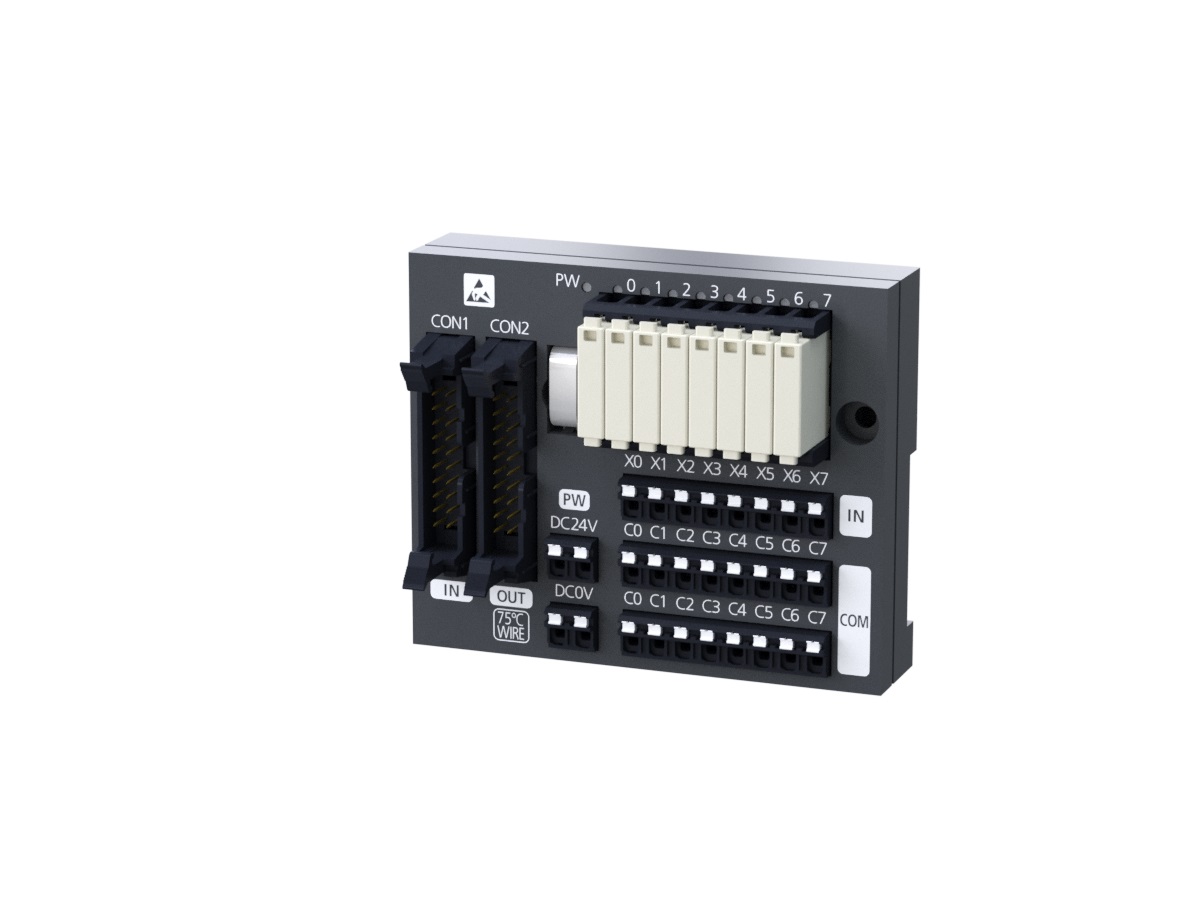

- Spring clamp type, module type, 8-point socket module(source-type to source-type, independent common)
FA1-TH1E8Y2SC20S1E
- Features
- Specifications
- External Dimensions・
Product CAD Data - Wiring diagrams and connection examples・
Note - Catalogs・
New Product Releases - Manual
- Technical information
（Technical News） - Downloads
- Video
- Related products
Features
-
- Product overview:
-
Digital signals from a programmable controller can be converted to
signals suitable for the connected devices such as a magnetic starter
(example: from 24VDC signal to 200VAC signal).
One terminal module supports connections with multiple devices with
different voltage loads.
- Merit.1
- Output modules (relay/triac/transistor) can be combined flexibly.
- Merit.2
- When a 64-point output module is used, output conversion for a maximum of 64 points can be made per one slot.
- Merit.3
- Sockets enable relay modules to be replaced individually. (Easy maintenance)
- Merit.4
- The spring clamp terminal block does not require screws.
Wires can be easily pushed into the conductive terminals without using
a screwdriver.
| Sales status | On sale |
|---|
Basic specifications
| Item | Specifications | |
|---|---|---|
| Model | FA1-TH1E8Y2SC20S1E | |
| Category | Time and wire saving devices | |
| Connected device | Programmable controller | |
| Series of connected devices | MELSEC iQ-R | |
| MELSEC iQ-F | ||
| MELSEC-Q | ||
| MELSEC-F | ||
| MELSEC-L | ||
| Product category | Digital signal converter (terminal module) | |
| Terminal block type | Spring clamp terminal type | |
| Delivery date | - | |
Specifications
General specifications
| Item | Specifications | |
|---|---|---|
| Operating ambient temperature | -20 to 55℃*4 | |
| Storage ambient temperature | -25 to 75℃ | |
| Operating ambient humidity | 5 to 95%RH, no condensation | |
| Storage ambient humidity | 5 to 95%RH, no condensation | |
| Vibration resistance ( With intermittent vibration ) | 5 to 8.4Hz : Half amplitude 3.5mm | |
| 8.4 to 150Hz : Acceleration 9.8m／s2 | ||
| Number of sweeps : 10 times in each direction X, Y, and Z | ||
| Vibration resistance ( With continual vibration ) | 5 to 8.4Hz : Half amplitude 1.75mm | |
| 8.4 to 150Hz : Acceleration 4.9m／s2 | ||
| Shock resistance | 147m／s2, 3 times in each direction X, Y, and Z(Applicable standards : JIS B 3502, IEC61131-2) | |
| Operating atmosphere | Free of corrosive gases | |
| Operating altitude *1 | 2000m or less | |
| Installation location | Inside control panel*5(Indoor use) | |
| Overvoltage category *2 | II or less | |
| Pollution degree *3 | 2 or less | |
| Precautions | *1 Do not use or store the module under the atmospheric pressure greater than that at an altitude of 0m. Doing so may cause malfunction. | |
| *2 Indicates the section of the power supply to which the equipment is assumed to be connected, between the public power grid and the machinery within the premises. | ||
| *3 This is a guideline indicating the degree of the generation of conducting substances in the environment in which a device is used. | ||
| *4 Use the digital signal converter within the specifications of the programmable controller being used. | ||
| *5 The enclosure is suitably designed for those specific environmental conditions, as applicable, and enclosure rate meets IP20 and minimum type 1 of UL 50. | ||
Product specifications
| Item | Specifications | |
|---|---|---|
| Connected programmable controller | Source-type 24VDC transistor output module | |
| Terminal output type | Source output | |
| No. of points | 8 | |
| Rated load voltage/current *1 | Voltage/current: Depends on the module connected. | |
| Maximum number of simultaneous on points | 100%. When triac/transistor modules are connected, this value depends on the load current characteristics. |
|
| Wiring method for common | 8-point independent common | |
| External power supply | 24VDC+-10% (ripple ratio: within 5%, SELV and LIM or Class2)*2 | |
| Module current consumption | Approx. 10mA at 24VDC (not including current consumption of module connected and programmable controller) |
|
| Withstand voltage, insulation resistance | Between inputs/outputs, between outputs: 2500VAC for 1 minute, 10MΩ or more | |
| Operation display | LED on with power supply on and output on*7 | |
| Mountable module | N/O contact relay: FA-NYP24WK2, FA-NYP24WK4 N/C contact relay: FA-NYBP24WK2,FA-NYBP24WK4 triac: FA-SN24A01FS2*5, FA-SN24A01FS4*5 transistor: FA-SN24D01HZS2, FA-SN24D01HZS4 signal pass-through (DC output): FA-SN00SS2, FA-SN00SS4 |
|
| No. of times to replace module | 50 times | |
| Module mixing | Possible | |
| Number of terminals | 28 points (power supply: 4 points, output: 24 points) | |
| Applicable wire *3 *4 | Without ferrule Stranded or solid wire: 0.2 to 1.5 mm2 (24 to 16 AWG) With ferrule Stranded or solid wire: 0.08 to 0.75 mm2 (28 to 18 AWG) |
|
| Wire strip length | 8mm | |
| Module installation *6 | Screw type | M4 × 0.7mm × 22mm or more Tightening torque range: 78 to 118N·cm (8 to 12kgf·cm) |
| DIN rail | Applicable DIN rails: TH35-7.5Fe, TH35-7.5Al (IEC 60715 compliant) | |
| Weight(g) | Approx. 110g | |
| Precautions | *1 Evaluation for UL certification is conducted under resistance load conditions. | |
| *2 The power supply must be powered from approved source that meets of SELV and Class2 or limited energy according to UL 61010-2-201. | ||
| *3 UL certification is evaluated with copper wire. | ||
| *4 Select wires depending on the current value used. | ||
| *5 It cannot be installed at the time of UL certification. | ||
| *6 Evaluation for UL certification is conducted a DIN rail installation. | ||
| *7 When the power is off, the "PW" LED may light up for a while. | ||
External Dimensions・Product CAD Data
External Dimensions
Product CAD Data
Wiring diagrams and connection examples・Note
Wiring diagrams and connection examples
N/A
| Name | Filename |
|---|
Other Technical Information
N/A
| Name | Filename |
|---|
Precautions for use
N/A
| Name | Filename |
|---|
Catalogs・New Product Releases
* The table can be scrolled to the right.
| Name | Language | Document No. | Release date |
|---|---|---|---|
| Digital Signal Converters (Terminal Modules)（3MB） | English | MEIC224E_226-C | February 2025 |
| 数字信号转换器(终端模块)（3MB） | Simplified Chinese | MEIC234C_236-A | February 2025 |
| FA Goods General Catalog Digest edition（23MB） | English | MEIC198E_209-C | October 2025 |
| FA关联产品 综合目录 摘要版（23MB） | Simplified Chinese | MEIC199C_209-C | October 2025 |
| FA Goods General Catalog Time and Wire Saving Devices（82MB） | English | MEIC202E_20Z-F | October 2025 |
Manual
* The table can be scrolled to the right.
| Name | Language | Document No. | Release date |
|---|---|---|---|
| User's Manual（8MB） | English | 50D-FG0232E-E | June 2022 |
