- CC-Link IE TSN/Ethernet network interface module for digital signal converter (terminal module)
FA3-TH1M16Y-01C
- Features
- Specifications
- External Dimensions・
Product CAD Data - Wiring diagrams and connection examples・
Note - Catalogs・
New Product Releases - Manual
- Technical information
（Technical News） - Downloads
- Video
- Related products
Features
-
- Product overview:

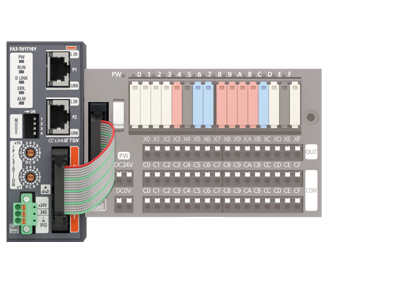

- Connecting the digital signal converter (terminal module) through a network to collect data from devices enables small-scale IoT.
- Merit.1
- Small-scale IoT system for integrated data management :
Data from devices is collected in upper hierarchical levels through a network, visualizing the data
- Merit.2
- Saving cost and time for wiring in panel and system :
Wiring from the inside of the control panel to the device and relay box can be performed using only one Ethernet cable. Wiring can be also simply performed when increasing devices.
- Merit.3
- Easy wiring :
The digital signal converter can be connected to the programmable controller using a one-touch connector cable.
- Merit.4
- Module selectable configuration :
Modules can be selected individually, contributing to cost and space saving.
| Sales status | On sale |
|---|
Basic specifications
| Item | Specifications | |
|---|---|---|
| Model | FA3-TH1M16Y-01C | |
| Category | Network devices | |
| Connectable MELSEC module | MELSEC iQ-R series | CC-Link IE TSN master station CC-Link IE Field master station CC-Link IE Field Basic master station SLMP client MODBUS/TCP |
| MELSEC iQ-F series | CC-Link IE TSN master station CC-Link IE Field master station CC-Link IE Field Basic master station SLMP client |
|
| MELSEC-Q series | CC-Link IE Field master station CC-Link IE Field Basic master station SLMP client MODBUS/TCP |
|
| MELSEC-L series | CC-Link IE Field master station CC-Link IE Field Basic master station SLMP client MODBUS/TCP |
|
| Connectable digital signal converter | FA-TH16YRA11 FA-TH16YRA11S FA-TH16YRA20 FA-TH16YRA20S FA-TH16YRA20SL FA-TH16YRA21 FA-TH16YRA21S FA-TH16YRAC20S FA-TH16YRAB20SL FA-TH16YSR11S FA-TH16YSR20S FA-TH16YSR21S FA-TH16YTL11S FA-TH16YTL21S FA-TH16YTR20S FA-TH16Y2TR20 FA-TH16YTH11S FA1-TH16Y2RA20S1E FA1-TH16Y1SR20S1E FA1-TH16Y1TR20S1E FA1-TH16Y2SC20S1E |
|
| Product category | Small IoT | |
| Delivery date | - | |
Specifications
General specifications
| Item | Specifications | |
|---|---|---|
| Operating ambient temperature | 0 to 55 °C | |
| Storage ambient temperature | -25 to 75 °C | |
| Operating ambient humidity | 5 to 95 %RH, no condensation | |
| Storage ambient humidity | 5 to 95 %RH, no condensation | |
| Vibration resistance ( With intermittent vibration ) | 5 to 8.4Hz | Half amplitude 3.5 mm |
| 8.4 to 150Hz | Acceleration 9.8 m/s2 | |
| Number of sweeps | 10 times each in the X, Y, and Z directions | |
| Vibration resistance ( With continual vibration ) | 5 to 8.4Hz | Half amplitude 1.75 mm |
| 8.4 to 150Hz | Acceleration 4.9 m/s2 | |
| Shock resistance | 147m/s2 3 times each in the X, Y, and Z directions |
|
| Operating atmosphere | No corrosive gases | |
| Operating altitude *1 | 0 to 2000m | |
| Installation location *2 | Inside control panel | |
| Overvoltage category *3 | II or less | |
| Pollution degree *4 | 2 or less | |
| Precautions | *1 Do not use or store the module under pressure higher than the atmospheric pressure at an altitude of 0 meters. Doing so may cause malfunction. When using the module under pressure, please consult your local Mitsubishi Electric representative. |
|
| *2 Install the module in a control panel that satisfies IP20 protection classification and Type 1 or higher level specified in UL50. Design the control panel suitable for the environment if necessary. | ||
| *3 This indicates the assumption that the equipment is connected to a power distribution system, ranging from a public electrical power distribution network down to machinery within the premises. Category II applies to equipment for which electrical power is supplied from fixed facilities. The surge voltage withstand level for equipment with the rated voltage of up to 300V is 2500V. | ||
| *4 This index indicates the degree to which conductive material is generated in terms of the environment in which the equipment is used. In pollution degree 2, only nonconductive pollution occurs. A temporary conductivity caused by condensation must be expected occasionally. | ||
Product specifications
| Item | Specifications | |
|---|---|---|
| Output type | Sink type | |
| Number of output points | 16 points | |
| Response time | OFF to ON | 0.5 ms or less |
| ON to OFF | 1.5 ms or less | |
| Note | The digital signal converter (module) response time is not included. | |
| External interface | Communication port | RJ-45 connector |
| Digital signal converter port | MIL20P connector | |
| Power supply port | Two-piece spring clamp terminal block | |
| Module installation | Mounting on a DIN rail Mounting on a control panel directly with screws (using the mounting bracket provided with the module) |
|
| Communication cable | 1Gbps | Ethernet cable that meets the 1000BASE-T standard (straight/cross cable) Category 5e or higher (double shielded, STP) |
| 100Mbps | Ethernet cable that meets the 100BASE-TX standard (straight/cross cable) Category 5 or higher (double shielded, STP) |
|
| digital signal converter cable | Include this module | A dedicated cable with a cable length of 0.1 m is included. |
| Sold separately | FA3-CB2L10MM1H20 (1 m) FA3-CB2L20MM1H20 (2 m) FA3-CB2L30MM1H20 (3 m) |
|
| Power supply port | Applicable wire size | Stranded wire or solid wire, 0.34 to 1.5 mm2 (22 to 18 AWG) |
| Applicable ferrule terminal (PHOENIX CONTACT GmbH & Co. KG) | Applicable ferrule terminal type (sleeve length, applicable wire size) : AI 0.34-10 TQ (10 mm, 0.34 mm2 (22 AWG) ) AI 0.34-8 TQ (8 mm, 0.34 mm2 (22 AWG) ) AI 0.5-10 WH (10 mm, 0.5 mm2 (20 AWG) ) AI 0.5-8 WH (8 mm, 0.5 mm2 (20 AWG) ) A 0.5-10 (10 mm, 0.5 mm2 (20 AWG) ) A 0.5-8 (8 mm, 0.5 mm2 (20 AWG) ) A 0.75-10 (10 mm, 0.75 mm2 (18 AWG) ) A 0.75-8 (8 mm, 0.75 mm2 (18 AWG) ) A 1-10 (10 mm, 1 mm2 (18 AWG) ) A 1-8 (8 mm, 1 mm2 (18 AWG) ) A 1.5-10 (10 mm, 1.5 mm2 (16 AWG) ) Crimping tool : CRIMPFOX 6 |
|
| Applicable ferrule terminal (WAGO Kontakttechnik GmbH & Co. KG) | Applicable ferrule terminal type (sleeve length, applicable wire size) : 216-302 (8 mm, 0.34 mm2 (24 to 22 AWG) ) 216-201 (8 mm, 0.5 mm2 (22 to 20 AWG) ) Crimping tool : 206-1204 |
|
| External power supply | Power supply specifications | 20.4 to 28.8VDC (24VDC: -15%, +20%) (ripple ratio: within 5%) |
| Current consumption | 0.12 A | |
| Digital signal converter | The digital signal converter also needs to be supplied with 24V DC power. For the required power supply specifications, refer to the manual of the digital signal converter. | |
| External dimensions | H (height) | 105 mm (Projection parts are not included.) |
| W (width) | 40 mm (Mounting brackets are not included.) 67 mm (Mounting brackets are included.) |
|
| D (depth) | 70 mm (Connectors are not included.) 86 mm (Connectors are included.) |
|
| Weight | 160 g | |
| Supported networks | CC-Link IE TSN | Supported |
| CC-Link IE Field | Supported | |
| CC-Link IE Field Basic | Supported | |
| SLMP (Ethernet) | Supported | |
| Modbus/TCP | Supported | |
| Network specifications for CC-Link IE TSN | Station type | Remote station |
| Certification class | Class B | |
| Communication speed | 1 Gbps 100 Mbps |
|
| Topology | Line topology Star topology Mixture of star topology and line topology |
|
| Network specifications for CC-Link IE Field | Station type | Remote device station |
| Communication speed | 1 Gbps | |
| Topology | Line topology Star topology Mixture of star topology and line topology Ring topology |
|
| Network specifications for CC-Link IE Field Basic | Station type | Remote station |
| Communication speed | 100 Mbps | |
| Topology | Star topology | |
| Network specifications for SLMP | Station type | Server |
| Communication speed | 100 Mbps | |
| Topology | Star topology | |
| Network specifications for Modbus/TCP | Device type | Modbus/TCP slave device |
| Communication speed | 100 Mbps 10 Mbps |
|
| Topology | Star topology | |
External Dimensions・Product CAD Data
External Dimensions
N/A
| Name | Filename |
|---|
Product CAD Data
N/A
| Name | Filename |
|---|
Wiring diagrams and connection examples・Note
Wiring diagrams and connection examples
N/A
| Name | Filename |
|---|
Other Technical Information
N/A
| Name | Filename |
|---|
Precautions for use
N/A
| Name | Filename |
|---|
Catalogs・New Product Releases
* The table can be scrolled to the right.
| Name | Language | Document No. | Release date |
|---|---|---|---|
| 网络接口模块（2MB） | Simplified Chinese | MEIC225C_224-B | February 2025 |
| CC-Link IE TSN/Ethernet Network Interface Modules（1MB） | English | MEIC215E_214-D | February 2025 |
| FA Goods General Catalog Digest edition（28MB） | English | MEIC198E_209-B | March 2024 |
| FA关联产品 综合目录 摘要版（29MB） | Simplified Chinese | MEIC199C_209-B | March 2024 |
| FA Goods General Catalog Purpose-Specific Products（40MB） | English | MEIC204E_20Y-B | July 2024 |
Manual
* The table can be scrolled to the right.
Technical information（Technical News）
N/A
* The table can be scrolled to the right.
| Name | Language | Document No. | Release date |
|---|
Downloads
Profile/module FB (function block)
| Name | Filename |
|---|
Control & Communication System Profile CSP+
| Name | Filename |
|---|---|
| CSP+ profile (English version)（A）（578KB） | sales_fa_meefan_fa3-th1m16y-01c_sample_1.zip |
| CSP+ profile (Simplified Chinese version)（A）（556KB） | sales_fa_meefan_fa3-th1m16y-01c_sample_2.zip |
CSP+ is an abbreviation for Control & Communication System Profile Plus.
It is a profile that describes information (network parameter information, memory map, etc.) required for the startup,
