Advantages of using the time and wire saving devices for programmable controllers

Before

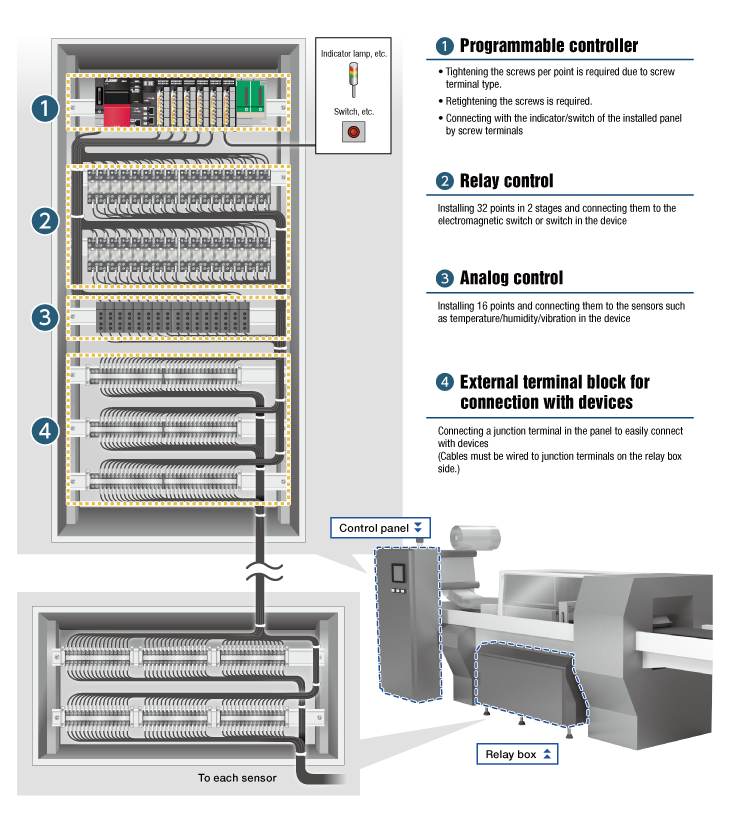

Challenges to reduce wiring time and save the space in the panel
• Taking time to install and check wiring
• Smaller panel size
• Low maintenance efficiency

• 1) Programmable controller

  • Tightening the screws per point is required due to screw terminal type.
  • Retightening the screws is required.
  • Connecting with the indicator/switch of the installed panel by screw terminals

• 2) Relay control

  Installing 32 points in 2 stages and connecting them to the electromagnetic switch or switch in the device

• 3) Analog control

  Installing 16 points and connecting them to the sensors such as temperature/humidity/vibration in the device

• 4) External terminal block for connection with devices

  Connecting a junction terminal in the panel for easy connection with devices

After

Eliminate stress with our time and wire saving devices
• Dedicated cables for easy wiring with the programmable controller
• Reduced space requirements for effective use of the panel
• Streamlines system configuration and reduces cost.

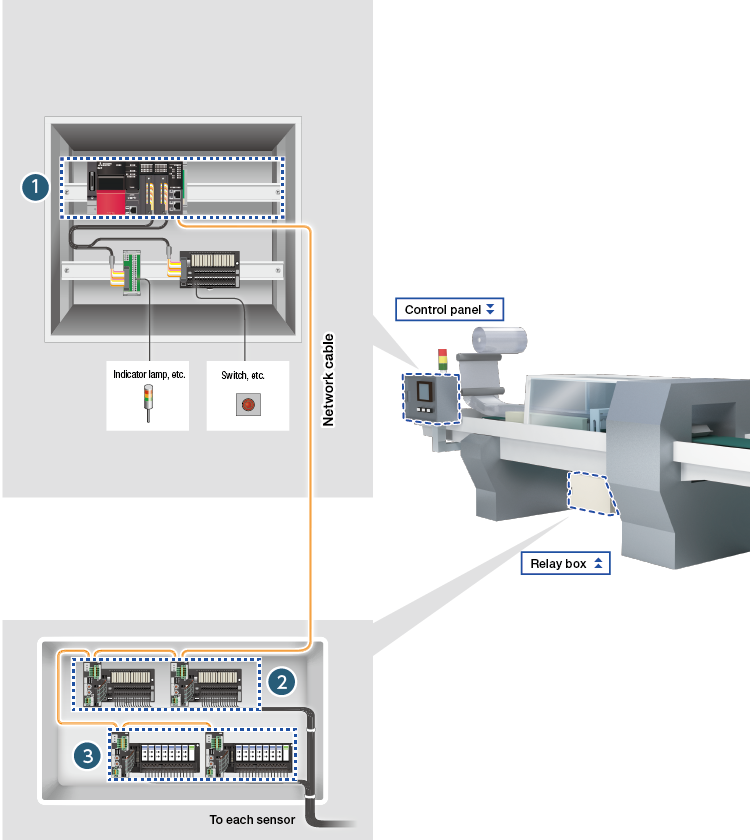

• 1) Programmable controller

  • One-touch connection with the dedicated cable between a connector type programmable controller and the terminal block
  • Optimizing the module configuration by converting the signals from those of the programmable controller
  • Easy wiring with the spring clamp terminal block to connect the indicator/switch in the panel.

• 2) Relay control

  • Connecting the optimum device for different voltage by each point
  (module selectable for each of 16 points)
  • Enabling distributed installation of our product near connected devices within the system. (4/8/16-point installation base units are available.)
  • Easy wiring with the spring clamp type, connection quality stability, reduction in costs and time for maintenance

• 3) Analog control

  • Connecting temperature, humidity, and vibration sensors by each point (module selectable for each point)
  • Configuring an optimal system by selecting the installation base unit suitable for the system. (4/8-channel installation base units are available.)
  • Data from sensors can be visualized easily.
  (deployment of small-scale IoT)

• 4) External terminal block for connection with devices

  No need for the external terminal block because a network interface module connects the master module and the devices only with a single network cable.
