Junction terminal blocks for CNCs

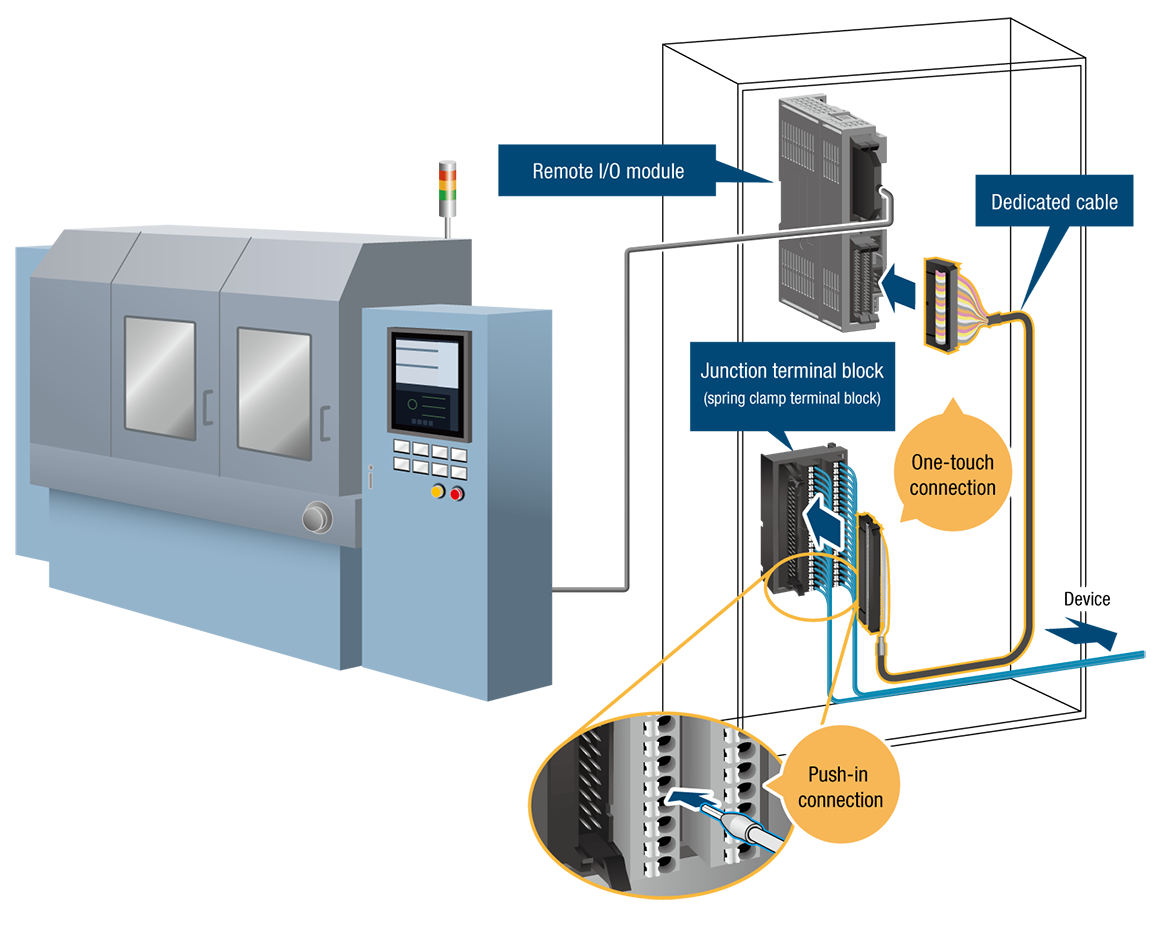

One-touch connection with a dedicated cable

The remote I/O module can be connected to a junction terminal block in a single step using a dedicated cable. Wiring work can be reduced significantly.
(Approx. 5 seconds are required for one connection.)

Wiring work reduction with spring clamp terminal blocks

Wires are pushed into the terminals of a spring clamp terminal block without tightening screws. This helps to reduce the time required for wiring and maintenance.

• Easy wiring



  Push-in connections significantly reduce wiring work time.

  * Comparison against non-experts (2 years of experience; per survey conducted by the Japan Switchboard & Control System Industries Association)

• Stable connection



  No risk of loosening due to vibration. Consistent connection quality is assured.

• Easy maintenance



  Maintenance can be performed easily as screw-tightening work is not required. Rewiring is also easy with push-in connections.

Stable connection with dedicated cables

Assembled dedicated cables are available. Use of these dedicated cables reduces the time required for constructing cables. Also, stable connection quality is guaranteed because no soldering skills are required.

• No need for wiring check



  The dedicated cable is already assembled.
  Wiring check per point, which is required for constructed cables, is not required.

• Cable length customization



  *: For information on other cables, please consult your local Mitsubishi representative.
  (Please contact your local Mitsubishi representative for information on applicable models and maximum cable length.)

Model list

Spring clamp terminal type

* The table can be scrolled to the right.

Screw terminal type

* The table can be scrolled to the right.

Connection cables

* The table can be scrolled to the right.
