Communication cables
- Easy connection between programmable controllers and personal computers

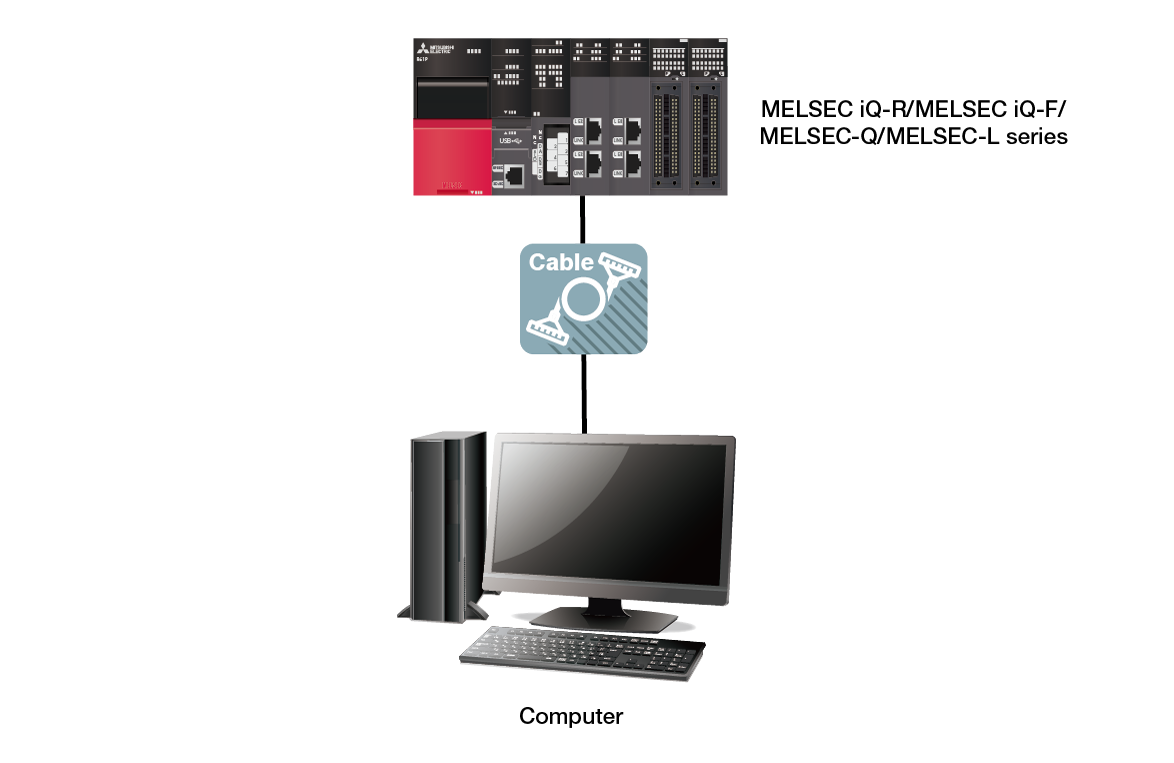

Available for communication method between the programmable controller and the computer/HMI (GOT)
USB, RS-232, and RS-422 communications are supported.
Conversion from RS-232 to RS-422
Converting to RS-422 enables longer communication distance.
Model list
Communication converters
* The table can be scrolled to the right.
| Model | Name | Specifications | RS-232 side connector | RS-422 side connector | Cable length |
|---|---|---|---|---|---|
| FA-CNV2402CBL | RS-232 to RS-422 conversion cable | For converting RS-232 to RS-422 and extending wiring length | Mini DIN6P male | D-Sub25P female (millimeter screw) | 0.2m |
| FA-CNV2405CBL | 0.5m |
Communication cables
* The table can be scrolled to the right.
| Model | Name | Specifications | CPU (module) side connector | Cable length | |
|---|---|---|---|---|---|
| FA-CBL20R4 | RS-422 cable | Enables extension of the cable by using together with a communication converter. | D-Sub25P female (millimeter screw) | D-Sub25P male (millimeter screw metal fitting) | 20m |
| FA-CBL30R4 | 30m | ||||
| FA-CBL50R4 | 50m | ||||
| FA-CBLQC30R2 | RS-232 cable | For connecting MELSEC-Q/L series CPU module and computer or HMI | D-Sub9P female (inch screw) | Mini DIN6P male | 3m |
| FA-CBLQC50R2 | 5m | ||||
| FA-CBLQC80R2 | 8m | ||||
| FA-CBLQC150R2 | 15m | ||||
| FA-CBL25P6P30 | RS-232 cable | For connecting MELSEC-Q/L series CPU module and HMI (with D-Sub25P connector) or other devices | D-Sub25P male (millimeter screw) | Mini DIN6P male | 3m |
| FA-CBL25P6P50 | 5m | ||||
| FA-CBL6S6P10 | RS-232 panel-mount extension cable (1.0m) | Enables connection to the CPU module without opening the control panel. | Mini DIN6P female | Mini DIN6P male | 1m |
| FA-CBL6S6P30 | 3m | ||||
| FA-CBL6S6P50 | 5m | ||||
| FA-CBL9S9P30 | RS-232 cable | For connecting computer and computer link/serial communication module or intelligent communication module | D-Sub9P female (inch screw) | D-Sub9P male (millimeter screw) | 3m |
| FA-CBL9S9P50 | 5m | ||||
| FA-CBL9S9P150 | 15m | ||||
| FA-CBL30USB | USB cable | For connecting computer | Terminal A | Terminal B | 3m |
Conversion cables
* The table can be scrolled to the right.
| Model | Name | Specifications | Optical transducer side connector | Connected device side connector | Cable length |
|---|---|---|---|---|---|
| FA-CBL25S9S | Conversion cables | For connecting optical transducer and computer | D-Sub25P female (millimeter screw metal fitting) | D-Sub9P female (inch screw) | 0.2m |
| FA-CBL25S9P | For connecting optical transducer and computer link/serial communication module | D-Sub25P female (millimeter screw metal fitting) | D-Sub9P male (millimeter screw) | 0.2m | |
| FA-CBL25S6P | For connecting optical transducer and MELSEC-Q/L CPU module (mini DIN6P) | D-Sub25P female (millimeter screw metal fitting) | Mini DIN6P male | 0.2m | |
| FA-CBL25S5T02 | For connecting optical transducer and the QJ71C24N (RS-485 screw terminal type) | D-Sub25P female (millimeter screw metal fitting) | M3 round solderless terminal | 0.2m |
