Economical network setup (CC-Link)
- Various types of cables and branch modules are available for connection to the CC-Link network.
Model list

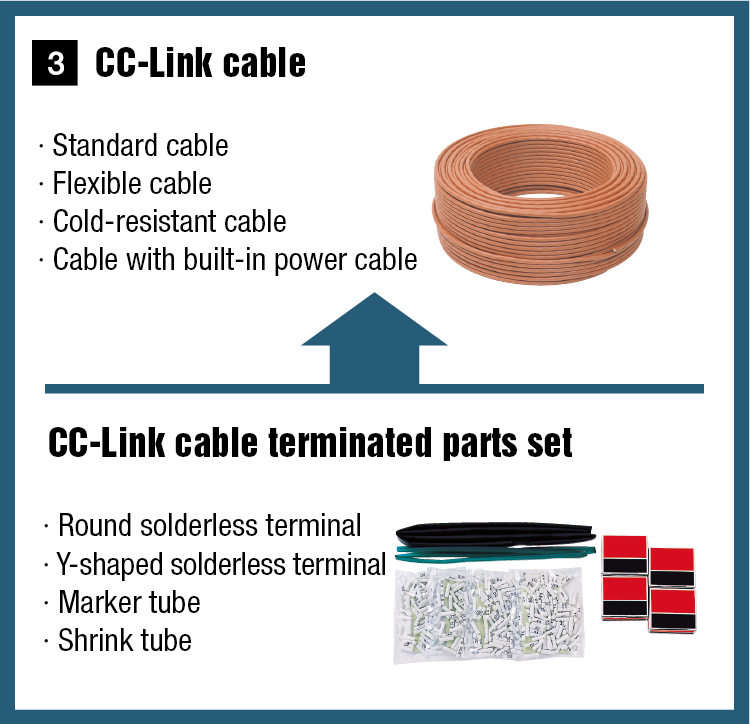

- CC-Link cable
-
* The table can be scrolled to the right.
Model Supported version Specifications Cable length FA-CBL200SB Ver. 1.00 Standard cable 200m*1 FA-CBL200SBH High-performance cable FA-CBL200SBZ Vibration-resistant cable (for movable part) FA-CBL100PWSB Cable with a built-in 24VDC power cable 100m*2 FA-CBL200PSBH Ver. 1.10 Standard cable 200m*1 FA-CBL200PSBZ Vibration-resistant cable (for movable part) FA-CBL200LTPSBH Cold-resistant cable FA-CBL100PWPSBH Cable with a built-in 24VDC power cable 100m*2 *1: Custom lengths are not available. However, a 1000-meter option is available.
*2: Custom lengths are not available. However, a 500-meter option is available.

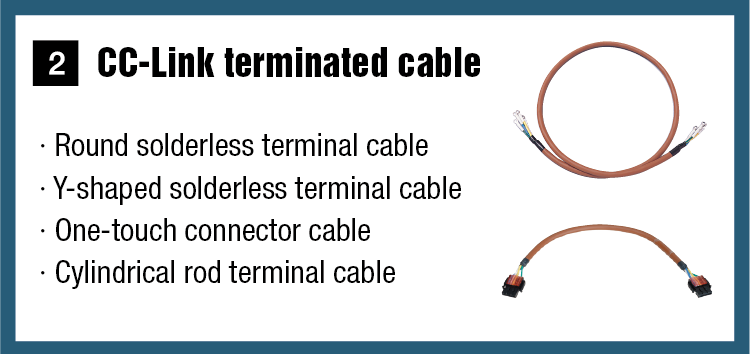

- CC-Link terminated cable
-
* The table can be scrolled to the right.
Model Supported version Specifications Cable length FA-CBL03CC Ver. 1.00 Round solderless terminal 0.3m FA-CBL05CC 0.5m FA-CBL10CC 1m FA-CBL20CC 2m FA-CBL03CCY Y-shaped solderless terminal 0.3m FA-CBL05CCY 0.5m FA-CBL07CCY 0.7m FA-CBL10CCY 1m FA-CBL20CCY 2m FA-CBL03CCPH Ver. 1.10 Round solderless terminal 0.3m FA-CBL04CCPH 0.4m FA-CBL10CCPH 1m FA-CBL20CCPH 2m FA-CBL02CCPHF Cylindrical bar terminal 0.2m FA-CBL05CCPHF 0.5m FA-CBL07CCPHF 0.7m FA-CBL02CCPHP One-touch connector 0.2m FA-CBL02CCPHY Y-shaped solderless terminal 0.2m FA-CBL03CCPHY 0.3m FA-CBL05CCPHY 0.5m FA-CBL07CCPHY 0.7m FA-CBL10CCPHY 1m FA-CBL15CCPHY 1.5m FA-CBL20CCPHY 2m FA-CBL05PSBH4F With a female connector on one end 5m FA-CBL05PSBH4M With a male connector on one end 5m FA-CBL10PWSB7F Ver. 1.00, Cable with a built-in power cable With a female connector on one end 10m FA-CBL10PWSB7M With a male connector on one end 10m FA-CBL01PWSB7MF With a male and female connectors 1m
- CC-Link cable terminated parts set
-
Model Specifications FA-R100SET Round solderless terminal type, Quantity: 100 FA-Y100SET Y-shaped solderless terminal type, Quantity: 100

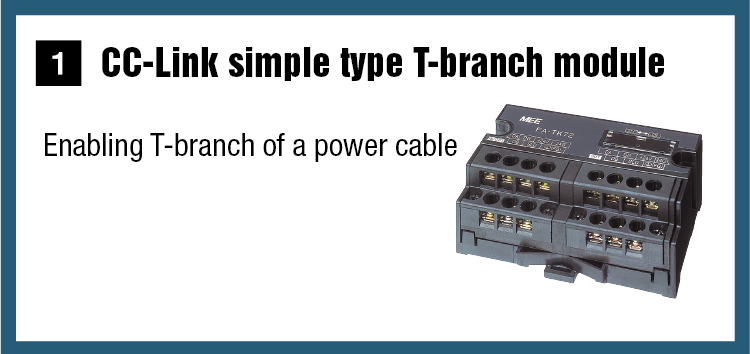

- CC-Link simple type T-branch module
-
* The table can be scrolled to the right.
Model Specifications FA-TK72 Simple type Built-in 110Ω terminating resistor (Switching between on and off) M3 screw
- CC-Link simple type T-branch module
-
* The table can be scrolled to the right.

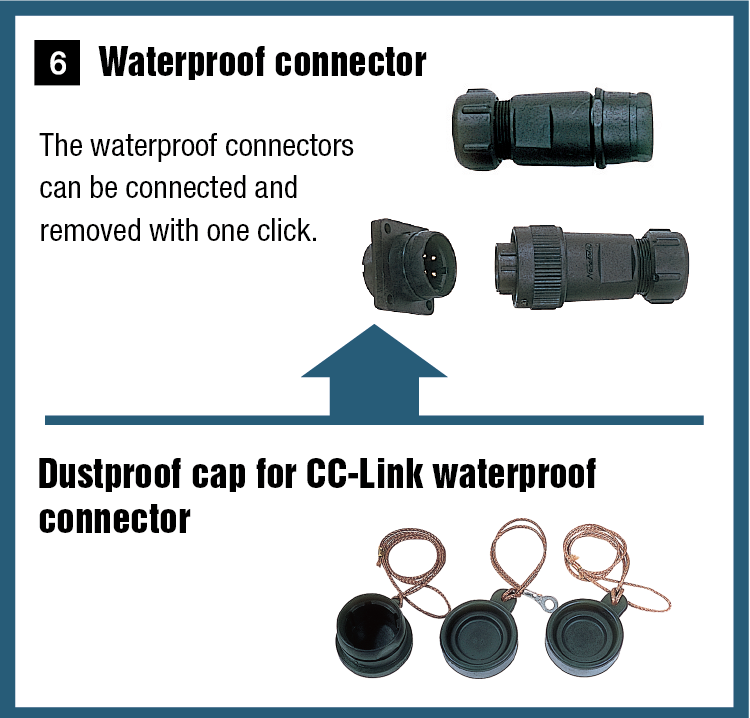

- CC-Link waterproof connector
-
* The table can be scrolled to the right.
Model Specifications FA-204-AdF6 4-pin adapter Female (connecting to the plug, FA-204-PM*) Packing diameter: φ6 FA-204-AdF8 Packing diameter: φ8 FA-204-AdF10 Packing diameter: φ10 FA-204-AdF12 Packing diameter: φ12 FA-204-AdM6 Male (connecting to the plug, FA-204-PF*) Packing diameter: φ6 FA-204-AdM8 Packing diameter: φ8 FA-204-AdM10 Packing diameter: φ10 FA-204-AdM12 Packing diameter: φ12 FA-207-AdF6 7-pin adapter Female (connecting to the plug, FA-207-PM*) Packing diameter: φ6 FA-207-AdF12 Packing diameter: φ8 FA-207-AdM6 Male (connecting to the plug, FA-207-PF*) Packing diameter: φ6 FA-207-AdM8 Packing diameter: φ8 FA-207-AdM12 Packing diameter: φ12 FA-204-PF6 4-pin plug Female Packing diameter: φ6 FA-204-PF8 Packing diameter: φ8 FA-204-PF10 Packing diameter: φ10 FA-204-PF12 Packing diameter: φ12 FA-204-PM6 Male Packing diameter: φ6 FA-204-PM8 Packing diameter: φ8 FA-204-PM10 Packing diameter: φ10 FA-204-PM12 Packing diameter: φ12 FA-207-PF6 7-pin plug Female Packing diameter: φ6 FA-207-PF8 Packing diameter: φ8 FA-207-PF10 Packing diameter: φ10 FA-207-PF12 Packing diameter: φ12 FA-207-PM8 Male Packing diameter: φ8 FA-207-PM10 Packing diameter: φ10 FA-207-PM12 Packing diameter: φ12 FA-204-RF 4-pin receptacle Female FA-204-RM Male FA-207-RF 7-pin receptacle Female FA-207-RM Male FA-CONW4P110E Built-in 110Ω terminating resistor (4-pin) Male FA-CONW7P110E Built-in 110Ω terminating resistor (7-pin) Male
- Dustproof cap for CC-Link waterproof connector
-
Model Specifications FA-NRW-20-AdCa For adapter Used for FA-204-AdM*/AdF*, FA-207-AdM*/AdF* (IP67 non compliant) FA-NRW-20-PCa1 For plug Used for FA-204-PM*/PF*, FA-207-PM*/PF* (IP67 non compliant) FA-NRW-20-RCa For receptacle Used for FA-204-RM/RF, FA-207-RM/RF, FA-TW43/73 (IP67 non compliant)

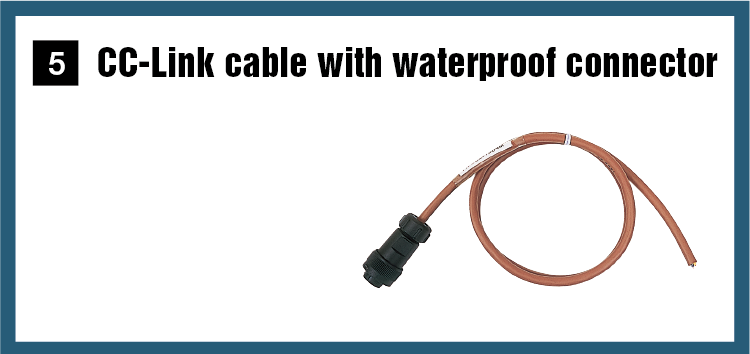

- Cable with CC-Link waterproof connector
-
* The table can be scrolled to the right.
Model Supported version Specifications Cable length FA-CBL05PSBH4F Ver. 1.10 With a female connector (FA-204-PF8) on one end 5m FA-CBL05PSBH4M With a male connector (FA-204-PM8) on one end 5m FA-CBL10PWSB7F Ver. 1.00, Cable with a built-in power cable With a female connector (FA-207-PF12) on one end 10m FA-CBL10PWSB7M With a male connector (FA-207-PM12) on one end 10m FA-CBL01PWSB7MF With male connector (FA-207-PM12) and female connector (FA-207-PF12) 1m
