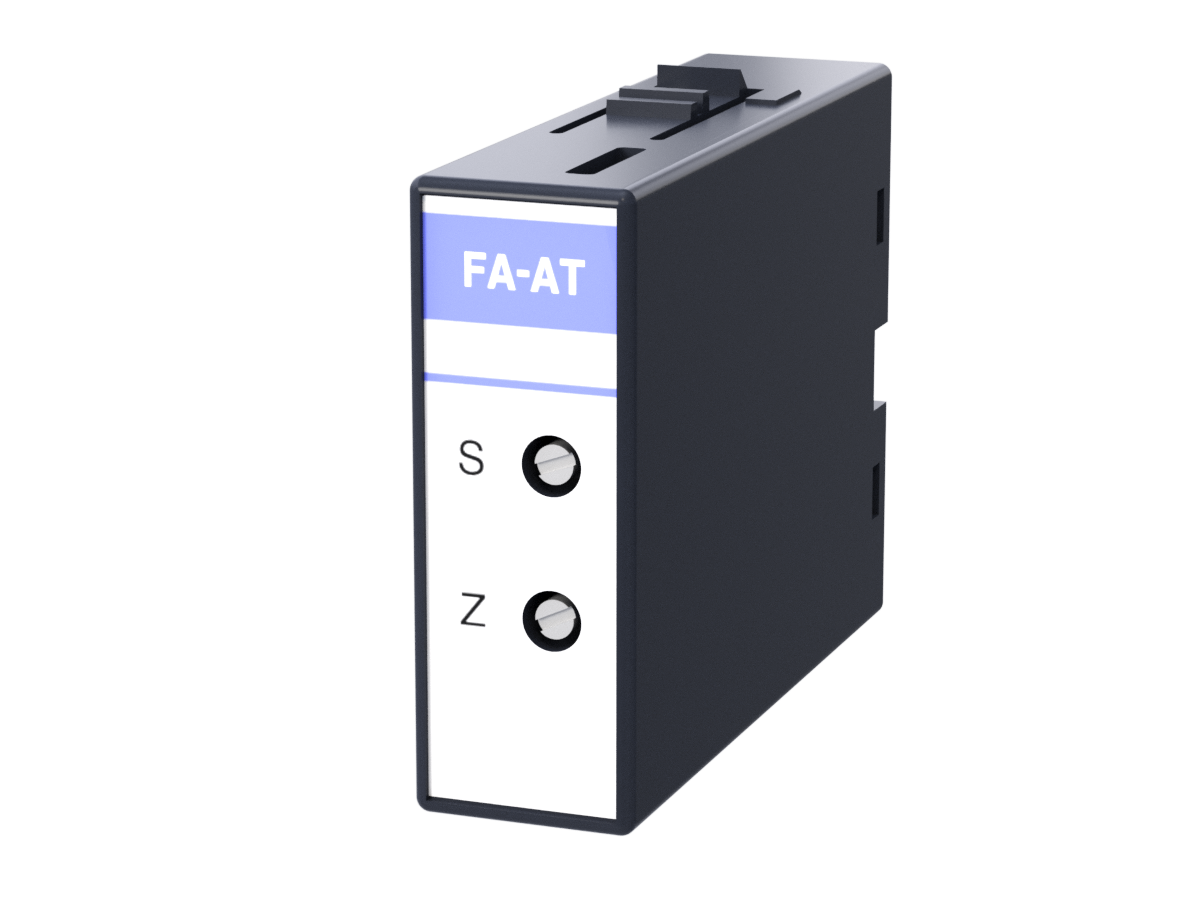

- [Input type] CT input signal conversion module
FA1-AT1CT-1-6
- Features
- Specifications
- External Dimensions・
Product CAD Data - Wiring diagrams and connection examples・
Note - Catalogs・
New Product Releases - Manual
- Technical information
（Technical News） - Downloads
- Video
- Related products
Features
-
- Product overview:
-
Analog signals from the connected devices such as sensors can be
converted to signals suitable for a programmable controller (example:
from a temperature signal to a voltage signal).
Data from sensors can be visualized easily, and small-scale IoT can be
introduced.
- Merit.1
- This module converts a resistance CT input into a voltage output. (Isolation between input and output is provided.)
- Merit.2
- The module can be mounted/removed to/from an installation base unit easily.
| Sales status | On sale |
|---|
Basic specifications
| Item | Specifications | |
|---|---|---|
| Model | FA1-AT1CT-1-6 | |
| Category | Time and wire saving devices | |
| Connected device | Programmable controller | |
| Network interface module | ||
| Series of connected devices | MELSEC iQ-R | |
| MELSEC-Q | ||
| MELSEC-L | ||
| MELSEC iQ-F | ||
| MELSEC-F | ||
| CC-Link IE TSN | ||
| CC-Link IE Field | ||
| CC-Link IE Field Basic | ||
| CC-Link | ||
| Other PLC | ||
| Computers from various manufacturers | ||
| Product category | Analog signal converter | |
| Delivery date | - | |
Specifications
General specifications
| Item | Specifications | |
|---|---|---|
| Operating ambient temperature | 0 to 55℃ | |
| Storage ambient temperature | -25 to 75℃ | |
| Operating ambient humidity | 5 to 95%RH, no condensation | |
| Storage ambient humidity | 5 to 95%RH, no condensation | |
| Vibration resistance ( With intermittent vibration ) | 5 to 8.4Hz : Half amplitude 3.5mm | |
| 8.4 to 150Hz : Acceleration 9.8m/s2 | ||
| Number of sweeps : 10 times in each direction X, Y, and Z | ||
| Vibration resistance ( With continual vibration ) | 5 to 8.4Hz : Half amplitude 1.75mm | |
| 8.4 to 150Hz : Acceleration 4.9m/s2 | ||
| Shock resistance | 147m/s2, 3 times in each direction X, Y, and Z(Applicable standards : JIS B 3502, IEC61131-2) | |
| Operating atmosphere | Free of corrosive gases | |
| Operating altitude *1 | 2000m or less | |
| Installation location | Inside the control panel *4 | |
| Overvoltage category *2 | II or less | |
| Pollution degree *3 | 2 or less | |
| Precautions | *1 Do not use or store the module under pressure higher than the atmospheric pressure at an altitude of 0 meters. Doing so may cause malfunction. When using the module under pressure, please consult your local Mitsubishi Electric representative. |
|
| *2 This indicates the assumption that the equipment is connected to a power distribution system, ranging from a public electrical power distribution network down to machinery within the premises. Category II applies to equipment for which electrical power is supplied from fixed facilities. The surge voltage withstand level for equipment with the rated voltage of up to 300V is 2500V. | ||
| *3 This index indicates the degree to which conductive material is generated in terms of the environment in which the equipment is used. In pollution degree 2, only nonconductive pollution occurs. A temporary conductivity caused by condensation must be expected occasionally. |
||
| *4：The enclosure is suitably designed for those specific environmental conditions, as applicable, and enclosure rate meets IP20 and minimum type 1 of UL 50. | ||
Product specifications
| Item | Specifications | |
|---|---|---|
| No. of points | 1 (1 channel) | |
| Input : Input range (Primary current) | 0 to 5AAC/0 to 50AAC/0 to 100AAC/0 to 600AAC | |
| Input : Input range (Secondary current) | 0 to 1.67mAAC/0 to 16.67mAAC/0 to 33.33mAAC/0 to 66.7mAAC | |
| Input : Input frequency | 50/60Hz | |
| Disconnection detection function | Unavailable | |
| Accuracy(percentage of full scale) : Reference accuracy | +-0.5% or less (surrounding air temperature: 25°C+-5°C) | |
| Accuracy(percentage of full scale) : Linearization tolerance | +-1.0% or less | |
| Output (programmable controller side) : Output signal | 1 to 5V | |
| Output (programmable controller side) : Output allowable load resistance | 10kΩ or more | |
| Response speed | 400ms or less *1 | |
| Zero/span adjustment | Zero adjustment range: -2 to 2%, span adjustment range: 98 to 102% | |
| Power supply | 24VDC+-10% (Supplied from the installation base unit) | |
| Current consumption (24VDC) | 28mA or less | |
| Insulation method | Transformer | |
| Withstand voltage, insulation resistance | Between input, output, and power supply: 750VAC for 1 minute, 10MΩ or more | |
| Weight | Approx. 30g | |
| Precautions | *1 Time from when a startup pulse is input until the output level reaches 90% | |
