- Analog signal cable with ferrules
FA1-CB2L10S1B2-4
- Features
- Specifications
- External Dimensions・
Product CAD Data - Wiring diagrams and connection examples・
Note - Catalogs・
New Product Releases - Manual
- Technical information
（Technical News） - Downloads
- Video
- Related products
Features
-
- Product overview:

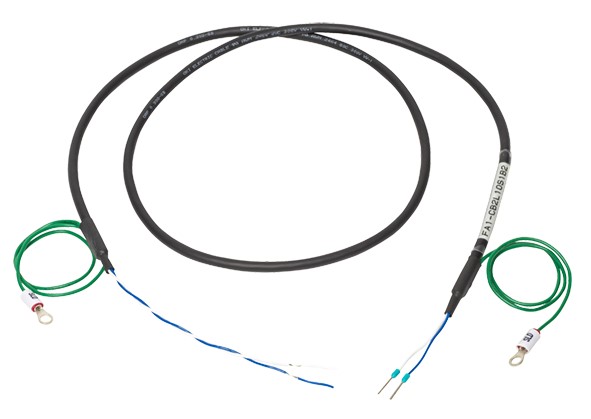

- This is an analog signal cable with ferrules (for 1 channel).
- Merit.1
- Current/voltage settings are selectable for each channel.
- Merit.2
- A noise-resistant shielded cable can be connected to each channel.
- Merit.3
- Terminal processing of cables is not required because ferrules are attached.
| Sales status | On sale |
|---|
Basic specifications
| Item | Specifications | |
|---|---|---|
| Model | FA1-CB2L10S1B2-4 | |
| Category | Time and wire saving devies | |
| Connected device | Programmable controller | |
| Series of connected devices | MELSEC iQ-R | |
| MELSEC iQ-F | ||
| Other PLC | ||
| CC-Link IE TSN | ||
| CC-Link IE Field | ||
| Product category | Connection cable | |
| Delivery date | - | |
Specifications
General specifications
| Item | Specifications | |
|---|---|---|
| Operating ambient temperature | 0 to 55℃ | |
| Storage ambient temperature | -25 to 75℃ | |
| Operating ambient humidity | 5 to 95%RH, no condensation | |
| Storage ambient humidity | 5 to 95%RH, no condensation | |
| Vibration resistance ( With intermittent vibration ) | 5 to 8.4Hz : Half amplitude 3.5mm | |
| 8.4 to 150Hz : Acceleration 9.8m/s2 | ||
| Number of sweeps : 10 times in each direction X, Y, and Z | ||
| Vibration resistance ( With continual vibration ) | 5 to 8.4Hz : Half amplitude 1.75mm | |
| 8.4 to 150Hz : Acceleration 4.9m/s2 | ||
| Shock resistance | 147m/s2, 3 times in each direction X, Y, and Z(Applicable standards : JIS B 3502 , IEC61131-2) | |
| Operating atmosphere | Free of corrosive gases | |
| Overvoltage category *2 | II or less | |
| Pollution degree *3 | 2 or less | |
| Precautions | *1 Do not use or store the module under pressure higher than the atmospheric pressure at an altitude of 0 meters. Doing so may cause malfunction. When using the module under pressure, please consult your local Mitsubishi Electric representative. |
|
Product specifications
| Item | Specifications | |
|---|---|---|
| Nominal cross sectional area of conductor | 0.3mm2（#22AWG） | |
| Conductor configuration | 60wire / 0.08mm | |
| Insulator outer diameter | 0.75mm | |
| Cable outer diameter | 4.9mm | |
| Conductor resistance (20°C) | 0.072Ω/m or less | |
| Withstand voltage | 2000VAC for 1 minute | |
| Insulation resistance | 100MΩ-km or more | |
| UL standard (cable area) | UL STYLE No.2464 80°C 300V | |
| Cable length | 1ｍ | |
| Weight(g) | Approx. 100 | |
External Dimensions・Product CAD Data
External Dimensions
N/A
| Name | Filename |
|---|
Product CAD Data
N/A
| Name | Filename |
|---|
Wiring diagrams and connection examples・Note
Wiring diagrams and connection examples
N/A
| Name | Filename |
|---|
Other Technical Information
N/A
| Name | Filename |
|---|
Precautions for use
N/A
| Name | Filename |
|---|
Catalogs・New Product Releases
* The table can be scrolled to the right.
| Name | Language | Document No. | Release date |
|---|---|---|---|
| Cable with Spring Clamp Terminal Block(Discrete Cable Type / Connector Type) Analog Shielded Cable with Ferrules（4MB） |
English | meic218e_218 | August 2021 |
| Analog Signal Converters（2MB） | English | MEIC220E_21Y-B | February 2025 |
| 模拟信号转换器 （2MB） | Simplified Chinese | MEIC235C_23X-A | February 2025 |
| FA Goods General Catalog Digest edition（28MB） | English | MEIC198E_209-B | March 2024 |
| FA关联产品 综合目录 摘要版（29MB） | Simplified Chinese | MEIC199C_209-B | March 2024 |
| FA Goods General Catalog Time and Wire Saving Devices（79MB） | English | MEIC202E_20Z-E | November 2024 |
