Using the sound output function of the HMI speaker. (Panel mount HMI speaker)

The speaker notifies important information accurately to the operator away from the GOT.

  • Problem
    An operator away from the HMI may not notice information on the display.
  • Solution

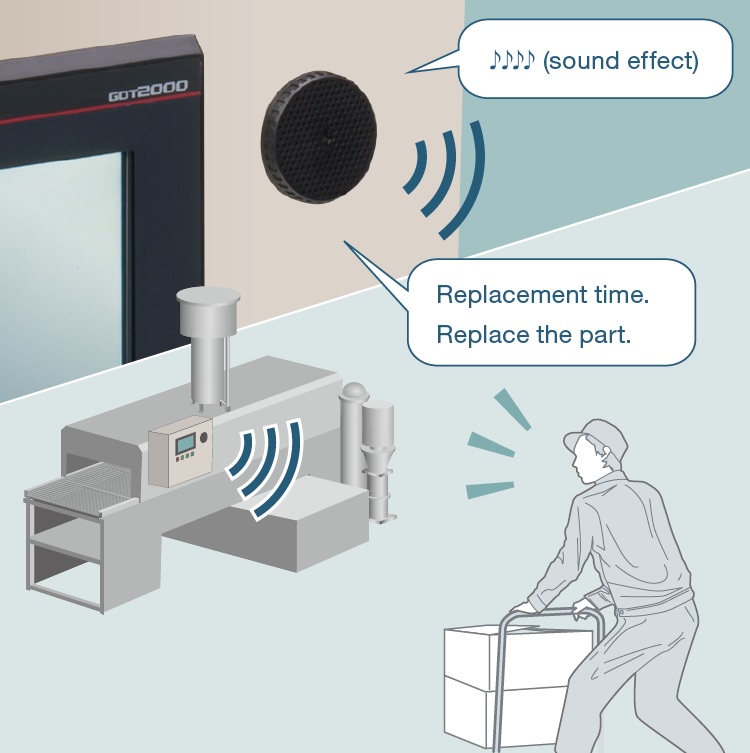

    The speaker notifies important information accurately to the operator away fromthe GOT. The servicing/maintenance/work efficiency will thus improve.
    (Sounds can be output in screen saver mode.)
  • Incorrect operation prevention

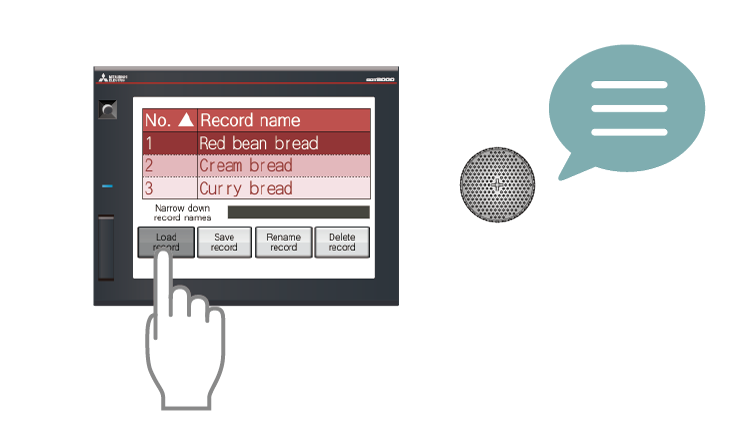

    When a touch switch is pressed, the operation guidance or precautions are given by voice.

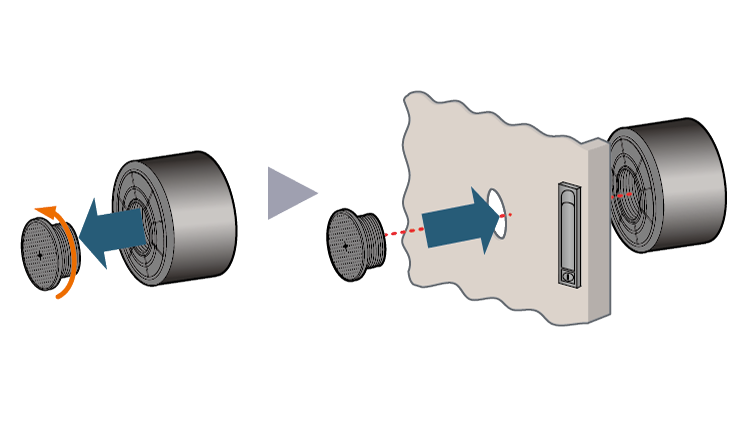

  • Easy installation
    The speaker just needs to be attached from the front and back of the panel. Only one audio cable is required to connect the speaker and the HMI.

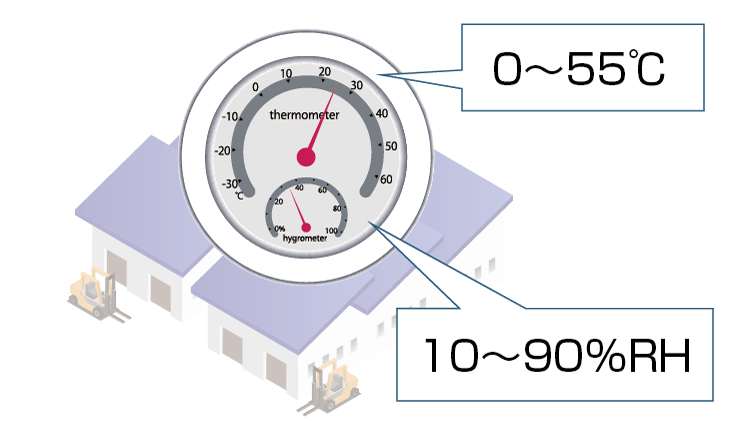

  • Environmental resistance
    The speaker can be used at temperatures and humidities in factories.
  • Volume control function
    The voice volume can be selected among 10 levels (Max. 90dB) according to the environment.

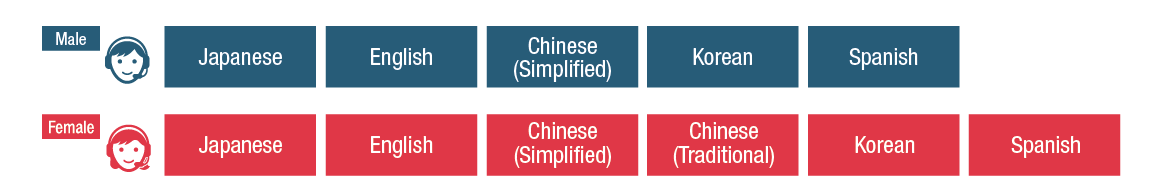

Language selection
Six languages are supported.

Model list

Panel mount HMI speaker

Model Name
FA1-GT0S04W Panel mount HMI speaker
