Replacing the controller first

By using the SSCNET conversion unit (DG2GWY31), the components in the same line can be upgraded.

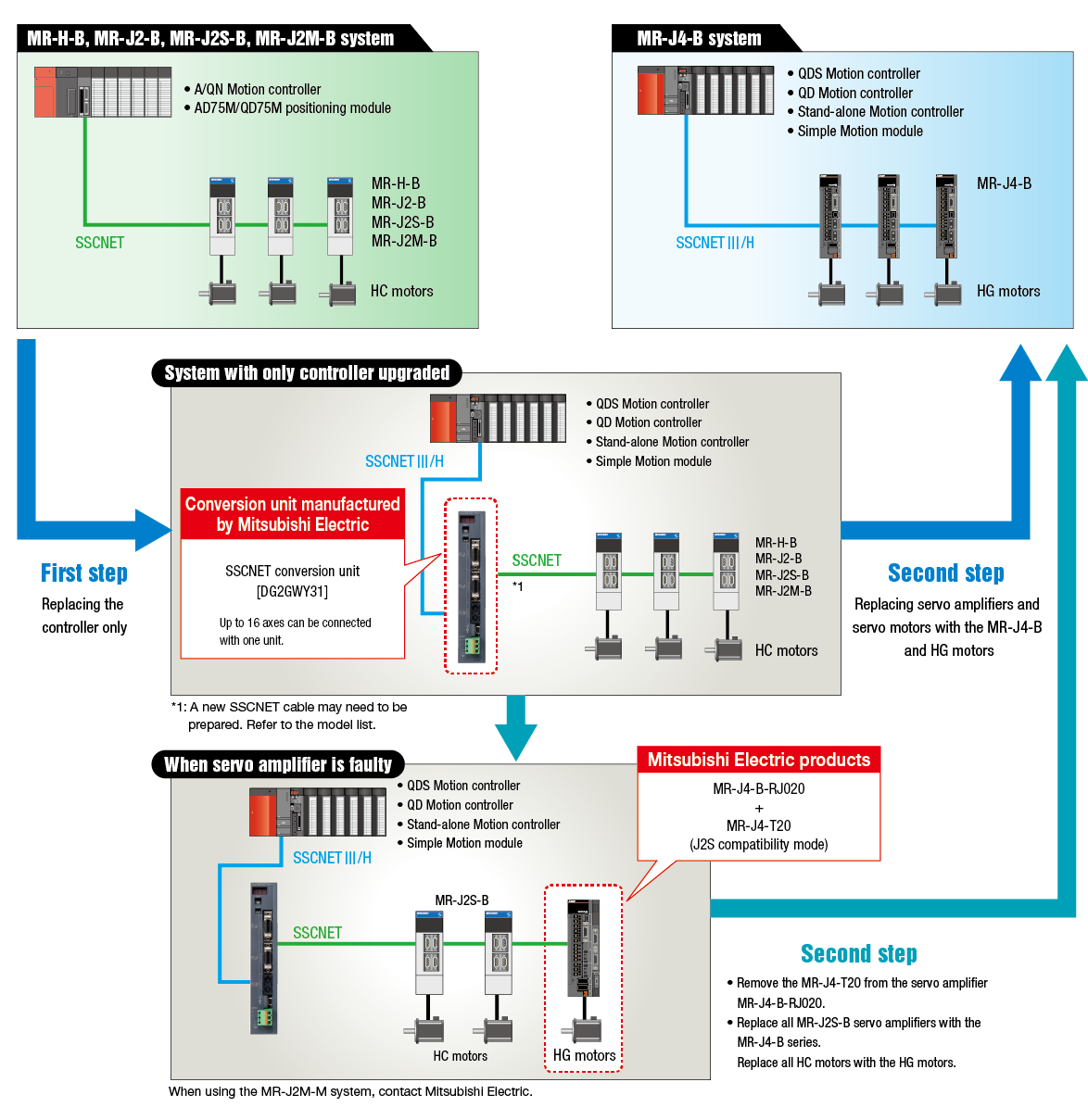

System configuration example

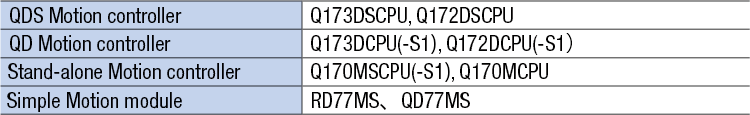

  • Connectable controllers
    * The compatible operating system for the Motion controller is SV13 and SV22 (standard) only.
    * When using the MELSEC-Q series simple Motion module, MELSOFT GX Works2 is required.
    * When using the MELSEC iQ-R series Simple Motion module, MELSOFT GX Works3 is required.

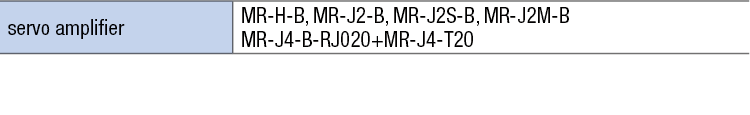

  • Connectable servo amplifiers

Procedures for converting parameters for the upgrade

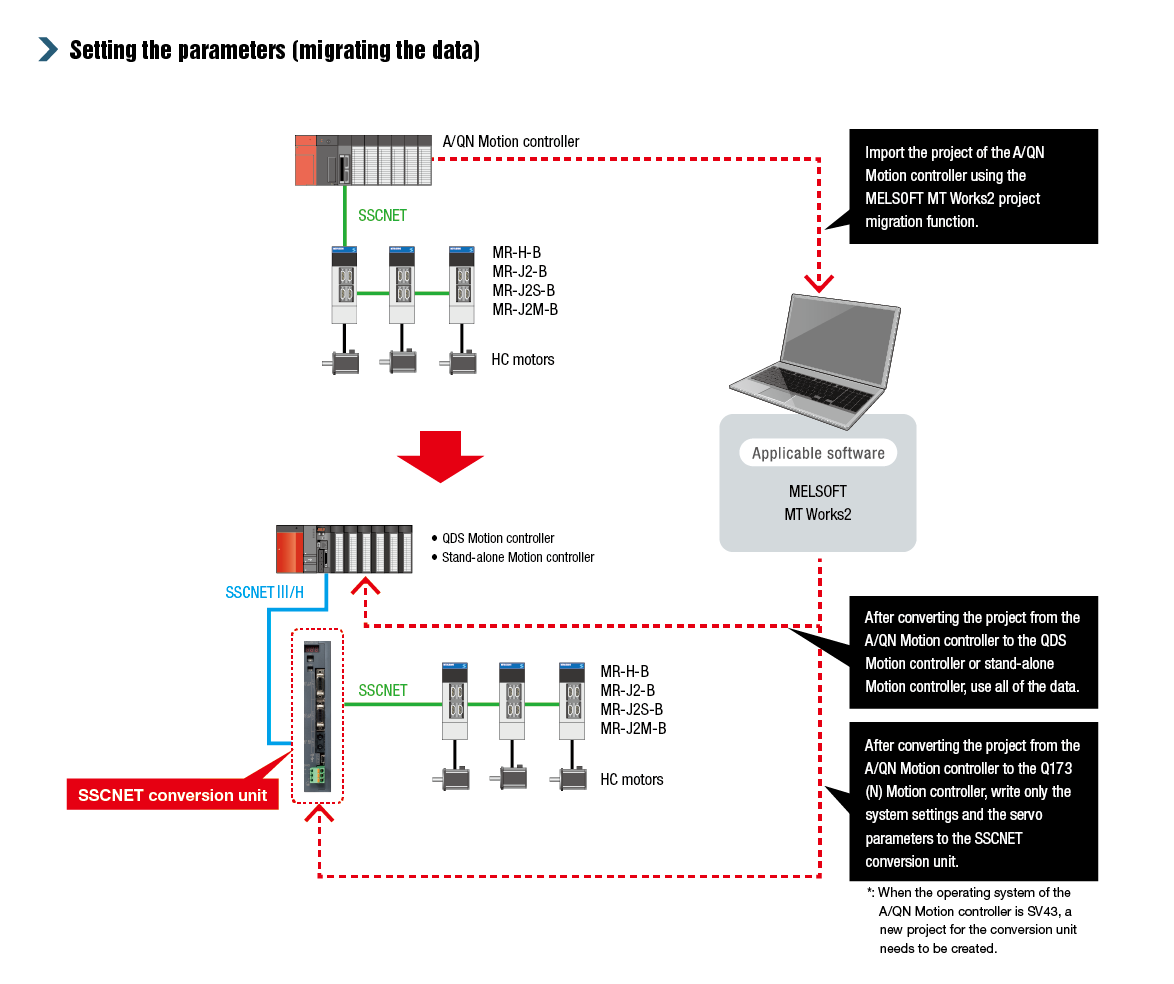

Replacing the A/QN Motion controller with the QDS Motion controller

● Applicable Motion controllers
　A171SHCPU(N)/A172SHCPU(N)/A173UHCPU/A273UHCPU(-S3)/Q172CPU(N)/Q173CPU(N)
● Applicable operating system
　Only SV13/SV22/SV43 (standard)

Setting the parameters (migrating the data)
* For details, refer to the User's Manual (Detailed) of each module.

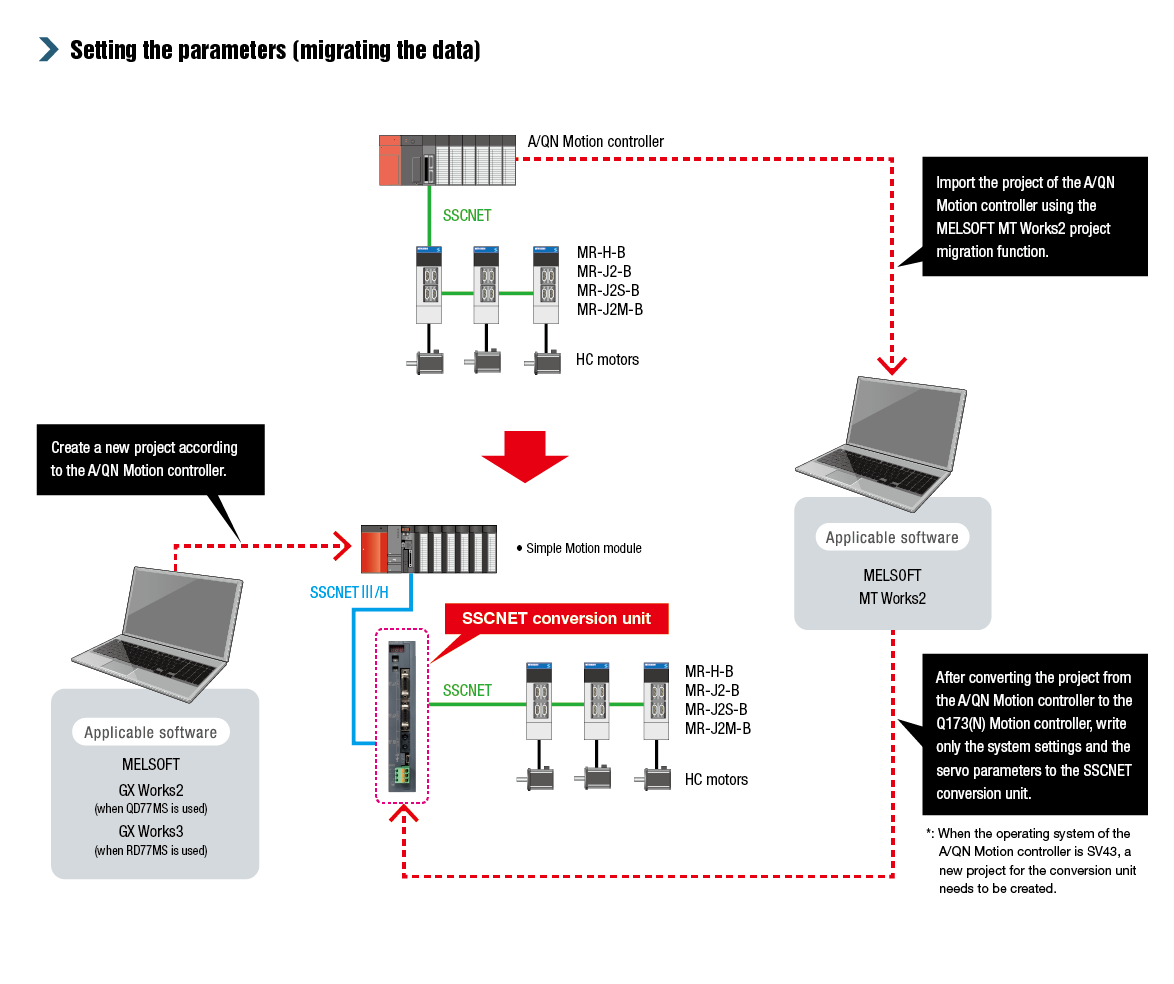

Replacing the A/QN Motion controller with the Simple Motion module

● Applicable Motion controllers
　A171SHCPU(N)/A172SHCPU(N)/A173UHCPU/A273UHCPU(-S3)/Q172CPU(N)/Q173CPU(N)
● Applicable operating system
　Only SV13/SV22/SV43 (standard)

Setting the parameters (migrating the data)
* For details, refer to the User's Manual (Detailed) of each module.

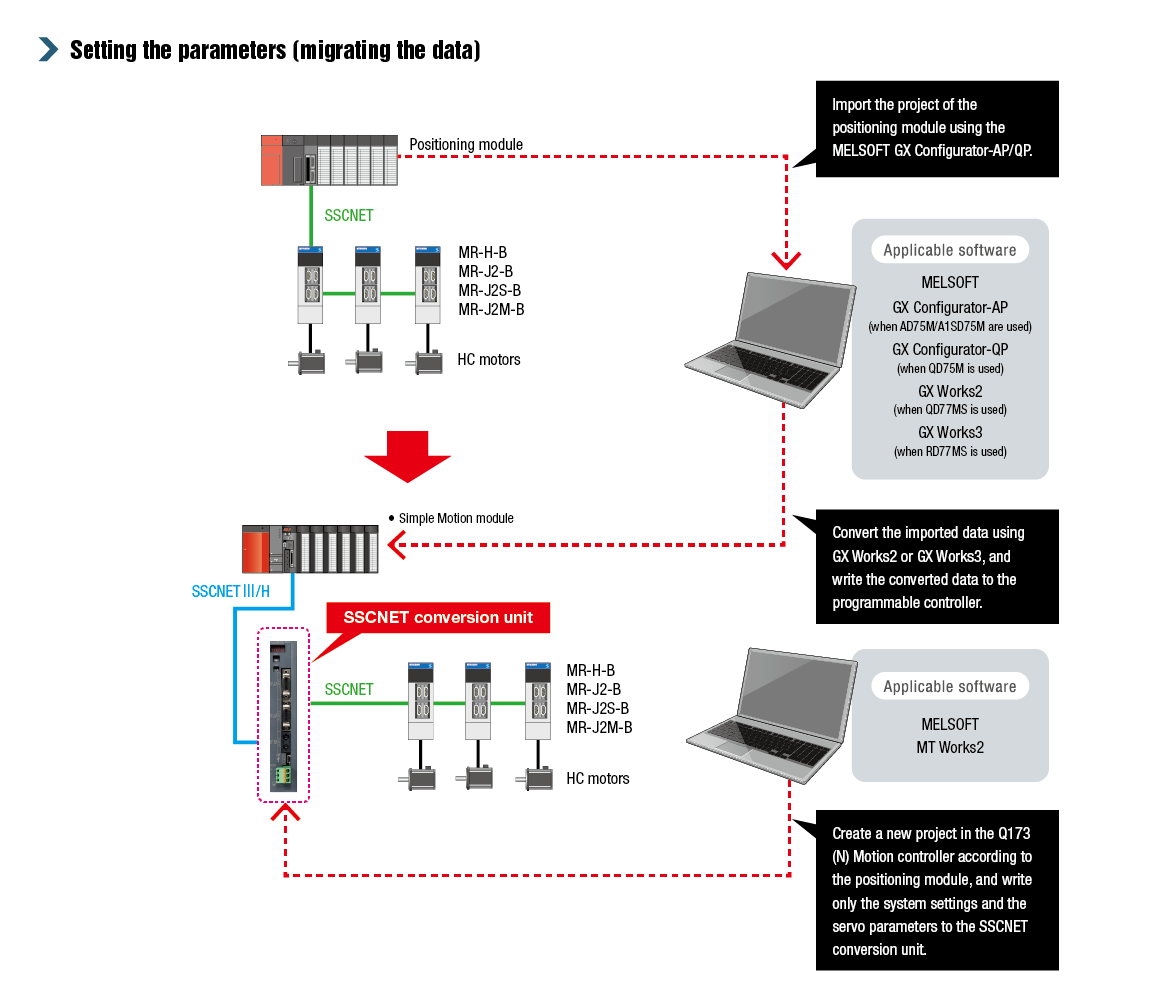

Replacing the positioning module with the Simple Motion module

● Applicable positioning modules
　AD75M/A1SD75M/QD75M

Setting the parameters (migrating the data)
* For details, refer to the User's Manual (Detailed) of each module.

Model list

SSCNET conversion unit

Model Name Specifications
DG2GWY31 SSCNET conversion unit SSCNET III/H 1 line (max. 16 axes) → SSCNET 2 lines (max. 8 axes × 2)
• 24VDC power supply connector is enclosed in the same package.
