Hydraulic control (SSCNET-compatible hydraulic control unit)

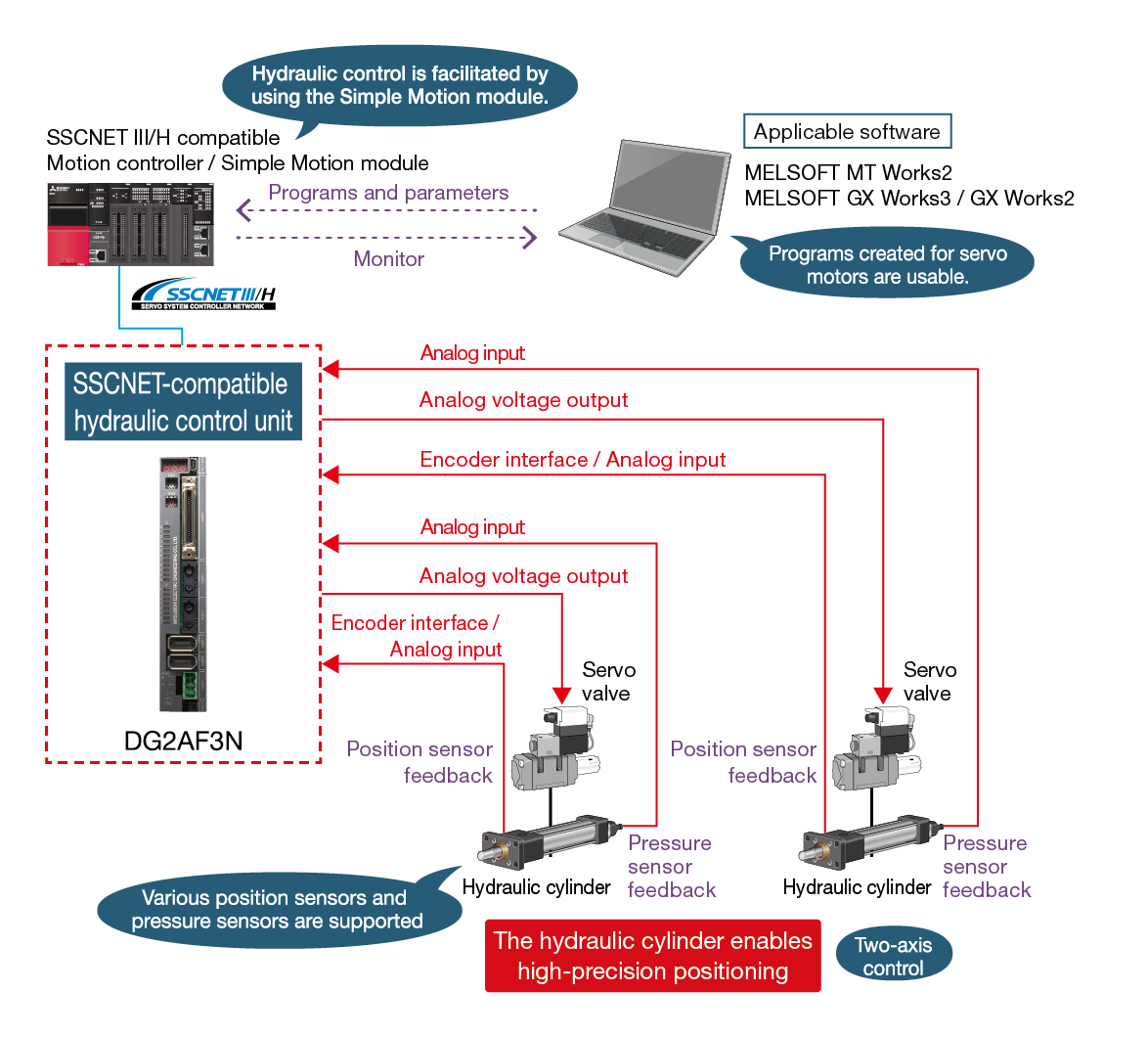

- Positioning control or pressure control by hydraulic cylinder can be performed when the SSCNET-compatible hydraulic control unit is connected with a Motion controller or Simple Motion module through SSCNET III/H, Mitsubishi Electric servo network.
The hydraulic cylinder enables high-precision positioning.
Various position sensors and pressure sensors are supported.
Pressure control is enabled without the need for an analog module.
A single hydraulic control unit enables two-axis control.
Model list
SSCNET-compatible hydraulic control unit
| Model | Name | Specifications |
|---|---|---|
| DG2AF3N | SSCNET-compatible hydraulic control unit | 2-axis control of two SSCNET III/H network stations per unit *: Power supply connector provided with the unit. |
| DG2AF3N-P01 |
Related products
Junction terminal blocks
* The table can be scrolled to the right.
| Model | Name | Connection method | Specifications |
|---|---|---|---|
| DG2SV1TB | General-purpose interface amplifier junction terminal block | Spring clamp | Can be used as a spring clamp terminal block for the SSCNET-compatible hydraulic control unit by connecting this product using the dedicated cable. |
Connection cables
* The table can be scrolled to the right.
| Model | Name | Specifications | Cable length |
|---|---|---|---|
| DG4AF3CB05 | Connection cable for SSCNET-compatible hydraulic control unit | • A dedicated cable to connect an SSCNET-compatible hydraulic control unit and a junction terminal block for general-purpose interface amplifiers | 0.5ｍ |
| DG4AF3CB10 | 1m |
