Replacing the MELSEC series
Replacing the MELSEC-AnS series
Replaceable series: MELSEC-AnS series to MELSEC iQ-R/Q/L series
-
- Panel mount
-
- DIN rail installation
-
- 1) Conversion adapter
- The existing MELSEC-AnS series wiring can be connected to the MELSEC iQ-R/Q/L series replacement programmable controller.
-

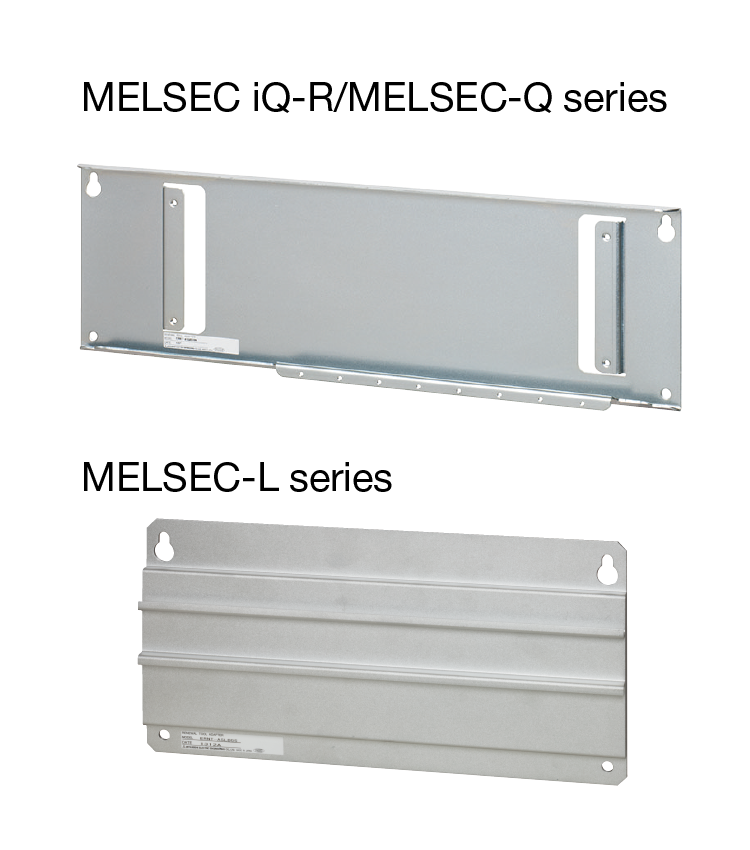

- 2) Base adapter
- A MELSEC iQ-R/Q/L series replacement programmable controller base unit can be installed using installation holes in the MELSEC-AnS series base unit.

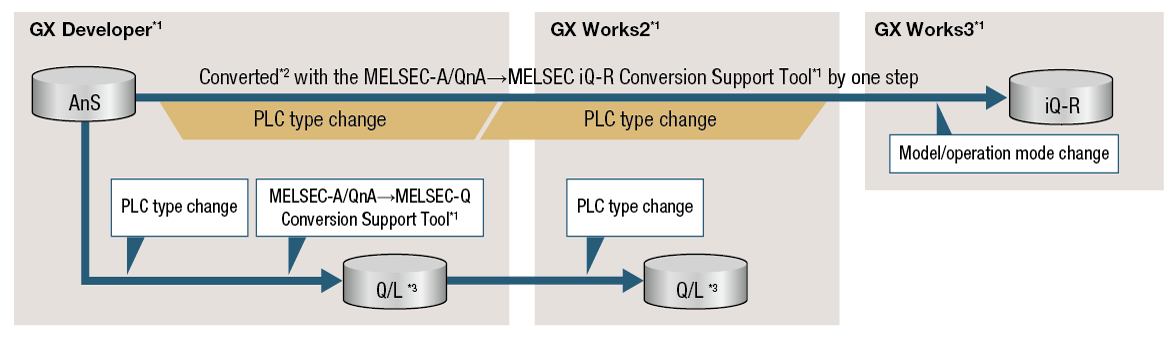

- Program Conversion Flow
- *1: Manufactured by Mitsubishi Electric
*2: GX Developer, GX Works2, and GX Works3 have to be installed.
*3: GX Developer does not support all MELSEC-Q/MELSEC-L series CPU module types.
Replacement method with consideration to wiring interference and wiring area
Replacement with the MELSEC iQ-R series
- Utilization of the Mitsubishi Electric extended temperature range base unit
- ● No supported base adapters are available.
● 2-slot type conversion adapters cannot be used.
Replacement with the MELSEC-Q series

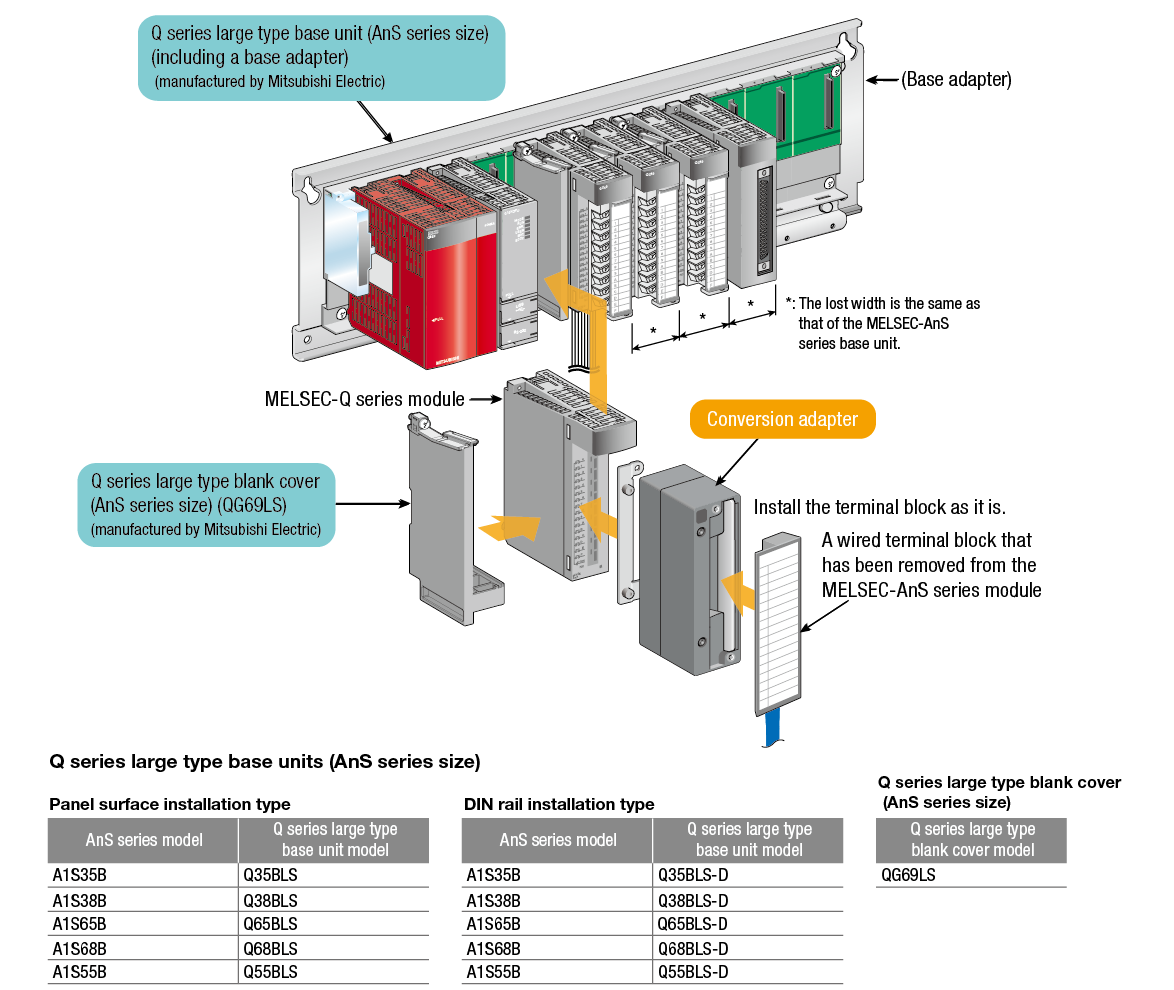

- Utilization of the Mitsubishi Electric Q series large type base unit (AnS series size)
- ● The Q series large type base unit (AnS series size) (panel surface installation type) has the same dimensions as the MELSEC-AnS series programmable controller. Drilling of additional holes is not required.
● The Q series large type base unit (AnS series size) has screw holes for securing the fixture of a conversion adapter.
● 2-slot type conversion adapters and some 1-slot type conversion adapters cannot be used. Refer to the model list on P.52 to P.55 in FAgoods General Catalog: Upgrade Tool Products.
Replacement with the MELSEC-L series
- Utilization of Mitsubishi Electric LG69 Space Module
- ● The number of units that can be installed is limited when using the LG69 space module. For details, please refer to the MELSEC-L CPU Module User's Manual (Hardware Design, Maintenance and Inspection) published by Mitsubishi Electric Corporation.
● Different system configurations may have an increased width, which could prevent the use of the base adapter. Check General Catalog: Upgrade Tool Products.
MELSEC-AnS series → MELSEC iQ-R series
Precautions
Model list
| Model | Name | |
|---|---|---|
| ERNT-ASQTXY10 | Conversion adapter for input/output modules | 1-slot type |
| ERNT-ASQTX40 | ||
| ERNT-ASQTY22 | ||
| ERNT-ASQTY40 | ||
| ERNT-ASQTY50 | ||
| ERNT-ASQTY80 | ||
| ERNT-ASLCXY81 | ||
| ERNT-2AR20X | 2-slot type | |
| ERNT-ASQT64AD | Conversion adapter for analog modules | 1-slot type |
| ERNT-ASQT68AD | ||
| ERNT-2AR68AG | ||
| ERNT-ASQT62DA | ||
| ERNT-ASQT68DA | ||
| ERNT-2AR62DD | High-speed counter module conversion adapters | 1-slot type |
| ERNT-ASLTD61 | ||
| ERNT-ASLTD62 | ||
| ERNT-2AR68TD | Conversion adapter for temperature input modules | 1-slot type |
| ERNT-2AR62RD | ||
| ERNT-2AR64TT | Conversion adapter for temperature control modules | 1-slot type |
| ERNT-2AR64TR | ||
| ERNT-2AR62TT | ||
| ERNT-2AR62TR | ||
| ERNT-2AR64TT1BW | Conversion adapter for temperature control module and disconnection detection connector conversion cable | 1-slot type + Conversion cable |
| ERNT-2AR64TR1BW | ||
| ERNT-2AR62TT1BW | ||
| ERNT-2AR62TR1BW | ||
| ERNT-ASQB38N | Base adapters | |
| ERNT-ASQB35N | ||
| ERNT-ASQB33N | ||
| ERNT-ASQB32N | ||
| ERNT-ASQB00JN | ||
| ERNT-ASQB68N | ||
| ERNT-ASQB65N | ||
| ERNT-ASQB58N | ||
MELSEC-AnS series → MELSEC-Q series
Precautions
Model list
MELSEC-AnS series → MELSEC-L series
How to select the installation method
Precautions
Model list
| Model | Name | |
|---|---|---|
| ERNT-ASLTXY10 | Conversion adapter for input/output modules | 1-module type |
| ERNT-ASLTX40 | ||
| ERNT-ASLTX80 | ||
| ERNT-ASLTY22 | ||
| ERNT-ASLTY40 | ||
| ERNT-ASLTY50 | ||
| ERNT-ASLTY80 | ||
| ERNT-ASLCXY81 | ||
| ERNT-ASLT64AD | Analog module conversation adapter | 1-module type |
| ERNT-ASLT62DA | ||
| ERNT-ASLTD61 | High-speed counter module conversion adapters | 1-module type |
| ERNT-ASLTD62 | ||
| ERNT-ASLB38 | Base adapters | |
| ERNT-ASLB35 | ||
| ERNT-ASLB33 | ||
| ERNT-ASLB32 | ||
| ERNT-ASLBJ | ||
| ERNT-ASLB68 | ||
| ERNT-ASLB65 | ||
| ERNT-ASLB58 | ||
| ERNT-ASLB55 | ||
| ERNT-ASLB52 | ||
