Servo amplifier junction terminal block
- A servo amplifier relays the signal in the connection method that matches an application.

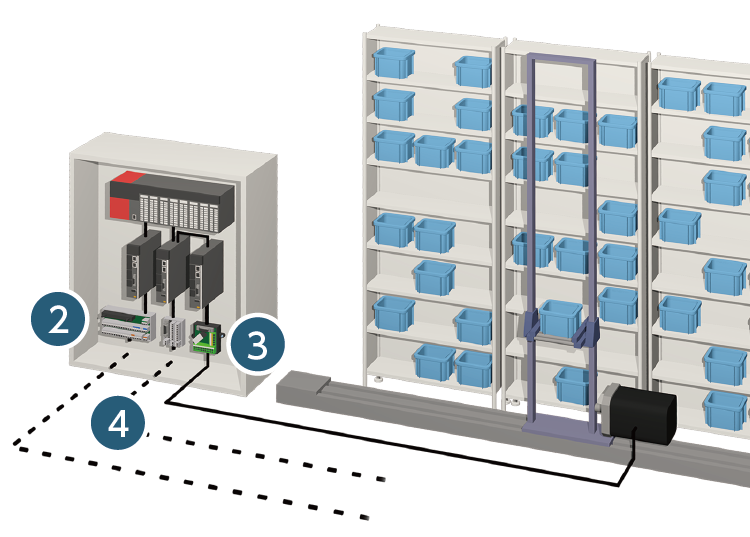

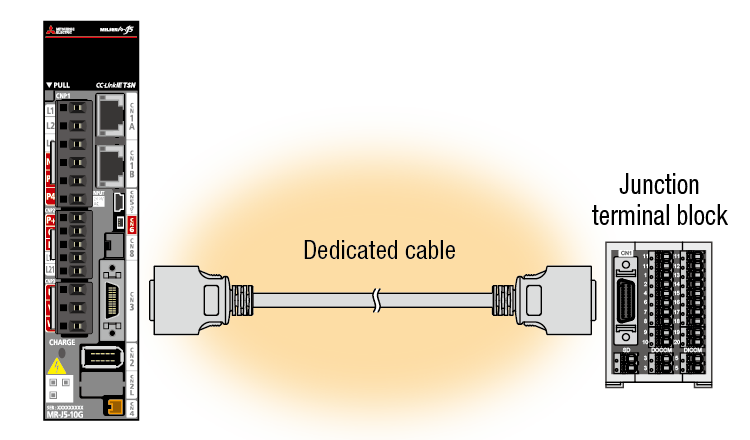

Simple wiring
A servo amplifier and a junction terminal block can be easily wired using the dedicated cable. Using a dedicated cable reduces the work to fabricate cables with connectors and ensures stable connections.
-

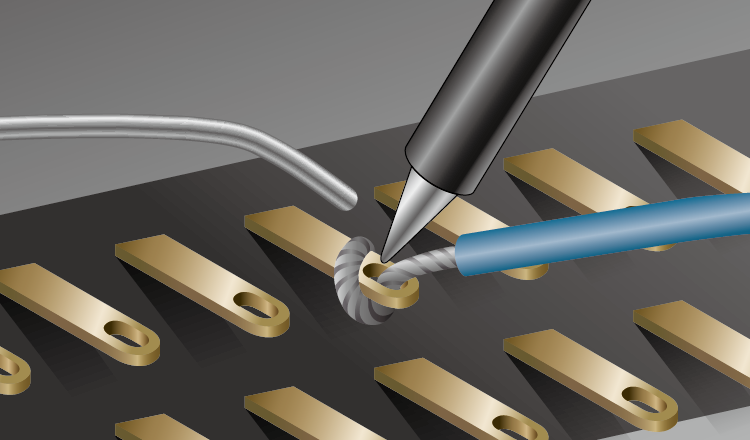

- Before
- Making your own cables requires soldering skill, which creates a quality assurance risk.
-
- After
- Simple and reliable wiring using a junction terminal block and a dedicated cable
Power supply branching with spring clamp terminals
A power supply terminal for branch wiring is provided.
The transition wiring of the power supply for digital interface is available when connected with a servo amplifier so that the number of power supplies for digital interface is minimized and the installation space and cost are saved.
-

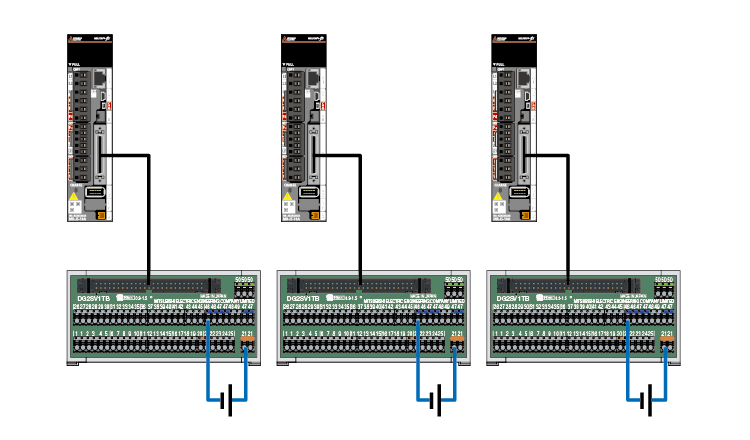

- Before
- If transition wiring is not possible, multiple power supplies for digital interfaces will be required. This significantly increases installation cost and requires more space in the panel.
-

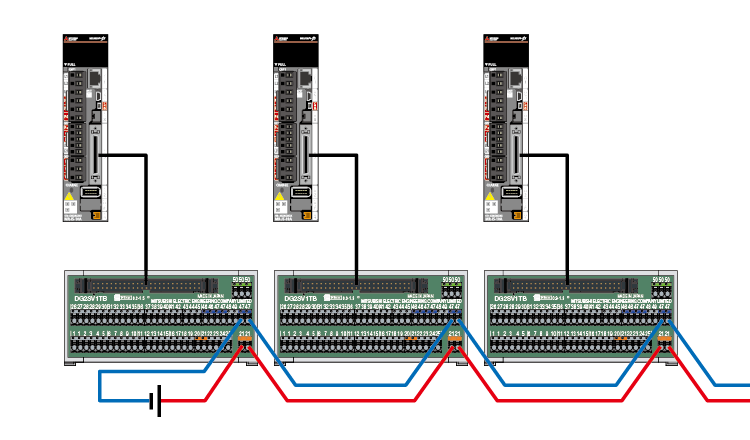

- After
- Using transition wiring reduces space required for power supplies.
Model list

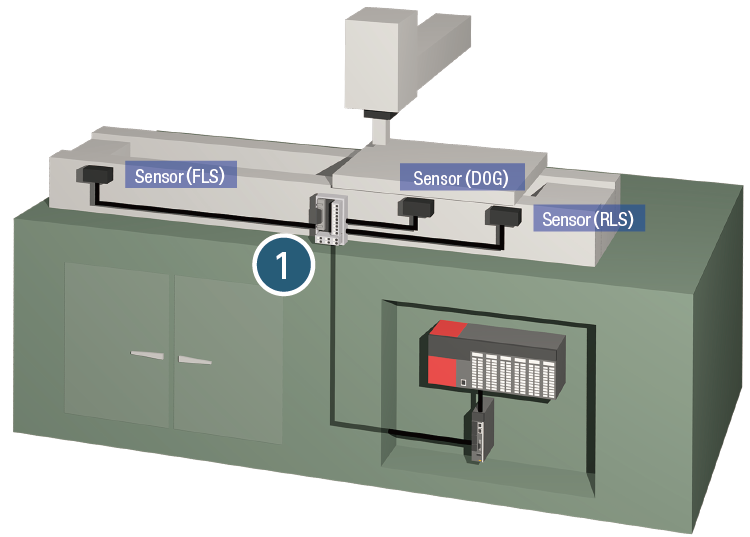

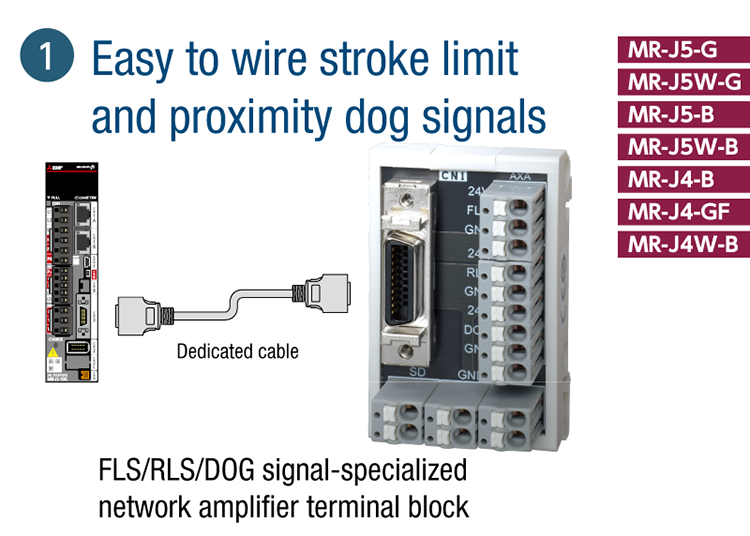

FLS/RLS/DOG signal-specialized network amplifier terminal blocks
* The table can be scrolled to the right.
| Model | No. of points | Connection method | Number of control axes |
|---|---|---|---|
| DG2SV2TB | 15-point | Dedicated for FLS/RLS/DOG signals, spring clamp type | For 1-axis |
| DG2SV2TB2 | 24-point | Dedicated for FLS/RLS/DOG signals, spring clamp type | For 2-axis |
| DG2SV2TB3 | 33-point | Dedicated for FLS/RLS/DOG signals, spring clamp type | For 3-axis |

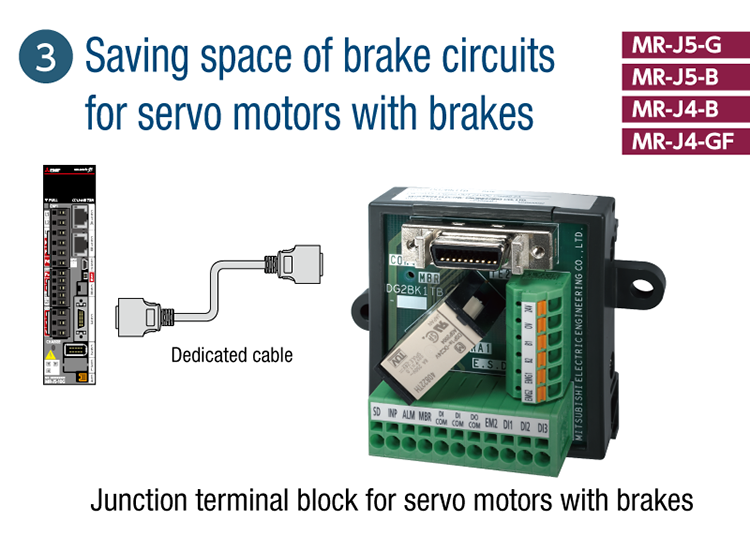

Junction terminal blocks for servo motors with brakes
* The table can be scrolled to the right.
| Model | No. of points | Connection method | Number of control axes |
|---|---|---|---|
| DG2BK1TB | 15-point | For servo motors with brakes, spring clamp type, sink/source shared type | For 1-axis |
| DG2BK1TB-D | For servo motors with brakes, spring clamp type, sink/source shared type, DIN rail installation only |

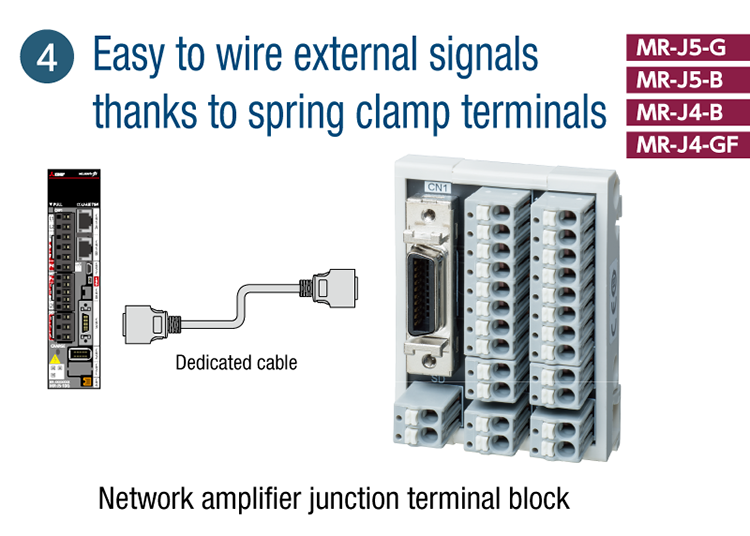

Network amplifier junction terminal block
* The table can be scrolled to the right.
| Model | No. of points | Connection method | Number of control axes |
|---|---|---|---|
| DG2SV3TB | 26-point | For network-based servo amplifier, spring clamp type, sink/source shared type | For 1-axis |

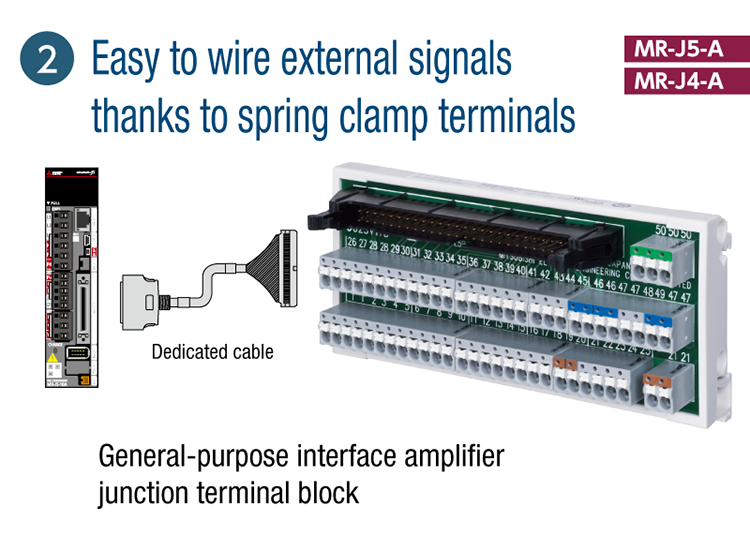

General-purpose interface amplifier junction terminal block
* The table can be scrolled to the right.
| Model | No. of points | Connection method | Number of control axes |
|---|---|---|---|
| DG2SV1TB | 60-point | For general-purpose interface servo amplifier, spring clamp type, sink/source shared type | For 1-axis |
Connection cables
* The table can be scrolled to the right.
| Model | Connected to | Specifications | Number of control axes | Cable length | |
|---|---|---|---|---|---|
| DG4SV2CB05 | Servo amplifier | Network-based servo amplifier <=> FLS/RLS/DOG signal-specialized network amplifier terminal block | For sink | For 1-axis | 0.5ｍ |
| DG4SV2CB10 | 1m | ||||
| DG4SV2CB50 | 5ｍ | ||||
| DG4SV2CB50H | For sink, long bending life | 5ｍ | |||
| DG4SV2CB100H | 10ｍ | ||||
| DG4SV2CB05-P01 | For source | 0.5ｍ | |||
| DG4SV2CB10-P01 | 1m | ||||
| DG4SV2CB50-P01 | 5ｍ | ||||
| DG4SV2CB50H-P01 | For source, long bending life | 5ｍ | |||
| DG4SV2CB100H-P01 | 10ｍ | ||||
| DG4SV3CB05 | Network-based servo amplifier <=> FLS/RLS/DOG signal-specialized network amplifier terminal block | For sink | 2-axis/3-axis servo amplifier | 0.5ｍ | |
| DG4SV3CB10 | 1m | ||||
| DG4SV3CB50 | 5ｍ | ||||
| DG4SV3CB50H | For sink, long bending life | 5ｍ | |||
| DG4SV3CB100H | 10ｍ | ||||
| DG4SV3CB05-P01 | For source | 0.5ｍ | |||
| DG4SV3CB10-P01 | 1m | ||||
| DG4SV3CB50-P01 | 5ｍ | ||||
| DG4SV3CB50H-P01 | For source, long bending life | 5ｍ | |||
| DG4SV3CB100H-P01 | 10ｍ | ||||
| DG4SV2CB05 | Network-based servo amplifier <=> Junction terminal block for servo motors with brakes | For sink/source | For 1-axis | 0.5ｍ | |
| DG4SV2CB10 | 1m | ||||
| DG4SV2CB50 | 5ｍ | ||||
| DG4SV2CB05 | Network-based servo amplifier <=> Network amplifier junction terminal block | For sink/source | For 1-axis | 0.5ｍ | |
| DG4SV2CB10 | 1m | ||||
| DG4SV2CB50 | 5ｍ | ||||
| DG4SV1CB05 | For general-purpose interface amplifiers | Sink/source shared type | 1 | 0.5ｍ | |
| DG4SV1CB10 | 1m | ||||
| DG4AF3CB05 | SSCNET-compatible hydraulic control unit | SSCNET-compatible hydraulic control unit <=> General-purpose interface amplifier junction terminal block | Sink/source shared type | 1 | 0.5ｍ |
| DG4AF3CB10 | 1m | ||||
| FA-CBL05Q7 | Positioning module | Positioning module to junction terminal block for network-compatible positioning module | Sink/source shared type | 2 | 0.5ｍ |
| FA-CBL10Q7 | 1m | ||||
| FA-CBLQ75M2J3 | Positioning module to servo amplifier (MR-J5-A/J4-A series) | Without manual pulse generator cable | 2 | 2ｍ | |
| FA-CBLQ75M2J3-P | With manual pulse generator cable | 2ｍ | |||
| FA-CBLQ75M2J3-1 | Without manual pulse generator cable | 1 | 2ｍ | ||
| FA-CBLQ75PM2J3 | 2 | 2ｍ | |||
| FA-CBLQ75PM2J3-1 | 1 | 2ｍ | |||
