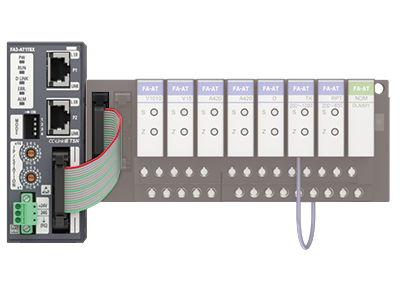

- CC-Link IE TSN/Ethernet network interface module for analog signal converter
FA3-AT1T8Y-01C
- Features
- Specifications
- External Dimensions・
Product CAD Data - Wiring diagrams and connection examples・
Note - Catalogs・
New Product Releases - Manual
- Technical information
（Technical News） - Downloads
- Video
- Related products
Features
-
- Product overview:
- Connecting the analog signal converter through a network to collect data from devices enables small-scale IoT.
- Merit.1
- Small-scale IoT system for integrated data management :
Data from sensors is collected in upper hierarchical levels through a network, visualizing the data
- Merit.2
- Saving cost and time for wiring in panel and system :
Wiring from the inside of the control panel to the device and relay box can be performed using only one Ethernet cable. Wiring can be also simply performed when increasing devices.
- Merit.3
- Easy wiring :
The analog signal converter can be connected to the programmable controller using a one-touch connector cable.
- Merit.4
- Module selectable configuration :
Modules can be selected individually, contributing to cost and space saving.
| Sales status | On sale |
|---|
Basic specifications
| Item | Specifications | |
|---|---|---|
| Model | FA3-AT1T8Y-01C | |
| Category | Network devices | |
| Connectable MELSEC module | MELSEC iQ-R series | CC-Link IE TSN master station CC-Link IE Field master station CC-Link IE Field Basic master station SLMP client |
| MELSEC iQ-F series | CC-Link IE TSN master station CC-Link IE Field master station CC-Link IE Field Basic master station SLMP client |
|
| MELSEC-Q series | CC-Link IE Field master station CC-Link IE Field Basic master station SLMP client |
|
| MELSEC-L series | CC-Link IE Field master station CC-Link IE Field Basic master station SLMP client |
|
| Connectable analog signal converter | Installation base | FA-ATB8YTB |
| Product category | Small IoT | |
| Delivery date | - | |
Specifications
General specifications
| Item | Specifications | |
|---|---|---|
| Operating ambient temperature | 0 to 55 °C | |
| Storage ambient temperature | -25 to 75 °C | |
| Operating ambient humidity | 5 to 95 %RH, no condensation | |
| Storage ambient humidity | 5 to 95 %RH, no condensation | |
| Vibration resistance ( With intermittent vibration ) | 5 to 8.4Hz | Half amplitude 3.5 mm |
| 8.4 to 150Hz | Acceleration 9.8 m/s2 | |
| Number of sweeps | 10 times each in the X, Y, and Z directions | |
| Vibration resistance ( With continual vibration ) | 5 to 8.4Hz | Half amplitude 1.75 mm |
| 8.4 to 150Hz | Acceleration 4.9 m/s2 | |
| Shock resistance | 147m/s2 3 times each in the X, Y, and Z directions |
|
| Operating atmosphere | No corrosive gases | |
| Operating altitude *1 | 0 to 2000m | |
| Installation location *2 | Inside control panel | |
| Overvoltage category *3 | II or less | |
| Pollution degree *4 | 2 or less | |
| Precautions | *1 Do not use or store the module under pressure higher than the atmospheric pressure at an altitude of 0 meters. Doing so may cause malfunction. When using the module under pressure, please consult your local Mitsubishi Electric representative. |
|
| *2 Install the module in a control panel that satisfies IP20 protection classification and Type 1 or higher level specified in UL50. Design the control panel suitable for the environment if necessary. | ||
| *3 This indicates the assumption that the equipment is connected to a power distribution system, ranging from a public electrical power distribution network down to machinery within the premises. Category II applies to equipment for which electrical power is supplied from fixed facilities. The surge voltage withstand level for equipment with the rated voltage of up to 300V is 2500V. | ||
| *4 This index indicates the degree to which conductive material is generated in terms of the environment in which the equipment is used. In pollution degree 2, only nonconductive pollution occurs. A temporary conductivity caused by condensation must be expected occasionally. | ||
Product specifications
| Item | Specifications | |
|---|---|---|
| Number of analog output points | 8 channels | |
| Analog Output range | 1 to 5 VDC (external load resistance : 10 kohm or more) | |
| I/O characteristics | Digital input range | 0 to 16000 |
| Analog output range | 1 to 5 V | |
| Accuracy (Accuracy for the maximum analog output value) | Ambient temperature : 0 to 55 °C | +/-0.3 % (+/-12 mV) |
| Ambient temperature : 25 +/- 5 °C | +/-0.1 % (+/-4 mV) | |
| Maximum resolution | 0.25 mV | |
| Note | The analog signal converter (module) accuracy is not included. | |
| Maximum conversion speed *2 | Per channel | 1 ms |
| External interface | Communication port | RJ-45 connector |
| Digital signal converter port | MIL20P connector | |
| Power supply port | Two-piece spring clamp terminal block | |
| Module installation | Mounting on a DIN rail Mounting on a control panel directly with screws (using the mounting bracket provided with the module) |
|
| Communication cable | 1Gbps | Ethernet cable that meets the 1000BASE-T standard (straight/cross cable) Category 5e or higher (double shielded, STP) |
| 100Mbps | Ethernet cable that meets the 100BASE-TX standard (straight/cross cable) Category 5 or higher (double shielded, STP) |
|
| digital signal converter cable | Include this module | A dedicated cable with a cable length of 0.1 m is included. |
| Sold separately | FA3-CB2L10MM1H20 (1 m) FA3-CB2L20MM1H20 (2 m) FA3-CB2L30MM1H20 (3 m) |
|
| Power supply port | Applicable wire size | Stranded wire or solid wire, 0.34 to 1.5 mm2 (22 to 18 AWG) |
| Applicable ferrule terminal (PHOENIX CONTACT GmbH & Co. KG) | Applicable ferrule terminal type (sleeve length, applicable wire size) : AI 0.34-10 TQ (10 mm, 0.34 mm2 (22 AWG) ) AI 0.34-8 TQ (8 mm, 0.34 mm2 (22 AWG) ) AI 0.5-10 WH (10 mm, 0.5 mm2 (20 AWG) ) AI 0.5-8 WH (8 mm, 0.5 mm2 (20 AWG) ) A 0.5-10 (10 mm, 0.5 mm2 (20 AWG) ) A 0.5-8 (8 mm, 0.5 mm2 (20 AWG) ) A 0.75-10 (10 mm, 0.75 mm2 (18 AWG) ) A 0.75-8 (8 mm, 0.75 mm2 (18 AWG) ) A 1-10 (10 mm, 1 mm2 (18 AWG) ) A 1-8 (8 mm, 1 mm2 (18 AWG) ) A 1.5-10 (10 mm, 1.5 mm2 (16 AWG) ) Crimping tool : CRIMPFOX 6 |
|
| Applicable ferrule terminal (WAGO Kontakttechnik GmbH & Co. KG) | Applicable ferrule terminal type (sleeve length, applicable wire size) : 216-302 (8 mm, 0.34 mm2 (24 to 22 AWG) ) 216-201 (8 mm, 0.5 mm2 (22 to 20 AWG) ) Crimping tool : 206-1204 |
|
| External power supply | Power supply specifications | 20.4 to 28.8VDC (24VDC: -15%, +20%) (ripple ratio: within 5%) |
| Current consumption | 0.14 A | |
| Analog signal converter | The analog signal converter also needs to be supplied with 24V DC power. For the required power supply specifications, refer to the manual of the analog signal converter. | |
| External dimensions | H (height) | 105 mm (Projection parts are not included.) |
| W (width) | 40 mm (Mounting brackets are not included.) 67 mm (Mounting brackets are included.) |
|
| D (depth) | 70 mm (Connectors are not included.) 86 mm (Connectors are included.) |
|
| Weight | 160 g | |
| Supported networks | CC-Link IE TSN | Supported |
| CC-Link IE Field | Supported | |
| CC-Link IE Field Basic | Supported | |
| SLMP (Ethernet) | Supported | |
| Network specifications for CC-Link IE TSN | Station type | Remote station |
| Certification class | Class B | |
| Communication speed | 1 Gbps 100 Mbps |
|
| Topology | Line topology Star topology Mixture of star topology and line topology |
|
| Network specifications for CC-Link IE Field Basic | Station type | Remote station |
| Communication speed | 100 Mbps | |
| Topology | Star topology | |
| Network specifications for SLMP | Station type | Server |
| Communication speed | 100 Mbps | |
| Topology | Star topology | |
External Dimensions・Product CAD Data
External Dimensions
| Name | Filename |
|---|---|
| Dimensions（63KB） | sales_fa_meefan_fa3-at1t8y-01c_outline_1.pdf |
| Dimensions（63KB） | sales_fa_meefan_fa3-at1t8y-01c_outline_2.pdf |
Product CAD Data
| Name | Filename |
|---|---|
| Dimensions（CAD 2D） | sales_fa_meefan_fa3-at1t8y-01c.dxf（2MB） |
Wiring diagrams and connection examples・Note
Wiring diagrams and connection examples
N/A
| Name | Filename |
|---|
Other Technical Information
N/A
| Name | Filename |
|---|
Precautions for use
N/A
| Name | Filename |
|---|
Catalogs・New Product Releases
* The table can be scrolled to the right.
| Name | Language | Document No. | Release date |
|---|---|---|---|
| 网络接口模块（2MB） | Simplified Chinese | MEIC225C_224-B | February 2025 |
| CC-Link IE TSN/Ethernet Network Interface Modules（1MB） | English | MEIC215E_214-D | February 2025 |
| FA Goods General Catalog Digest edition（28MB） | English | MEIC198E_209-B | March 2024 |
| FA关联产品 综合目录 摘要版（29MB） | Simplified Chinese | MEIC199C_209-B | March 2024 |
| FA Goods General Catalog Purpose-Specific Products（40MB） | English | MEIC204E_20Y-B | July 2024 |
Manual
* The table can be scrolled to the right.
Technical information（Technical News）
N/A
* The table can be scrolled to the right.
| Name | Language | Document No. | Release date |
|---|
Downloads
Profile/module FB (function block)
| Name | Filename |
|---|
Control & Communication System Profile CSP+
| Name | Filename |
|---|---|
| CSP+ profile (English version)（A）（578KB） | sales_fa_meefan_fa3-at1t8y-01c_sample_1.zip |
| CSP+ profile (Simplified Chinese version)（A）（555KB） | sales_fa_meefan_fa3-at1t8y-01c_sample_2.zip |
CSP+ is an abbreviation for Control & Communication System Profile Plus.
It is a profile that describes information (network parameter information, memory map, etc.) required for the startup,
operation and maintenance of CC-Link Family compatible devices.
Sample program
| Name | Filename |
|---|
Video
N/A
Related products
Connection cables
| Model | Length | Name | Overview |
|---|
Related products
- [Output type] Module installation base unit
- FA-ATB8YTB
Analog signals from the connected devices such as sensors can be converted to signals suitable for a programmable controller (example: from a temperature signal to a voltage signal). Data from sensors can be visualized easily, and small-scale IoT can be introduced.
