Replacing general-purpose PLCs (using a universal conversion adapter)
Replaceable series
OMRON Corporation to MELSEC iQ-R/Q series
Sharp Corporation to MELSEC iQ-R/Q series
YASKAWA Electric Corporation to MELSEC iQ-R/Q series
Fuji Electric Co., Ltd., etc. to MELSEC iQ-R/Q series
-
- Large type
-
- Small type
-
- 1) Conversion adapter
- Existing wiring for general-purpose PLCs can be connected to MELSEC iQ-R/Q series programmable controllers installed as replacements.
-
- 2) Base adapter

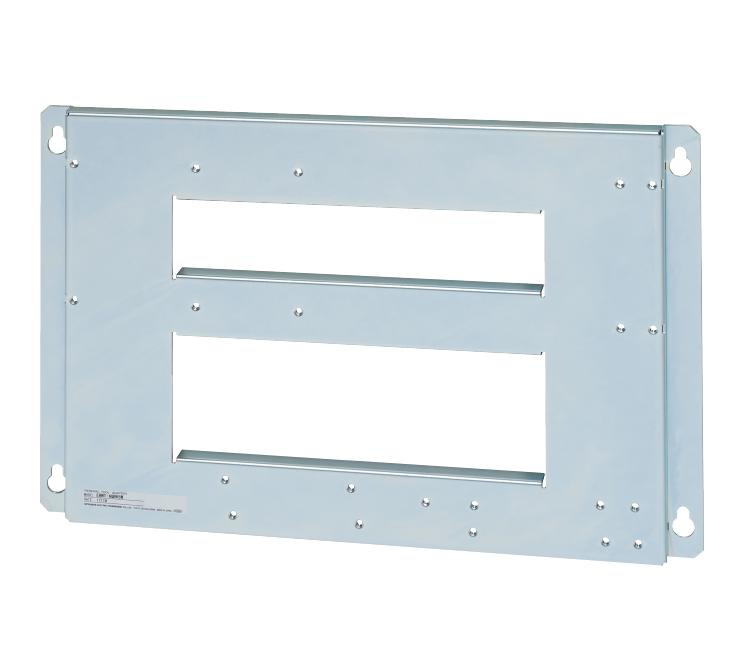

- An adapter to install a MELSEC iQ-R/Q replacement programmable controller base unit and a 3) conversion adapter support flange
-

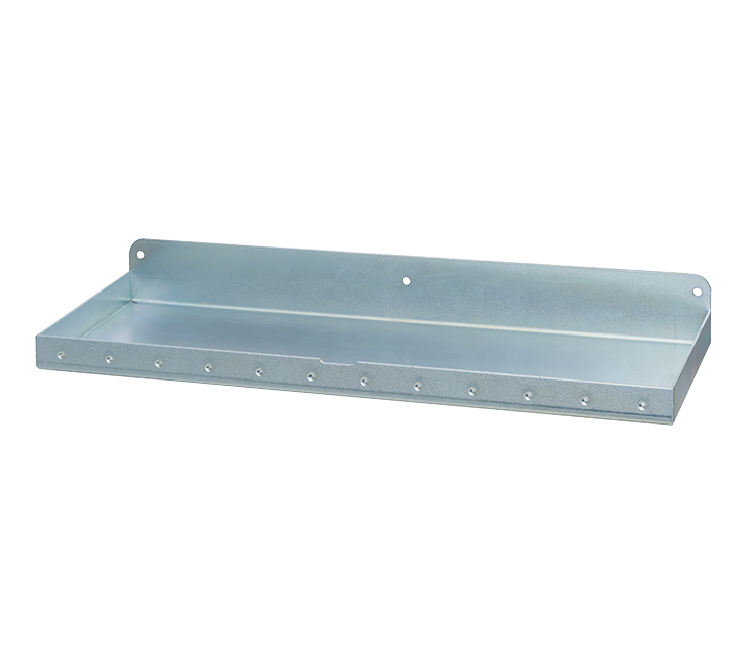

- 3) Conversion adapter support flange
- Secures the bottom of the conversion adapter. (required)
Replacement method with consideration to wiring interference and wiring area
Replacement with the MELSEC iQ-R series

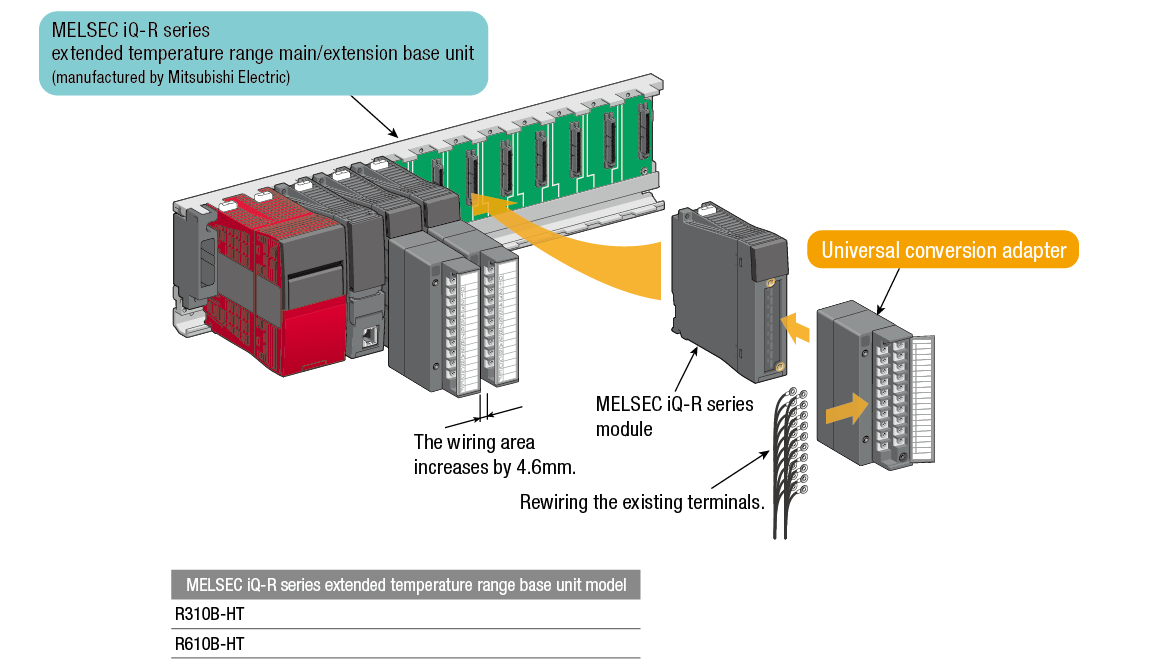

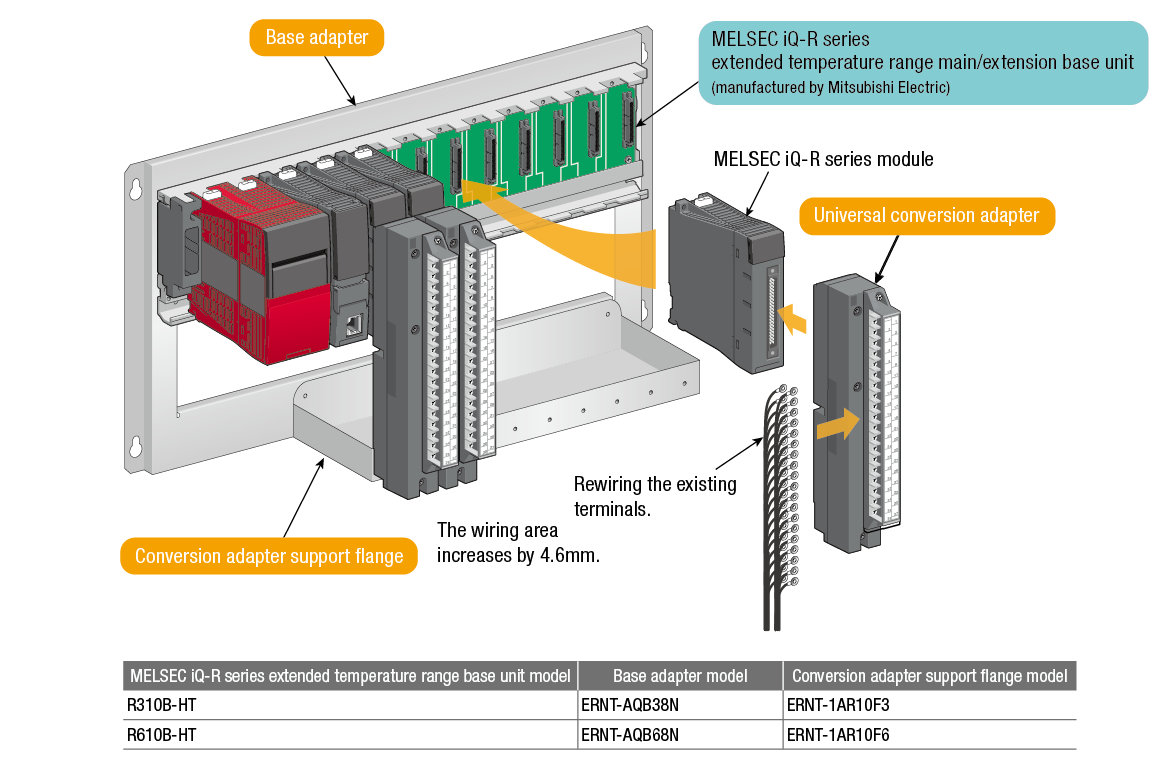

- Utilization of the Mitsubishi Electric extended temperature range base unit - Large type
- Utilization of the Mitsubishi Electric extended temperature range base unit - Small type
Replacement with the MELSEC-Q series

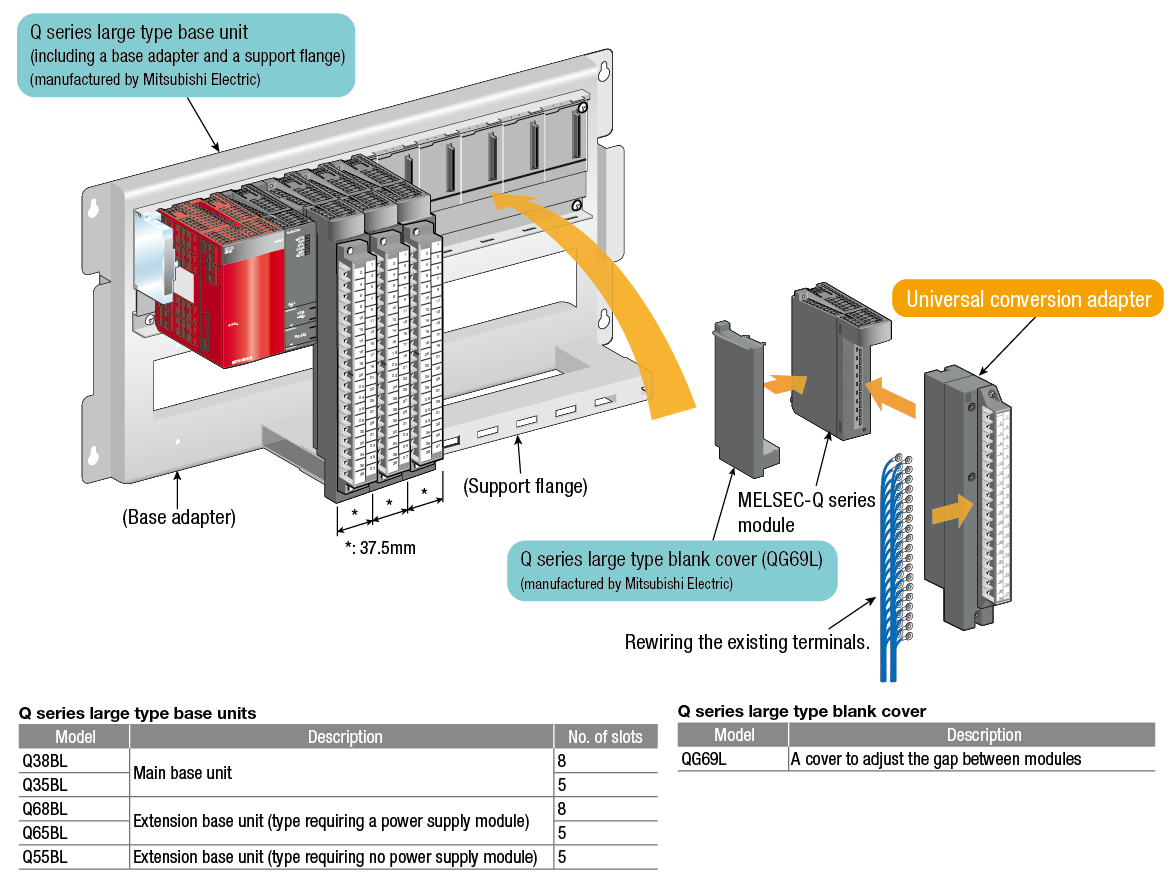

- Utilization of the Mitsubishi Electric Q series large type base unit

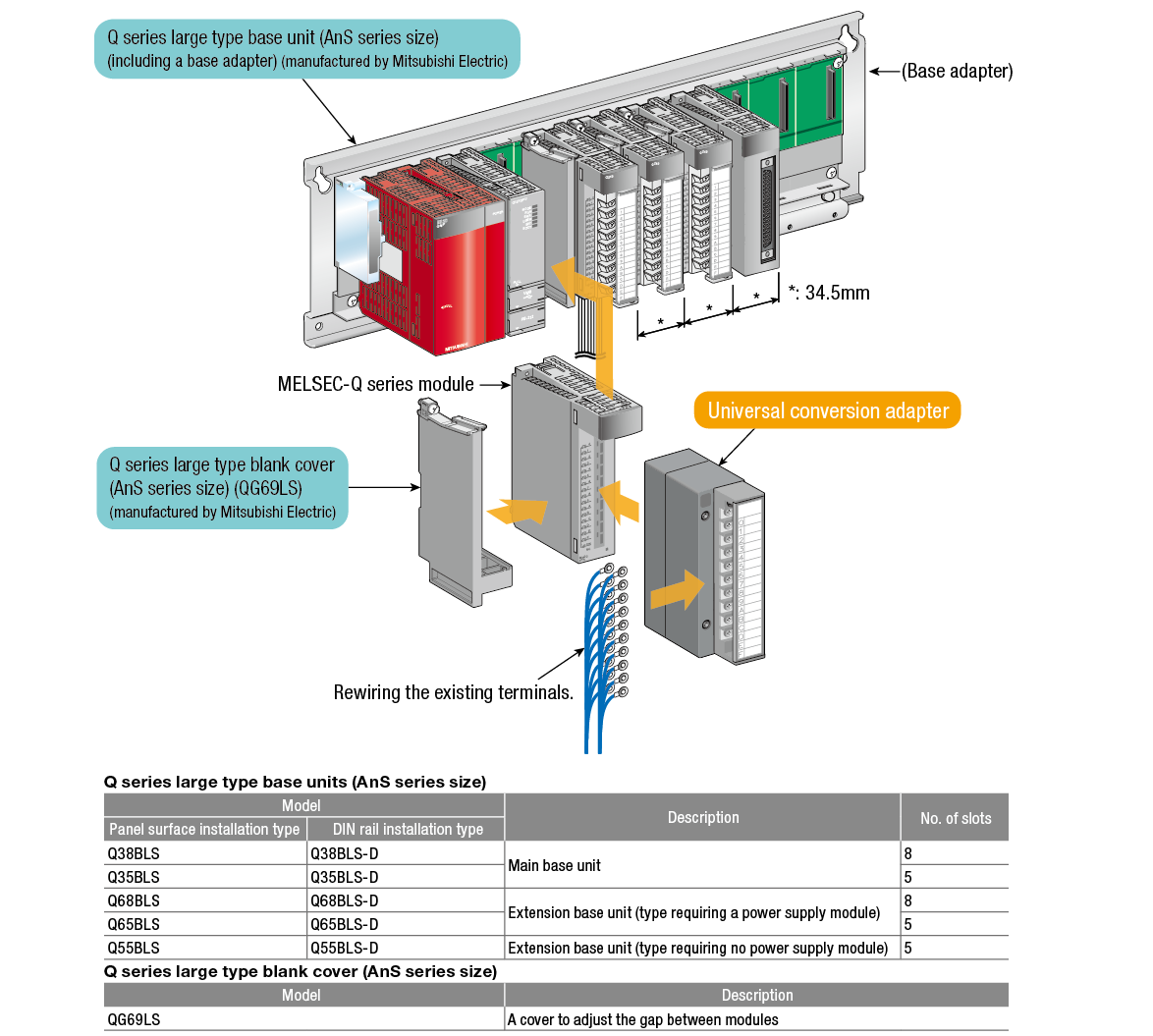

- Utilization of the Mitsubishi Electric Q series large type base unit (AnS series size)
General-purpose PLC → MELSEC iQ-R Series Universal Conversion Adapter
Modules that can be replaced using a universal conversion adapter
General-purpose PLC → MELSEC iQ-R series
Large type
Selection chart
Base adapters
Precautions
Model list
| Model | Name |
|---|---|
| ERNT-AQTB20-S1 | Conversion adapter for input/output modules, 1 slot |
| ERNT-1AR38TB | Conversion adapter for input/output modules, 1 slot |
General-purpose PLC → MELSEC iQ-R series
Small type
Selection chart
Precautions
Model list
| Model | Name |
|---|---|
| ERNT-ASQTB20 | Conversion adapter for input/output modules, 1 slot |
General-purpose PLC → MELSEC-Q Series Universal Conversion Adapter
Modules that can be replaced using a universal conversion adapter
General-purpose PLC → MELSEC-Q series
Large type
Selection chart
Conversion adapter support flange
Base adapters
Precautions
Model list
| Model | Name |
|---|---|
| ERNT-AQTB20 | Universal conversion adapter for input/output modules, 1-slot type |
| ERNT-AQTB20-S1 | Universal conversion adapter for input/output modules, 1-slot type |
| ERNT-AQTB38 | Universal conversion adapter for input/output modules, 1-slot type |
| ERNT-AQTB38-E | Universal conversion adapter for input/output modules, 1-slot type |
General-purpose PLC → MELSEC-Q series
Small type
Selection chart
Precautions
Model list
| Model | Name |
|---|---|
| ERNT-ASQTB20 | Universal conversion adapter for input/output modules, 1-slot type |
