Replacing non-Mitsubishi PLCs
- Overview
- SYSMAC C series (OMRON Corporation) to MELSEC series
- New satellite JW series (Sharp Corporation) to MELSEC series
- MEMOCON-SC GL series (YASKAWA Electric Corporation) to MELSEC series
- TOYOPUC series (JTEKT Corporation) to MELSEC eries
Replaceable serie
SYSMAC C series (OMRON Corporation) to MELSEC iQ-R/Q series
New satellite JW series (Sharp Corporation) to MELSEC iQ-R/Q series
MEMOCON-SC GL series (YASKAWA Electric Corporation) to MELSEC iQ-R/Q series
TOYOPUC-PC10G/3J series (JTEKT Corporation) to MELSEC iQ-R series
-
- Large type
-
- Small type
-

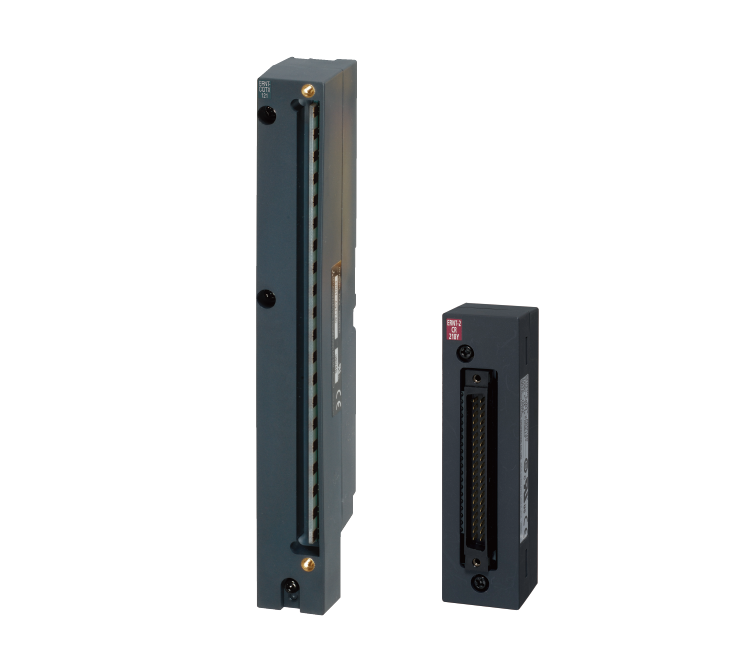

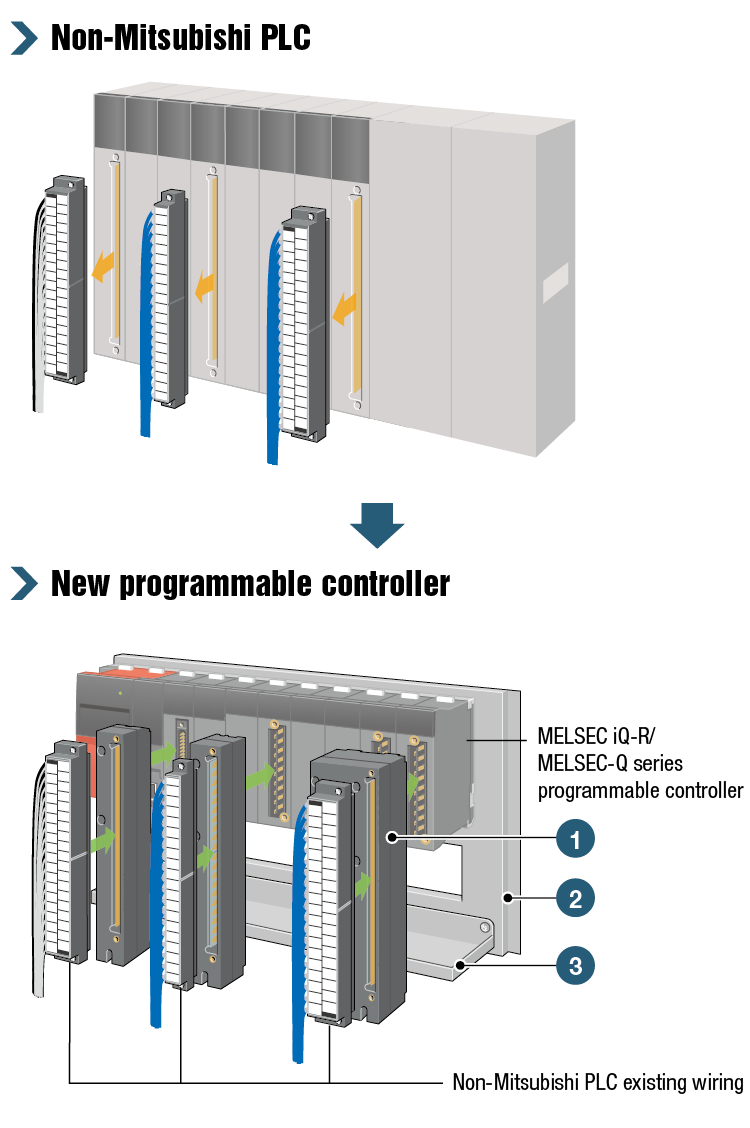

- 1)Conversion adapter

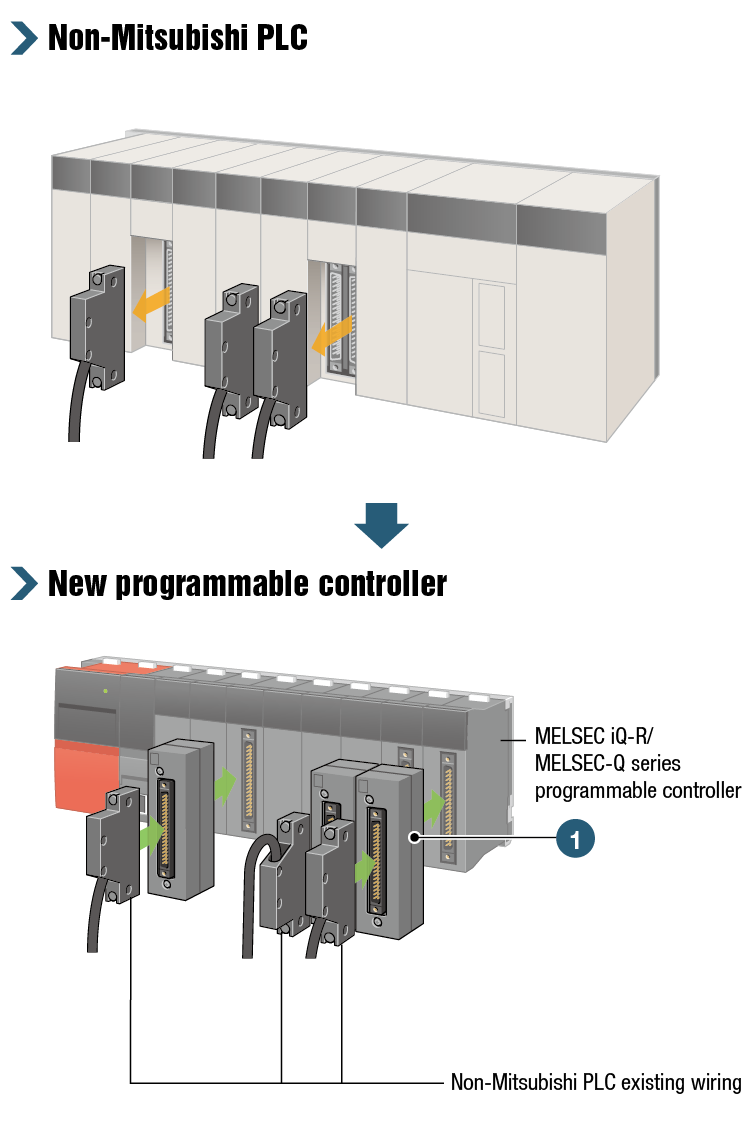

- Existing wiring for non-Mitsubishi PLCs can be used to replace equipment with MELSEC iQ-R/Q series programmable controllers.
-

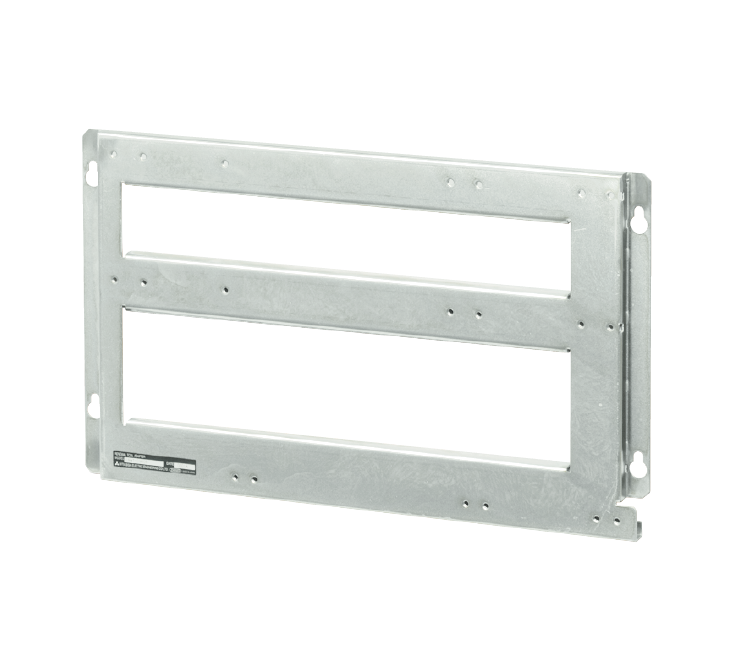

- 2) Base adapter
- An adapter to install a MELSEC iQ-R/Q replacement programmable controller base unit and a 3) conversion adapter support flange
The SYSMAC C series base unit installation holes can be used.
-

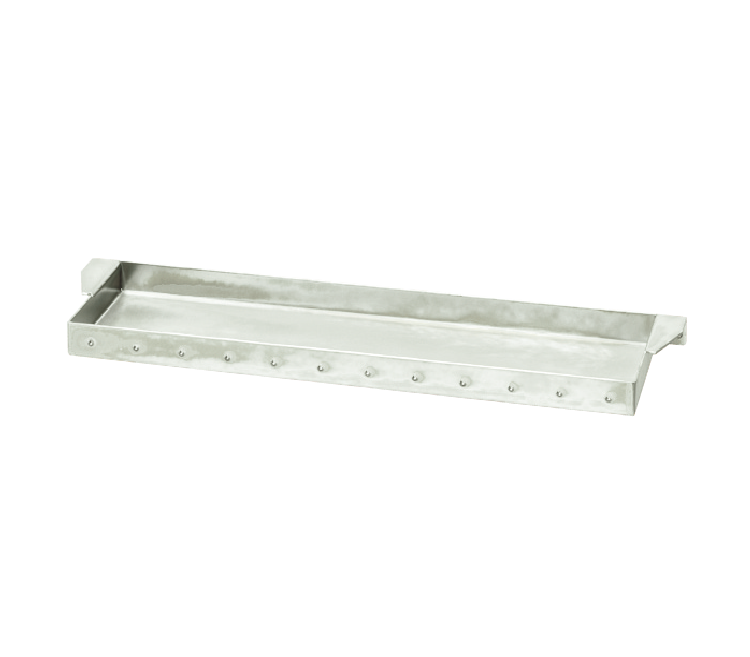

- 3) Conversion adapter support flange
- Secures the bottom of the conversion adapter.
-

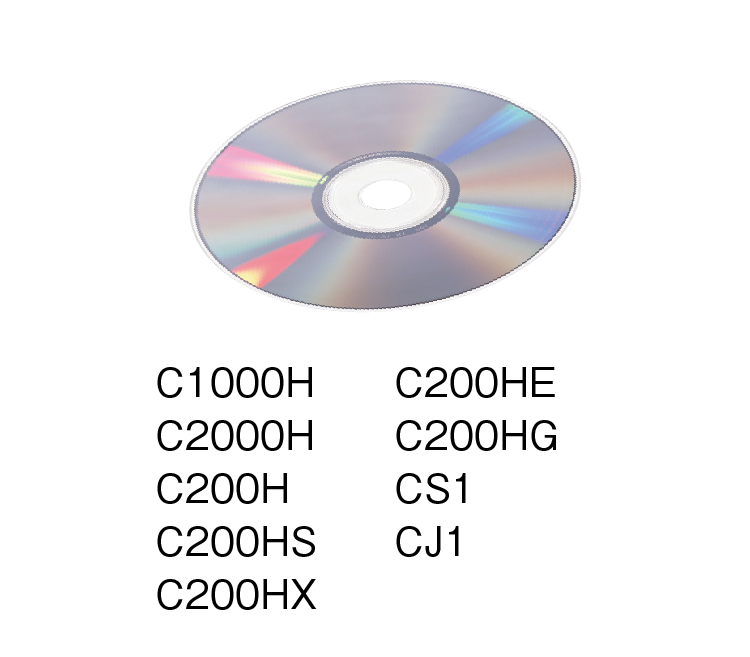

- 4) Program converter (SYSMAC C series)
- A tool to convert programs into MELSEC-Q series programs (GX Developer project)

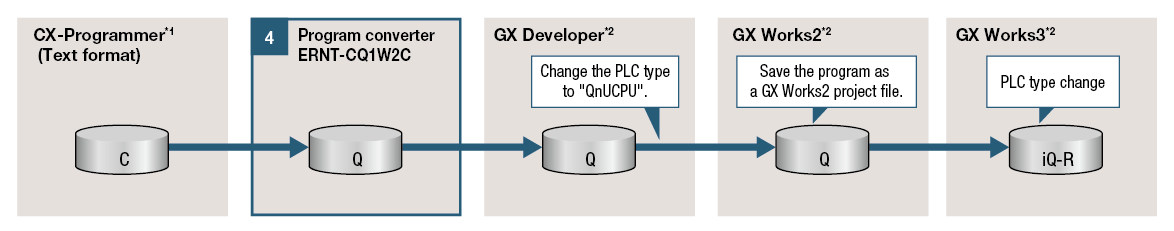

- Program Conversion Flow (OMRON SYSMAC C Series only)
- *1: Manufactured by OMRON Corporation
*2: Manufactured by Mitsubishi Electric
Replacement method with consideration to wiring interference and wiring area
Replacement with the MELSEC iQ-R series

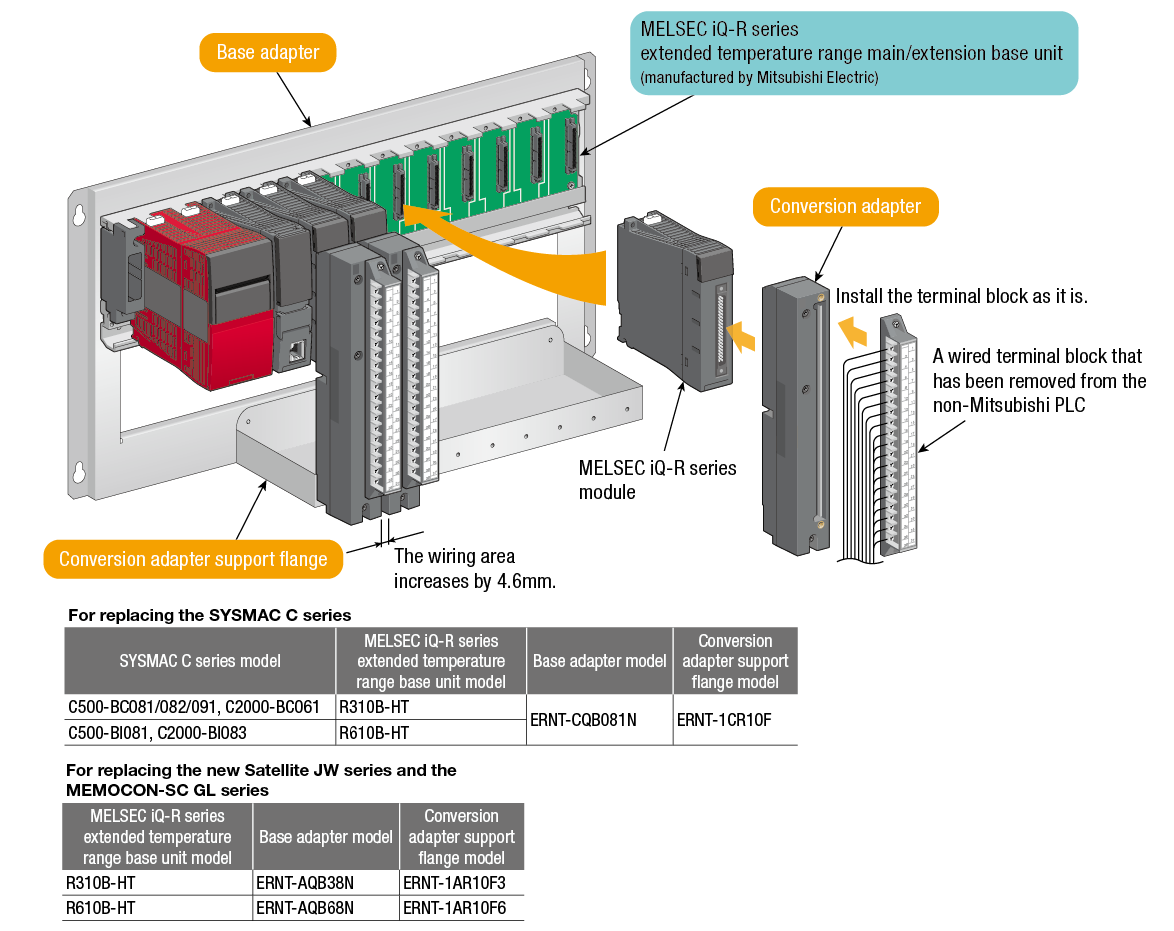

- Utilization of the Mitsubishi Electric extended temperature range base unit - Large type
- ● 2-slot type conversion adapters cannot be used.
● If the same base adapter and conversion adapter support flange for replacing the MELSEC-A series with the MELSEC iQ-R series are used, an extended temperature range base unit can be used to replace the JW series and the GL series.
(Note, however, that drilling of two additional installation holes may be required depending on the existing base unit.)

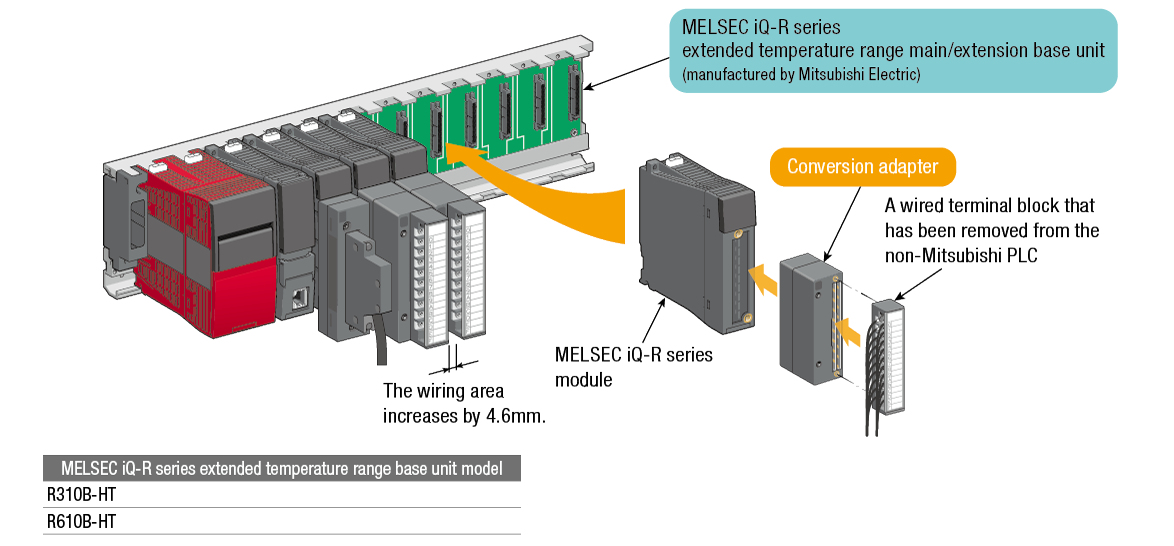

- Utilization of the Mitsubishi Electric extended temperature range base unit - Small type
Replacement with the MELSEC-Q series

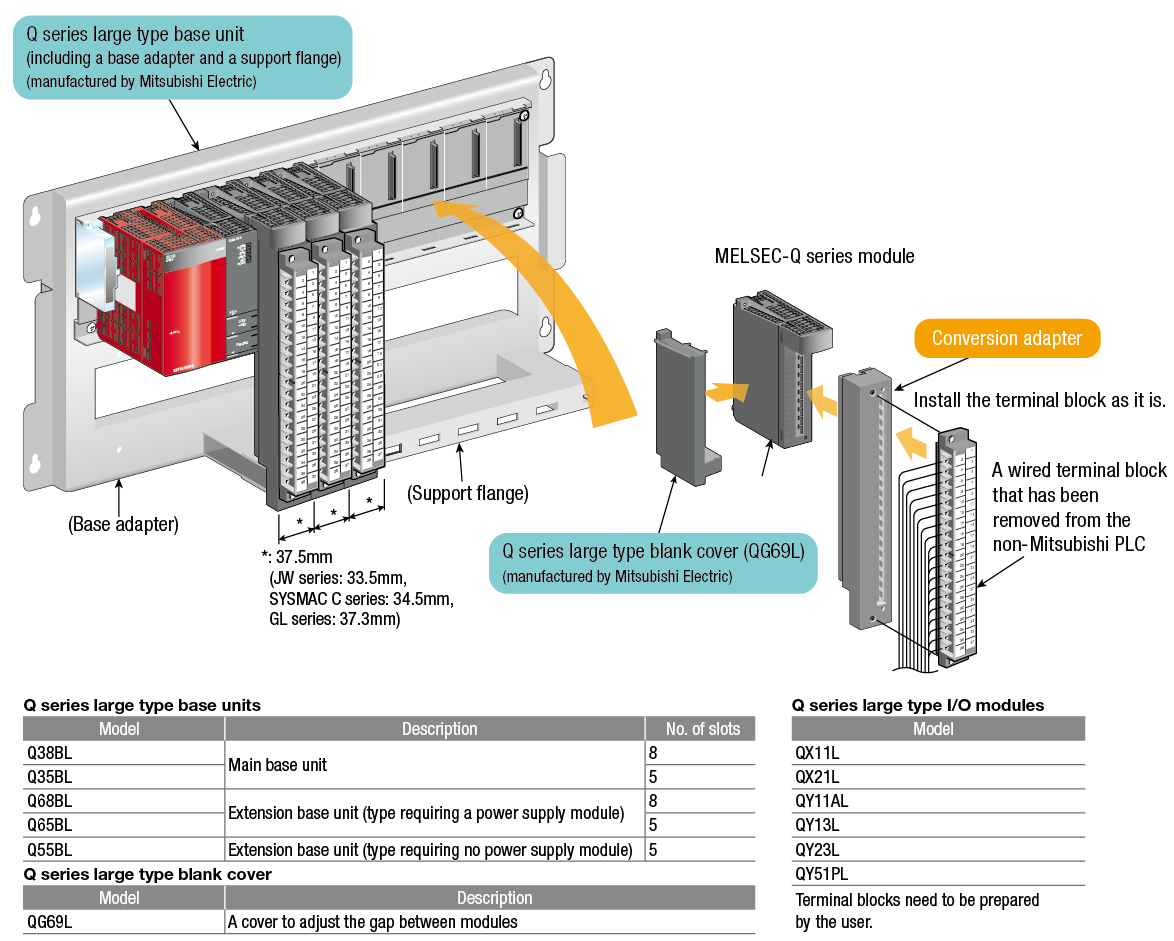

- Utilization of the Mitsubishi Electric Q series large type base unit - Large type
- ● 2-slot type conversion adapters cannot be used.

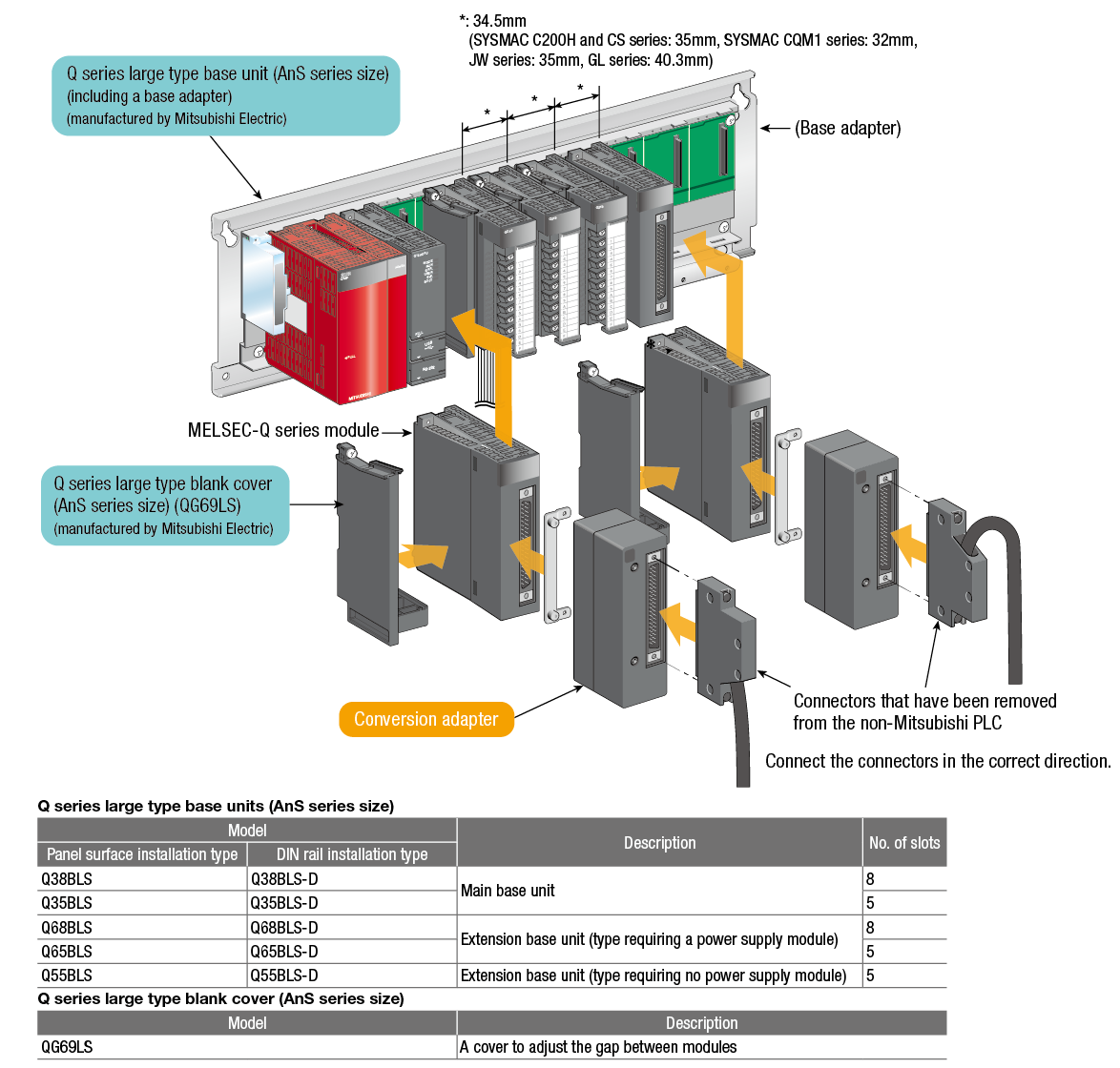

- Utilization of the Mitsubishi Electric Q series large type base unit (AnS series size) - Small type
Target series
| Before replacement | ▶ | Replacement | |
|---|---|---|---|
| Large type | SYSMAC C500 | MELSEC iQ-R MELSEC-Q |
|
| SYSMAC C1000H | |||
| SYSMAC C2000H | |||
| Small type | SYSMAC C200H | ||
| SYSMAC CS | |||
| SYSMAC CQM1 | |||
SYSMAC C series → MELSEC series program converter
Conversion target
SYSMAC CS1、CJ1、CJ2*1、C200H/HS/HX/HE/HG、C1000H、C2000H
*1：Program conversion is available after project files for the CJ2 series are converted into
SYSMAC C series → MELSEC iQ-R series
Large type ▶ C500, C1000H, C2000H
Selection chart
Precautions
Model list
| Model | Name | |
|---|---|---|
| ERNT-1CR121X221Y | Conversion adapter for input/output modules | 1-slot type |
| ERNT-1CR219Y411Y | ||
| ERNT-1CR215X218X | ||
| ERNT-1CR412Y414Y | ||
| ERNT-2CR216X218X | ||
| ERNT-2CR218Y | ||
| ERNT-1CR122X224Y | 2-slot type | |
| ERNT-1CR218Y | ||
| ERNT-CQB081N | Base adapters | |
| ERNT-CQB051N | ||
| ERNT-CQB031N | ||
| ERNT-1CR12F | Conversion adapter support flange | |
| ERNT-1CR10F | ||
| ERNT-1CR8F | ||
| ERNT-1AR5F | ||
| ERNT-CQ1W2C | Program converter | |
SYSMAC C series → MELSEC iQ-R series
Small type ▶ C200H series, CS series, CQM1 series
Selection chart
Base units manufactured by Mitsubishi Electric
Precautions
Model list
| Model | Name | |
|---|---|---|
| ERNT-2CR216X218X | Conversion adapter for input/output modules | 1-slot type |
| ERNT-2CR218Y | ||
| ERNT-CQ1W2C | Program converter | |
SYSMAC C series → MELSEC-Q series
Large type ▶ C500, C1000H, C2000H
Selection chart
Precautions
Model list
| Model | Name | ||
|---|---|---|---|
| ERNT-CQTX121 | Conversion adapter for input/output modules | 1-slot type | |
| ERNT-CQTX112213 | |||
| ERNT-CQTX215218 | |||
| ERNT-CQCX218501 | |||
| ERNT-CQCX114219 | |||
| ERNT-CQTY221 | |||
| ERNT-CQTY226 | |||
| ERNT-CQTY219217 | |||
| ERNT-CQTY411 | |||
| ERNT-CQTY412 | |||
| ERNT-CQTY414218 | |||
| ERNT-CQCY415 | |||
| ERNT-CQCY501 | |||
| ERNT-CQCY213 | |||
| ERNT-CQTX122 | 2-slot type | ||
| ERNT-CQTY224 | |||
| ERNT-CQTY225 | |||
| ERNT-CQTY218 | |||
| ERNT-QF12 | Conversion adapter support flange | ||
| ERNT-QF8 | |||
| ERNT-QF5 | |||
| ERNT-CQB081N | Base adapters | ||
| ERNT-CQB051N | |||
| ERNT-CQB031N | |||
| ERNT-CQ1W2C | Program converter | ||
Small type ▶ C200H series, CS series, CQM1 series
Selection chart
Base units manufactured by Mitsubishi Electric
Precautions
Model list
| Model | Name | |
|---|---|---|
| ERNT-2CQ216X218X | Conversion adapter for input/output modules | 1-slot type |
| ERNT-2CQ218Y | ||
| ERNT-CQ1W2C | Program converter | |
SSYSMAC C series →MELSEC series
Program converter (ERNT-CQ1W2C)
Model list
| Model | Name |
|---|---|
| ERNT-CQ1W2C | Program converter |
Target series
| Before replacement | ▶ | Replacement | |
|---|---|---|---|
| Large type | JW50H | MELSEC iQ-R MELSEC-Q |
|
| HW70H | |||
| JW100H | |||
| Small type | JW300 | ||
| JW30H | |||
| JW20H | |||
New satellite JW series → MELSEC iQ-R series
Large type ▶ JW50H/70H/100H
Selection chart (Conversion adapter)
Replacement using a base adapter
Base adapters
Precautions
Model list
| Model | Name | |
|---|---|---|
| ERNT-1JR11N13S | Conversion adapter for input/output modules | 1-slot type |
| ERNT-1JR12S | ||
| ERNT-1JR32N34N | ||
| ERNT-1JR32S | ||
| ERNT-2JR234N264N | ||
| ERNT-2JR232S262S | ||
| ERNT-1JR31N34S | 2-slot type | |
| ERNT-1JR33S | ||
| ERNT-1AR12F | Conversion adapter support flange | |
| ERNT-1AR8F | ||
| ERNT-1AR5F | ||
| ERNT-1AR10F3 | ||
| ERNT-1AR10F6 | ||
| ERNT-AQB38N | Base adapters | |
| ERNT-1JR613B | ||
New satellite JW series → MELSEC iQ-R series
Small type ▶ JW300/30H/20H
Selection chart (Conversion adapter)
Base adapters
Precautions
Model list
| Model | Name | |
|---|---|---|
| ERNT-2JQ210NS | Conversion adapter for input/output modules | 1-slot type |
| ERNT-2JQ212S | ||
| ERNT-2JR234N264N | ||
| ERNT-2JR232S262S | ||
| ERNT-2JR38KB | Base adapters | |
| ERNT-2JR36KB38ZB | ||
| ERNT-2JR34ZB | ||
| ERNT-2JR34KB | ||
| ERNT-2JR318KB | ||
| ERNT-2JR316KB36ZB | ||
| ERNT-2JR314KB | ||
New satellite JW series → MELSEC-Q series
Large type ▶ JW50H/70H/100H
Selection chart (Conversion adapter)
Replacement using a base adapter or a Q series large type base unit manufactured by Mitsubishi Electric
Base adapters
Precautions
Model list
| Model | Name | |
|---|---|---|
| ERNT-1JQ11N12N | Conversion adapter for input/output modules | 1-slot type |
| ERNT-1JQ32N34N | ||
| ERNT-1JQ64NC | ||
| ERNT-1JQ13S | ||
| ERNT-1JQ12S | ||
| ERNT-1JQ32S | ||
| ERNT-1JQ32SC62SC | ||
| ERNT-1JQ31N34S | 2-slot type | |
| ERNT-1JQ33S | ||
| ERNT-AQF12 | Conversion adapter support flange | |
| ERNT-AQF8 | ||
| ERNT-AQF5 | ||
| ERNT-AQF3 | ||
| ERNT-AQB38N | Base adapters | |
| ERNT-1JR613B | ||
New satellite JW series → MELSEC-Q series
Small type ▶ JW300/30H/20H
Selection chart (Conversion adapter)
Base adapters
Precautions
Model list
| Model | Name | |
|---|---|---|
| ERNT-2JQ210NS | Conversion adapter for input/output modules | 1-slot type |
| ERNT-2JQ212S | ||
| ERNT-2JQ234N264N | ||
| ERNT-2JQ232S262S | ||
| ERNT-2JR38KB | Base adapters | |
| ERNT-2JR36KB38ZB | ||
| ERNT-2JR34ZB | ||
| ERNT-2JR34KB | ||
| ERNT-2JR318KB | ||
| ERNT-2JR316KB36ZB | ||
| ERNT-2JR314KB | ||
Target series
| Before replacement | ▶ | Replacement | |
|---|---|---|---|
| Large type | 2000 series I/O | MELSEC iQ-R MELSEC-Q |
|
| Small type | 120 series I/O | ||
MEMOCON-SC GL series → MELSEC iQ-R series
Large type ▶ 2000 series I/O
Selection chart
Replacement using a base adapter
Base adapters
Precautions
Model list
| Model | Name | |
|---|---|---|
| ERNT-1Y2R501500 | Conversion adapter for input/output modules | 1-slot type |
| ERNT-1JR32N34N | ||
| ERNT-2Y2R615625 | ||
| ERNT-1Y2R600 | ||
| ERNT-1Y2R602606 | ||
| ERNT-2CR218Y | ||
| ERNT-1Y2R505 | 2-slot type | |
| ERNT-1JR33S | ||
| ERNT-1JR31N34S | ||
| ERNT-1Y2R904914 | ||
| ERNT-1AR12F | Conversion adapter support flange | |
| ERNT-1AR8F | ||
| ERNT-1AR5F | ||
| ERNT-1AR10F3 | ||
| ERNT-1AR10F6 | ||
MEMOCON-SC GL series → MELSEC iQ-R series
Small type ▶ 120 series I/O
Selection chart
Base units manufactured by Mitsubishi Electric
Precautions
Model list
| Model | Name | |
|---|---|---|
| ERNT-2YR35400 | 120 series I/O | 1-slot type |
| ERNT-2YR36400 | ||
| ERNT-2YR35410 | ||
| ERNT-2YR36410 | ||
MEMOCON-SC GL series → MELSEC-Q series
Large type ▶ 2000 series I/O
Selection chart
Replacement using a base adapter or a Q series large type base unit manufactured by Mitsubishi Electric
Base adapters
Precautions
Model list
| Model | Name | |
|---|---|---|
| ERNT-1Y2Q501 | Conversion adapter for input/output modules | 1-slot type |
| ERNT-1Y2Q601611 | ||
| ERNT-1JQ32N34N | ||
| ERNT-1Y2Q615625 | ||
| ERNT-1Y2Q500 | ||
| ERNT-1Y2Q600 | ||
| ERNT-1Y2Q602606 | ||
| ERNT-CQCY213 | ||
| ERNT-1Y2Q505 | 2-slot type | |
| ERNT-1JQ33S | ||
| ERNT-1JQ31N34S | ||
| ERNT-1Y2Q904914 | ||
| ERNT-AQF12 | Conversion adapter support flange | |
| ERNT-AQF8 | ||
| ERNT-AQF5 | ||
| ERNT-AQF3 | ||
MEMOCON-SC GL series → MELSEC-Q series
Small type ▶ 120 series I/O
Selection chart
Base units manufactured by Mitsubishi Electric
Precautions
Model list
| Model | Name | |
|---|---|---|
| ERNT-2YQ35400 | Conversion adapter for input/output modules | 1-slot type |
| ERNT-2YQ35410 | ||
| ERNT-2YQ36400 | ||
| ERNT-2YQ36410 | ||
Target series
| Before replacement | ▶ | Replacement | |
|---|---|---|---|
| Small type | TOYOPUC-PC10G | MELSEC iQ-R | |
| TOYOPUC-PC3J | |||
TOYOPUC series → MELSEC-Q series
Small type ▶ TOYOPUC-PC10G/PC3J
Selection chart
| Befor | ▶ | After | ||||
|---|---|---|---|---|---|---|
| TOYOPUC-PC10G/3J series | MELSEC iQ-R series | Upgrade tool product (Conversion adapter) |
||||
| Type | Model | Shape | Model | Shape | Model | |
| Input | THK-2749 | 19-point screw terminal block |
RX10 | 18-point screw terminal block |
ERNT-2TR27X27Y | |
| THK-2750 | RX40C7 | |||||
| Output | THK-2751 | RY2056 | ||||
| THK-2795 | ||||||
| THK-5040 | ||||||
| THK-2752 | RY10R2 | |||||
| THK-2754(*1) | RY40PT5P | |||||
| THK-2791(*1,2) | ||||||
| Output | THK-2753(*1) | 19-point screw terminal block |
RY40NT5P | 18-point screw terminal block |
ERNT-2TR27Y29Y | |
| THK-2790(*1,2) | ||||||
| THK-2931 | RY18R2A | |||||
Model list
| Model | Name | |
|---|---|---|
| ERNT-2TR27X27Y | Conversion adapters for input or output modules | 1 Slot type |
| ERNT-2TR27Y29Y | ||
