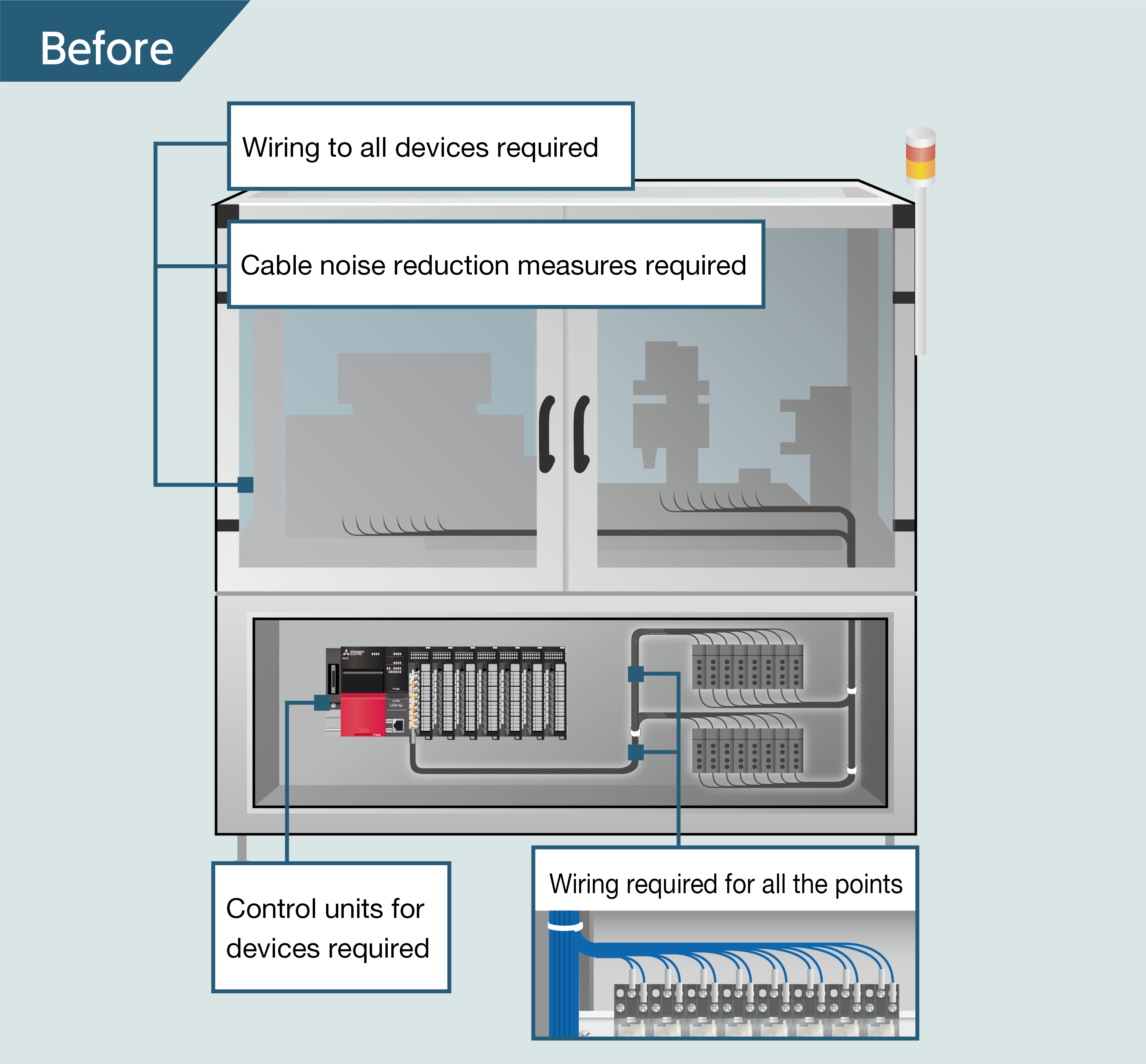

Before

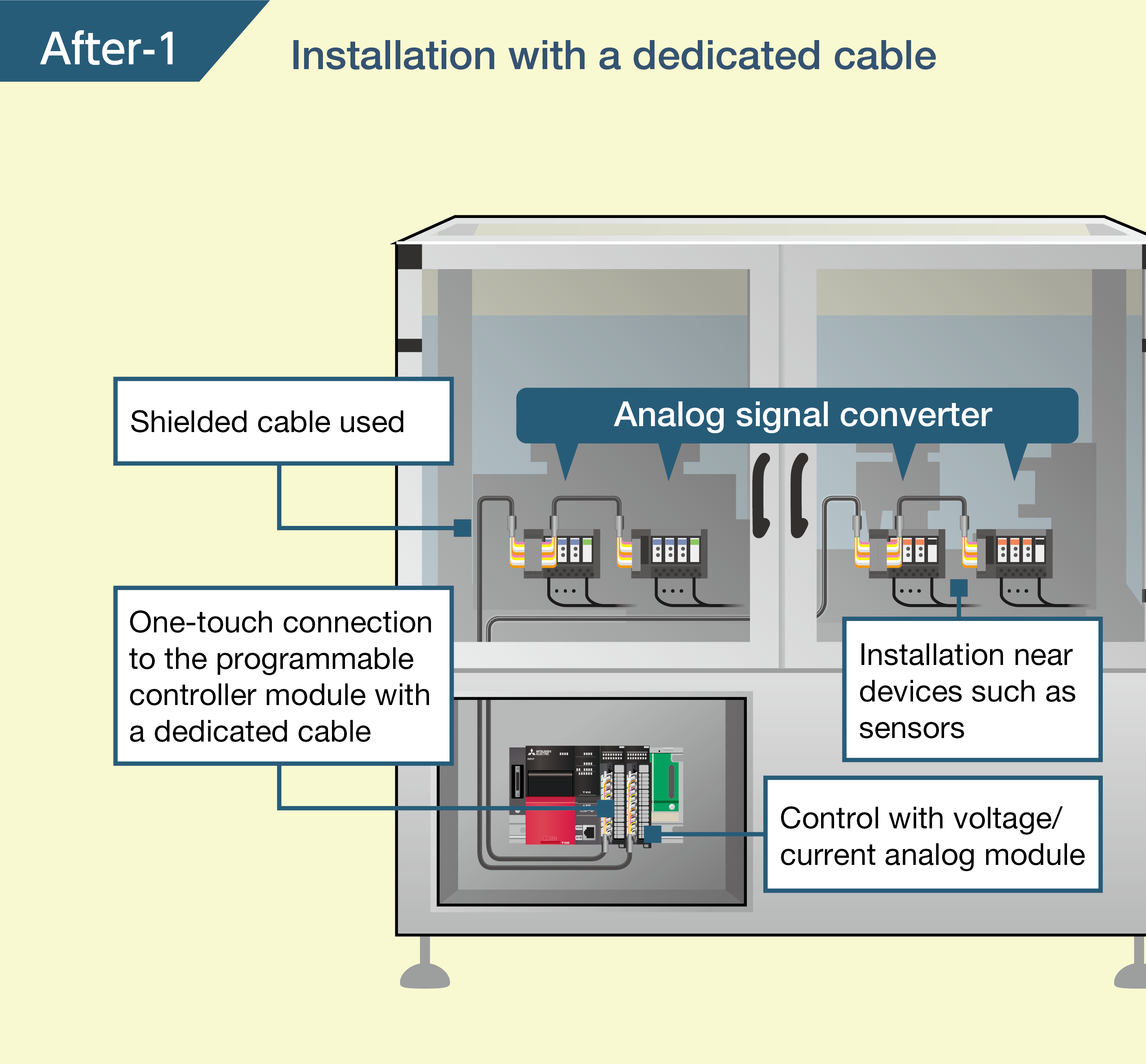

After-1

Dedicated cable for "device optimization" and "wire saving"

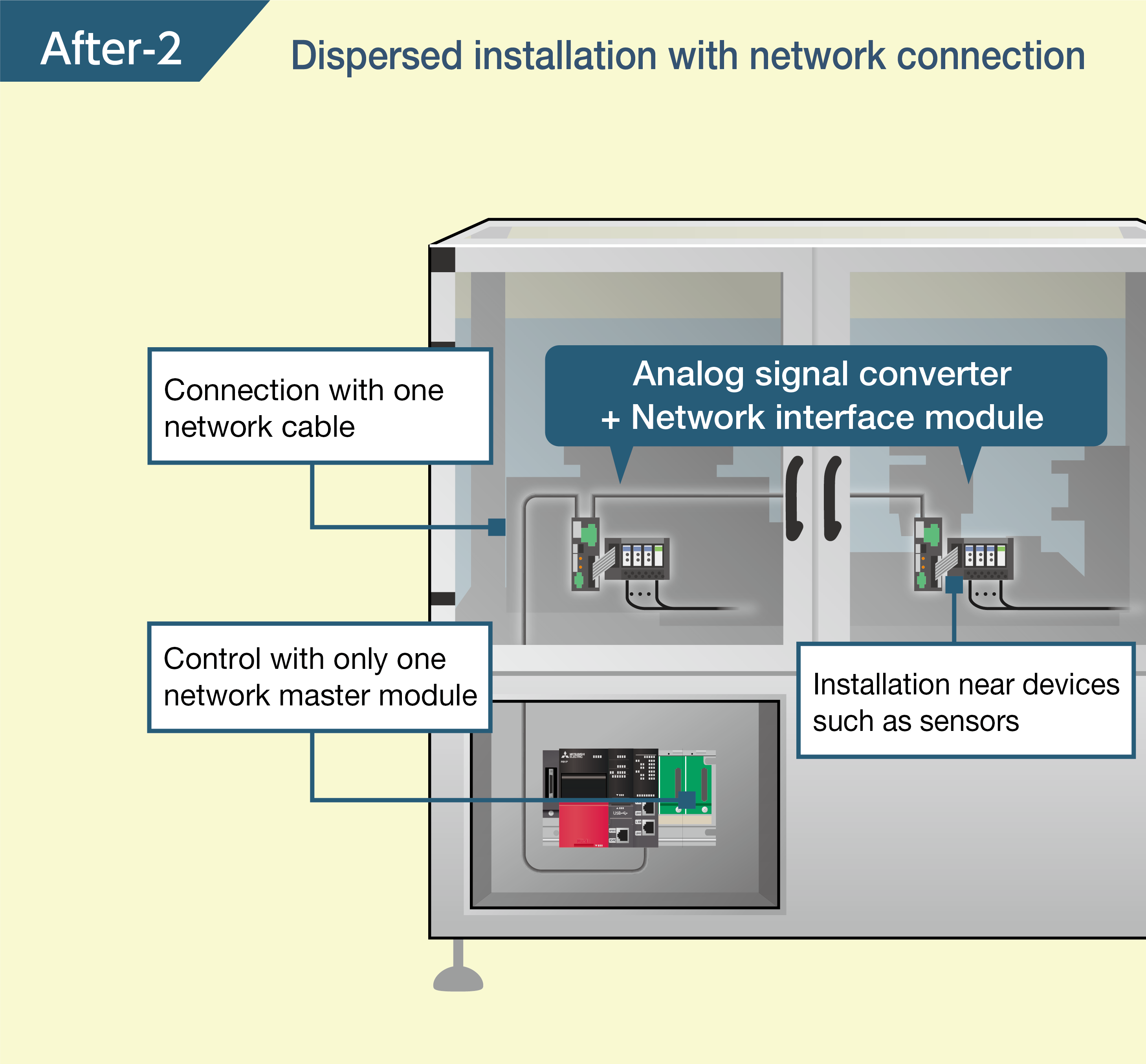

After-2

Network interface module for "device optimization" and "wire saving"

Optimum installation
and easy wiring Selection of the control method per point Visualization of various
analog signals

Optimum installation and easy wiring

Since modules can be individually specified, systems can be configured with a minimum number of points. A programmable controller also can be easily connected using the dedicated cable.

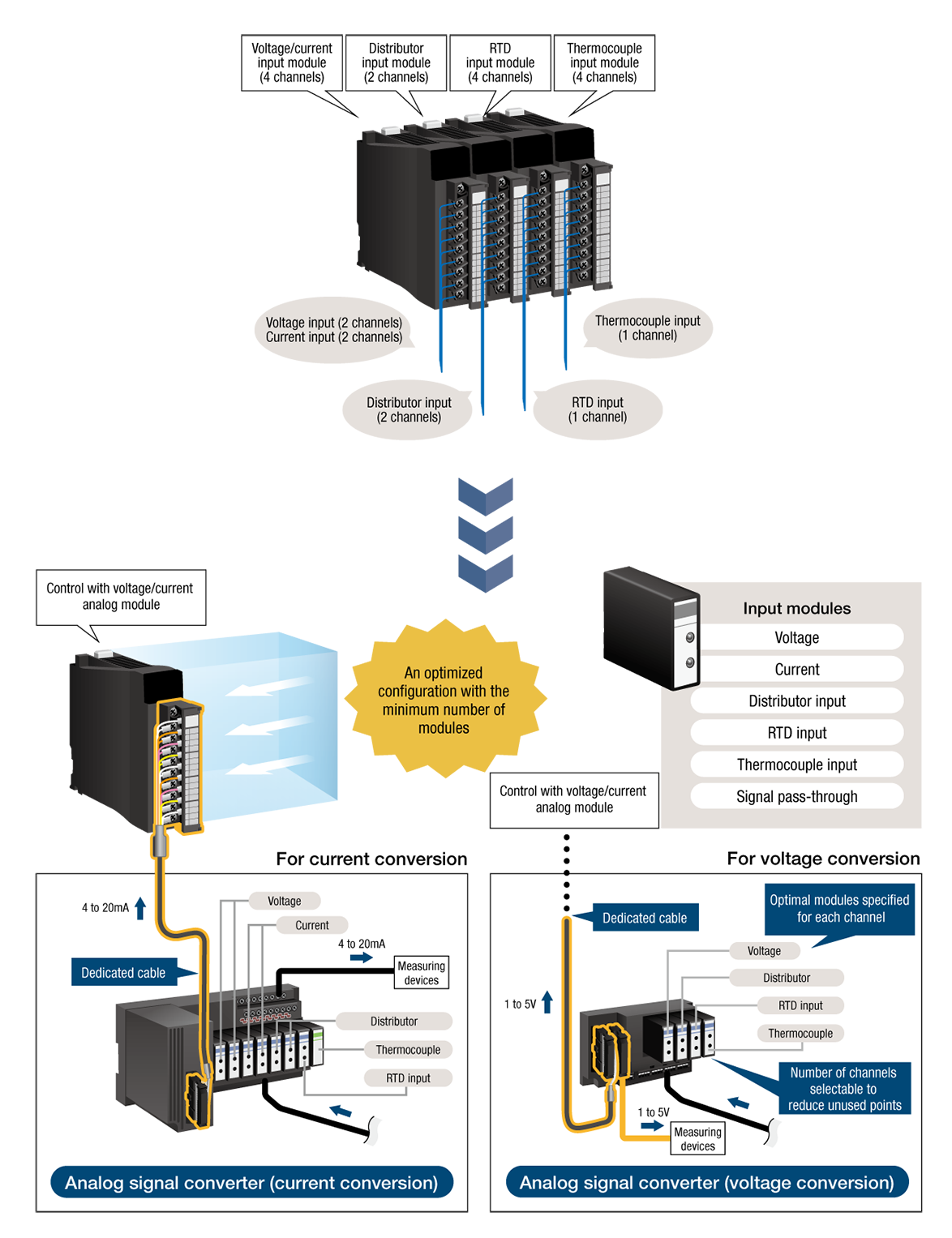

Input type

Configuration example : Voltage, current, distributor, RTD, thermocouple

Converting signals into analog signals that can be handled by the connected device: Programmable controller can be unified in current 4 to 20mA or voltage 1 to 5V for conversion to a signal that matches device to be turned connection.; Unifying the modules on the programmable controller side reduces the types of modules for maintenance.; [Current conversion]
Measurements outside the panel can be connected simultaneously by 2 outputs.; [Voltage conversion]
Suitable for use inside the panel.

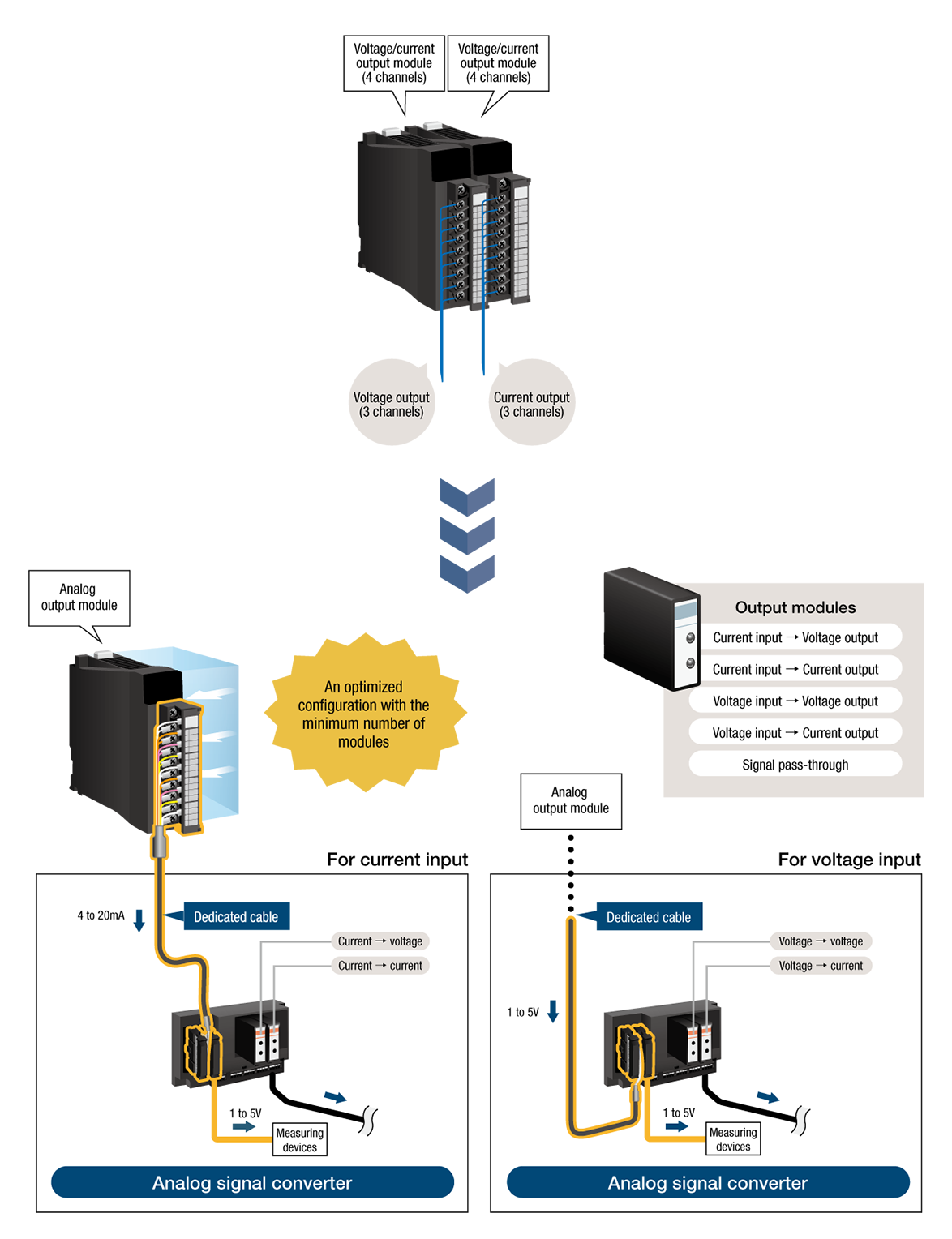

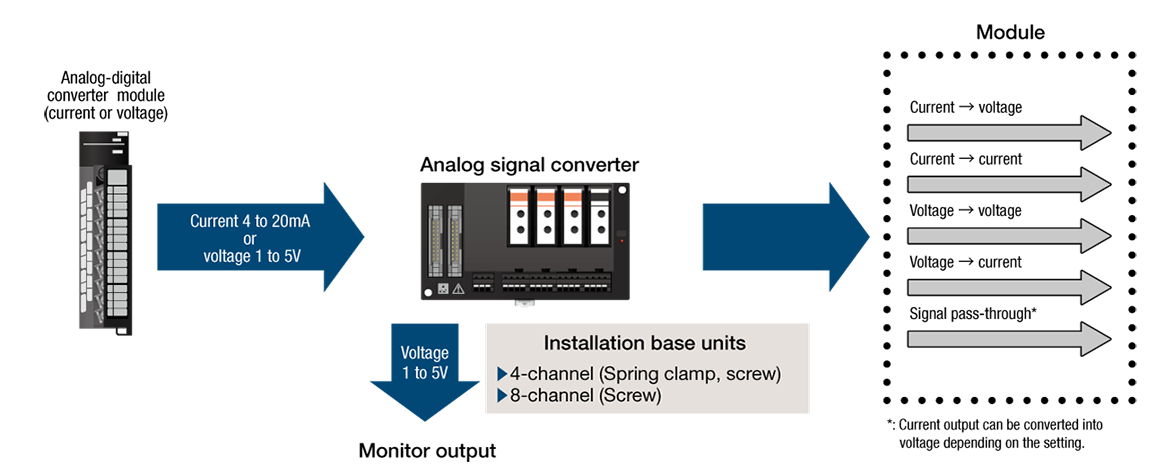

Output type

Configuration example : voltage and current output

Converting signals into analog signals that can be handled by the connected device: Programmable controller can be unified in current 4 to 20mA or voltage 1 to 5V for conversion to a signal that matches device to be turned connection.; Unifying the modules on the programmable controller side reduces the types of modules for maintenance.; Analog-digital converter module (current or voltage).

Selecting an installation base unit suited for the number of channels

A minimum required configuration is achieved by selecting an installation base unit type suited to the number of channels and an installation method suitable for the system.

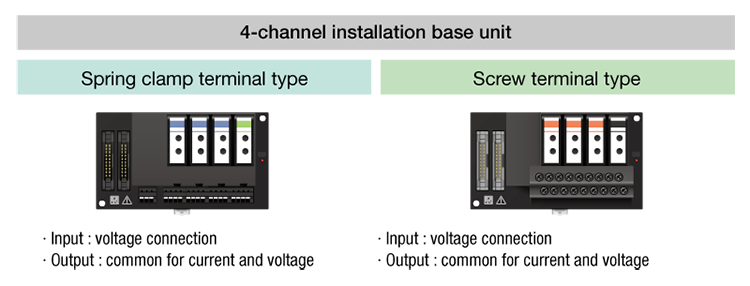

4-channel installation base unit

16-point spring clamp terminal type of digital signal converters (terminal module)

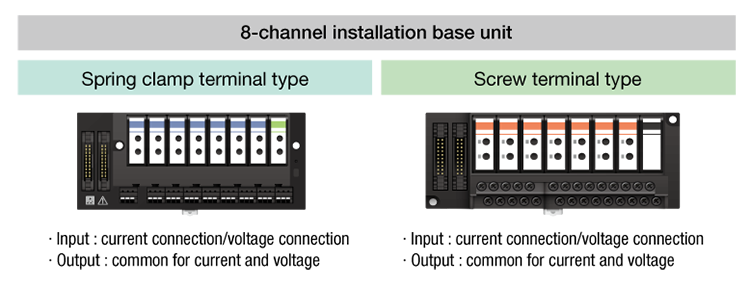

8-channel installation base unit

16-point spring clamp terminal type of digital signal converters (terminal module)

• Dispersed installation is possible when the total number of channels is 8 or less according to system configuration.

• The spring clamp terminal type product reduces wiring time and maintenance time because screws do not need be tightened.

Selection of the control method per point

The control method can be selected and mixed per point using module type.

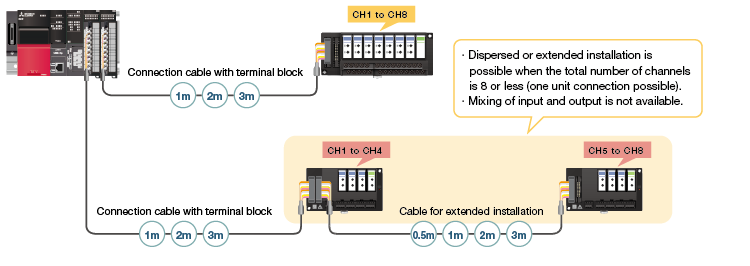

Distributed installation to meet the system needs

Distributed installation using dedicated cables: Dedicated cables can be used to connect the programmable controller and analog signal converters.
Distributed installation of analog signal converters near the connected devices such as sensors is possible within 8 channels in total.

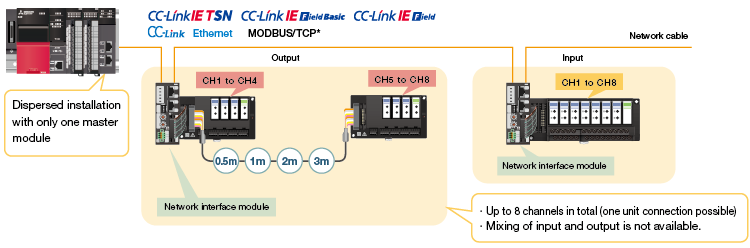

Distributed installation using network interface modules

Distributed installation using dedicated cables: Distributed installation is also possible by connecting the network master module of the programmable controller and the network interface module using a network cable.
Using just one network cable simplifies the wiring between the control panel and devices/relay box and the wiring for additional device installation.

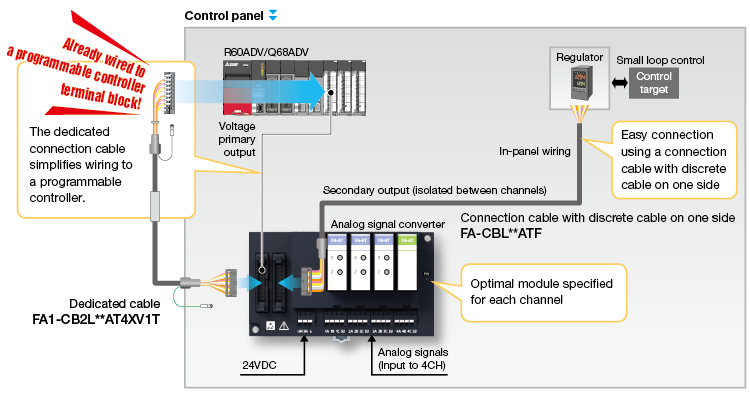

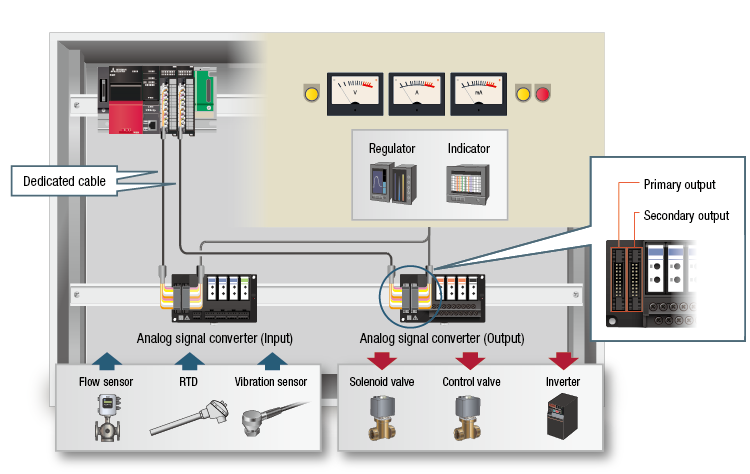

Achieving wire saving with dedicated cables and the secondary output function

Configuration example: Time and costs for wiring are reduced significantly by using dedicated cables for the programmable controller connection and by using the secondary output function for the regulator/indicator connection.
• Secondary output function [Input]
　The same signal as the analog signal (voltage) input to the programmable controller is output from the secondary output terminal.
• Secondary output function [Output]
　The same signal as the analog signal (voltage or current) output from the programmable controller is output from the secondary output terminal.

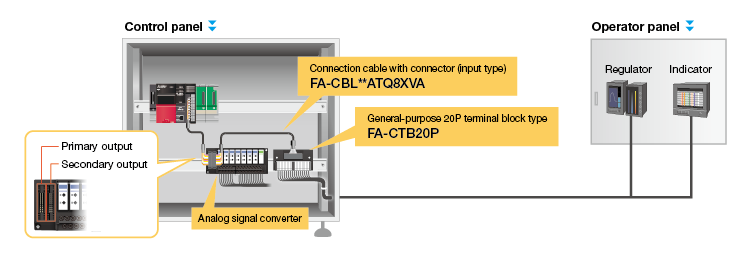

Secondary output via terminal block: Converting the secondary output connector into a relay terminal block facilitates wiring to distributed devices such as regulators and indicators.

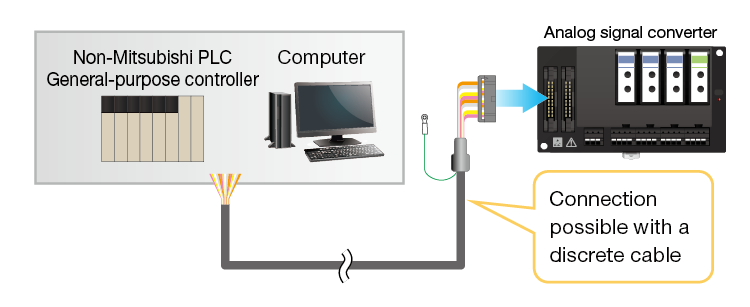

Connecting with a non-Mitsubishi PLC and computer

: Shielded cables with discrete cable on one side enable connection with any programmable controller regardless of the manufacturer.

Visualization of various analog signals

Collecting and controlling analog signals

: An optimal module can be mounted for each channel, and the secondary output function enables easy wiring with devices such as regulators. As a result, data of the devices such as sensors can be easily visualized.

Noise immunity

Isolation between channels

The circuit is isolated to prevent each channel from being affected by other channels (analog signals)
(except for signal pass-through modules).
Shielded cables

For the cable connecting the programmable controller and the installation base unit, a terminal block or shielded cable is used on the programmable controller side.

For the cable connecting the installation base units, a shielded cable is used.

Easy startup and maintenance

Module replacement

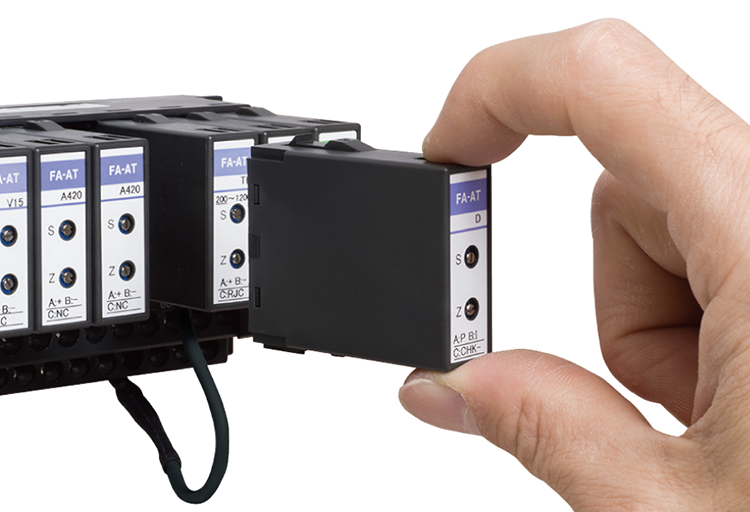

Tools such as screwdrivers are not required for module replacement.

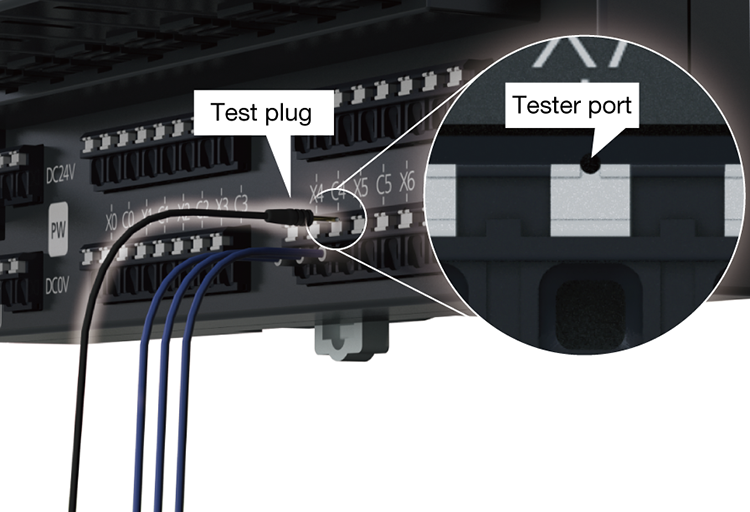

Continuity check using a tester port

The time required for continuity check can be reduced because the spring clamp terminal type product has a tester port.

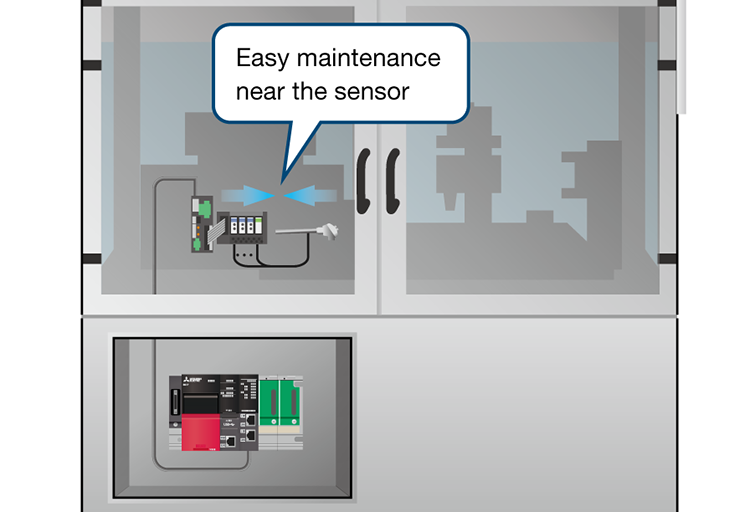

Installation near the connected devices

Installing the product near devices such as sensors improves the efficiency in wiring checks during maintenance.

Related products: Small-scale IoT (network interface modules)

Click here for more information

Model list

Analog signal converter (input type)

Model	Type
FA1-AT1B4X1TE	4-channel installation base unit	Spring clamp terminal block, module mixing possible
FA1-AT1B4X1TB	4-channel installation base unit	Screw terminal block (M3), module mixing possible
FA1-AT1B8X1TE	8-channel installation base unit	Spring clamp terminal block, module mixing possible
FA-ATB8XTB		Screw terminal block (M3), module mixing possible
FA-ATKB8XTB		With connector for adapter
FA-ATKAA8XM	Adapter	Voltage to current conversion adapter
FA-ATSVM1XV05	Voltage module	0 to 5V
FA-ATSVM1XV15		1 to 5V
FA-ATSVM1XV1010		-10 to 10V
FA-ATSVM1XA420	Current module	4 to 20mA
FA-ATSVM1XD	Distributor module	4 to 20mA
FA-ATSVM1XRJPT	RTD module	JPt100, -200 to 600°C
FA-ATSVM1XRPT		Pt100, -200 to 650°C
FA-ATSVM1XRPT0010		Pt100, 0 to 100°C
FA-ATSVM1XRPT0020		Pt100, 0 to 200°C
FA-ATSVM1XTB	Thermocouple temperature module	Type B thermocouple, +600 to +1700°C
FA-ATSVM1XTS		Type S thermocouple, 0 to +1600°C
FA-ATSVM1XTE		Type E thermocouple, -200 to +900°C
FA-ATSVM1XTT		Type T thermocouple, -200 to +350°C
FA-ATSVM1XTR		Type R thermocouple, 0 to +1600°C
FA-ATSVM1XTK		Type K thermocouple, -200 to +1200°C
FA-ATSVM1XTK0040		Type K thermocouple, 0 to 400°C
FA-ATSVM1XTK0060		Type K thermocouple, 0 to 600°C
FA-ATSVM1XTK0080		Type K thermocouple, 0 to 800°C
FA-ATSVM1XTJ		Type J thermocouple, -40 to +750°C
FA-ATSVM1XTN		Type N thermocouple, -200 to 1250°C
FA-ATFTMXY	Pass-through module	Pass-through module for non-isolated signals*
FA-ATNDM5	Dummy module	For dust protection (quantity: 5)

* The current is converted to voltage.

Analog signal converter (output type)

Model	Type
FA1-AT1B4Y1TE	4-channel installation base unit	Spring clamp terminal block, module mixing possible
FA1-AT1B4Y1TB	4-channel installation base unit	Screw terminal block (M3), module mixing possible
FA1-AT1B8Y1TE	8-channel installation base unit	Spring clamp terminal block, module mixing possible
FA-ATB8YTB	8-channel installation base unit	Screw terminal block (M3), module mixing possible
FA-ATSAM1YV05	Current to voltage module	0 to 5V
FA-ATSAM1YV15		1 to 5V
FA-ATSAM1YV010		0 to 10V
FA-ATSAM1YV1010		-10 to 10V
FA-ATSAM1YA020	Current to current module	0 to 20mA
FA-ATSAM1YA420	Current to current module	4 to 20mA
FA-ATSVM1YV05	Voltage to voltage module	0 to 5V
FA-ATSVM1YV15		1 to 5V
FA-ATSVM1YV010		0 to 10V
FA-ATSVM1YV1010		-10 to 10V
FA-ATSVM1YA020	Voltage to current module	0 to 20mA
FA-ATSVM1YA420	Voltage to current module	4 to 20mA
FA-ATFTMXY	Pass-through module	Pass-through module for non-isolated signals*
FA-ATNDM5	Dummy module	For dust protection (quantity: 5)

* The current is converted to voltage.

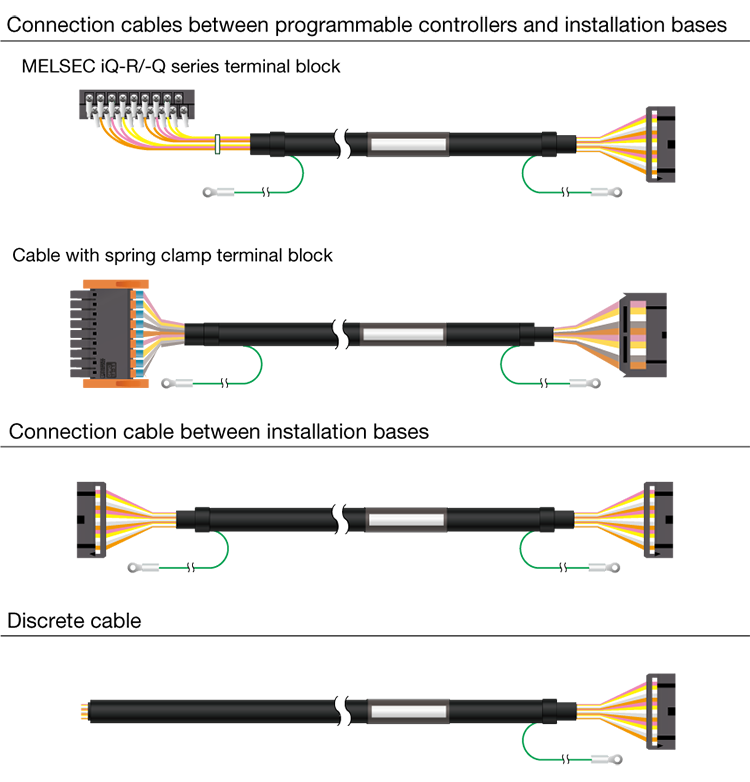

Connection cables
